40x4 Parallel LCD Display, Yellow Backlight


40x4 Parallel LCD Display, Yellow Backlight
Stock Number: 35915 OP
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$19.95


Availibilty: In Stock   Units: 1
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

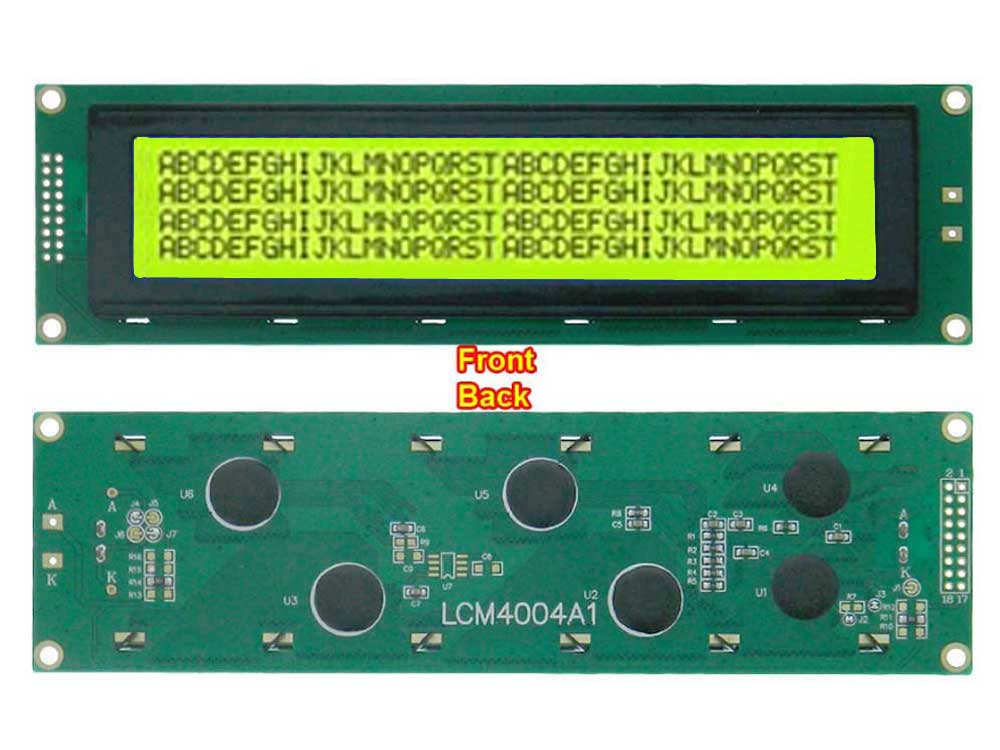

P/N: LCM4004A1
Resolution: 4 Lines X 40 Character
Char. Size: 2.78 X 4.89mm
Dot Size: .50mm X .55mm
Specifications/Features: 5 X 7 + cursor with Blue characters on Yellow/Green background. (Yellow-Green STN Transflective)
Logic Power: 5VDC
4.2V LED backlite.
Dot Matrix display with built in SPLC780 controller (equivalent HD44780) & drivers. 4/8 Bit Parallel interface.Requires single +5V for logic and LCD drive.
Yellow/Green LED Backlight:
4.2V ~500mA Powered Separately.
L: 7-1/2: H: 2-1/8" T: 1/2" WT: 0.3


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Works fine but datasheet is wrong 8/7/2019
The datasheet for this lists the Data lines 0-7 backwards. The datasheet for the blue version of this has the correct pinout: https://www.mpja.com/40x4-Parallel-LCD-Display-White/productinfo/35053+OP/
