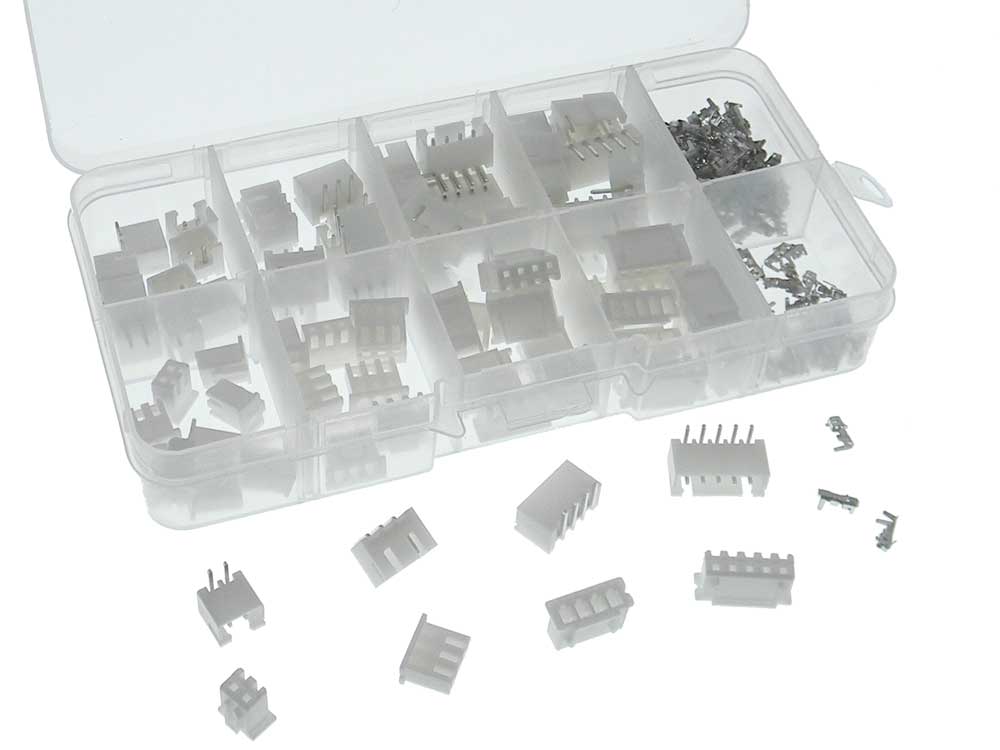

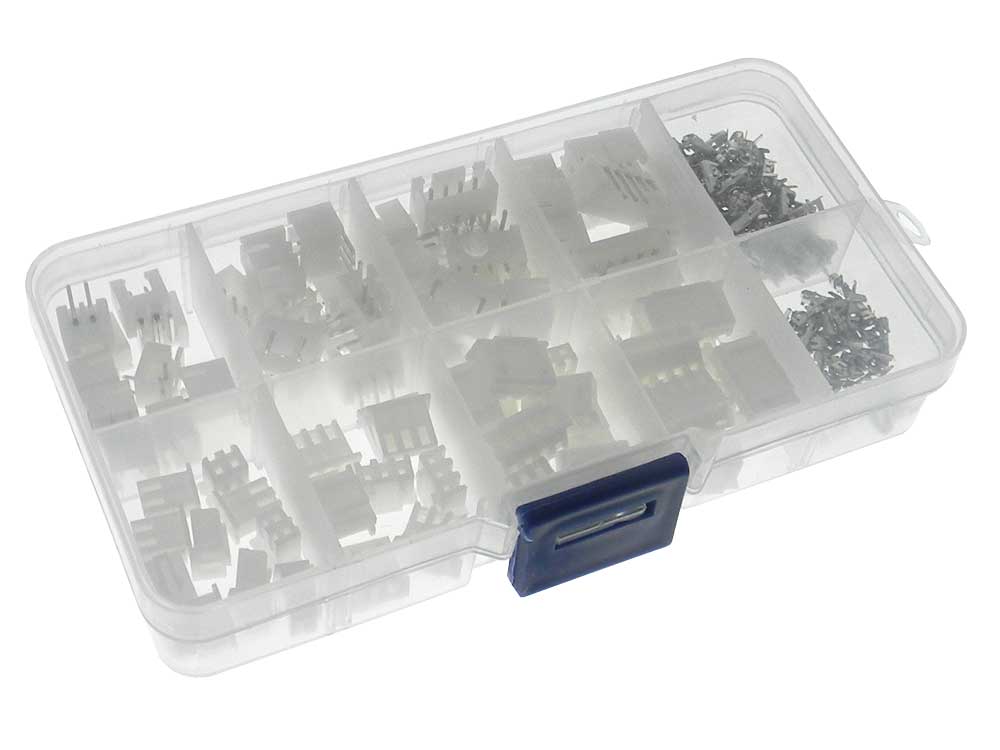

Kit of JST XH type connectors in a plastic storage box with latching lid.
Containins 40 Pairs (40 Male Right Angle Headers + 40 Female Housings) 2.54mm XH connectors plus crimp pins for housings.
Wire Range : AWG#24~#30
Current Rating: 1A AC, DC
Voltage Rating: 250V AC, DC
Temperature Range: -25°C ~ +85°C
Insulation Resistance: 100M Ohms Min.
Withstanding Voltage: 1000V AC/ 1minute

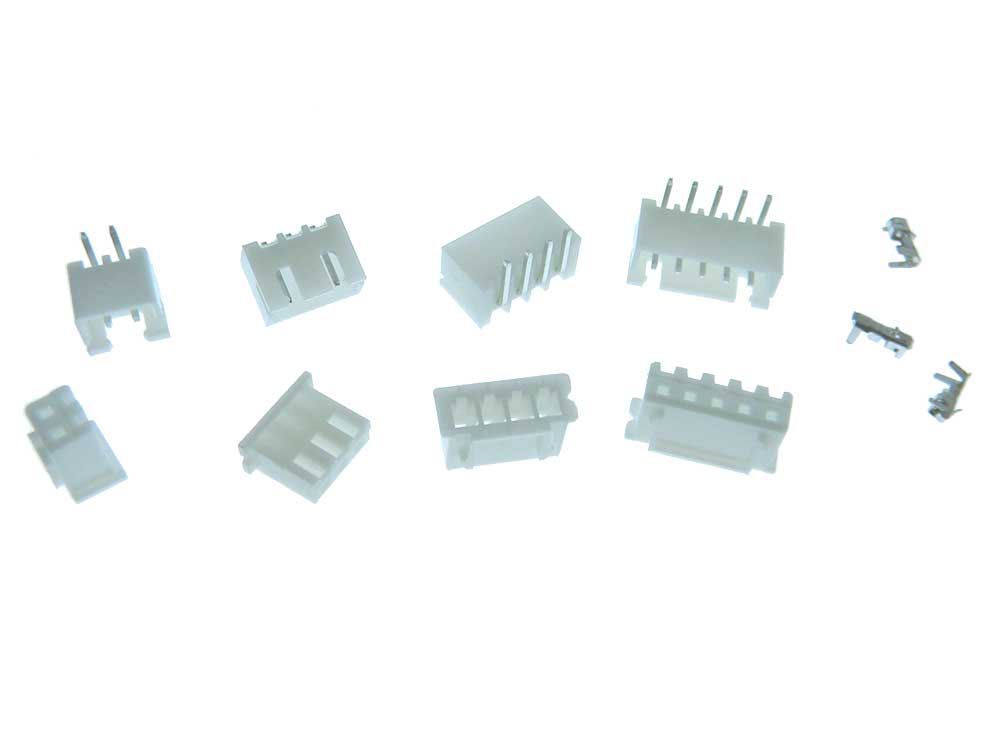

10 Ps: 2 Pin Housing Female XHP-02
10 Pcs: 3 Pin Housing Female XHP-03
10 Pcs: 4 Pin Housing Female XHP-04
10 Pcs: 5 Pin Housing Female XHP-04
150 Pcs: Female Crimp sockets: (allow up to 5% deviation)
Right Angle Male Pin Header
10 Pcs: 2Pin Male Header S2B-XH-A
10 Pcs: 3Pin Male Header S3B-XH-A
10 Pcs: 4 Pin Male Header S4B-XH-A
10 Pcs: 5 Pin Male Header S5B-XH-A WT: .12
