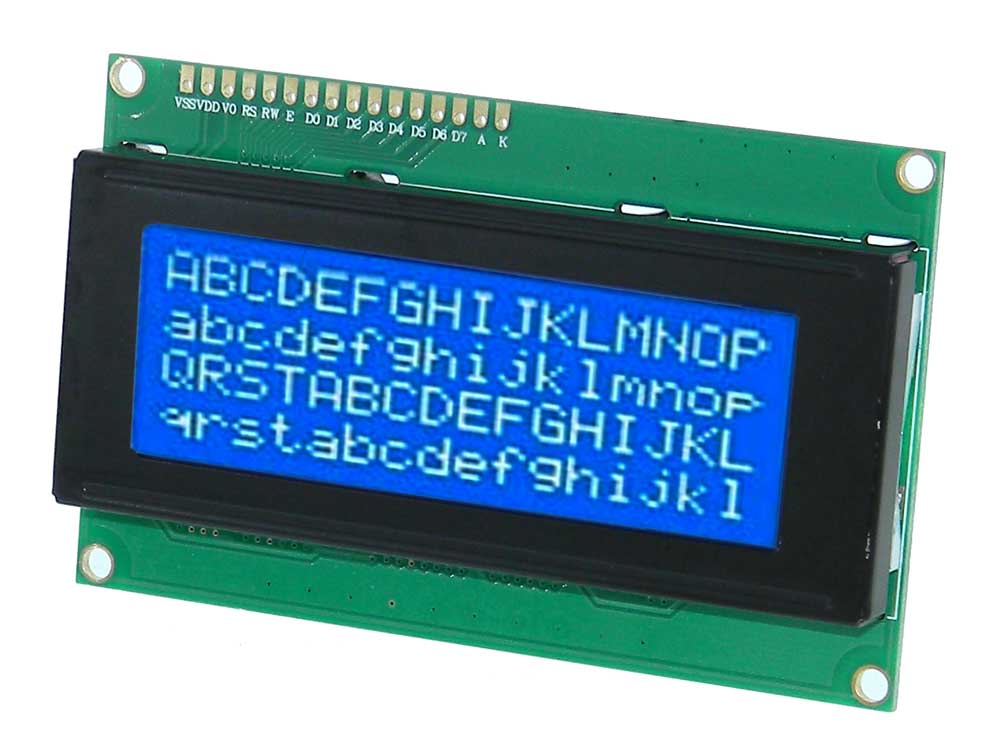

4 X 20 LCD Character Display White on Blue


4  X 20  LCD Character Display White on Blue
Stock Number: 34346 OP
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item
$8.95


Availibilty: In Stock   Units: 78
Quantity



SHARE

     Email this to a friend

Detailed Description

P/N: LCM2004
Resolution: 4 Lines X 20 Character
Char. Size: 2.95 X 4.75mm
Dot Size: .55mm X .55mm
Specifications/Features: 5 X 7 + cursor with white characters on deep blue background. 5V LED backlite.
Dot Matrix display with built in SPLC780 controller (equivalent HD44780) & drivers. 4/8 Bit Parallel interface.Requires single +5V for logic and LCD drive.
LED Backlight: 5V/<80mA Powered Separately.
L: 3-3/8" W: 2-3/8" T: 5/8" WT: .2

View PDF Data Sheet
SPLC780D DATA


View PDF Data Sheet
Display DATA


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
works with this driver 11/25/2022
Got it to work with a mega250 using Sunfounder driver for their board: (IIC/I2C/TWI Serial 2004/20x4 LCD Module Shield for Arduino Uno/Mega2560( The I2C address is 0x27. Had to use backlight pot to focus text in.

Verified Purchase 8/28/2018
Good Transaction, thank you!
