4 Channel ADC with 1 DAC for Microcontrollers - I2C

4 Channel ADC with 1 DAC for Microcontrollers - I2C

36806-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 36806 MP

Be the first to review this item
$3.95


Availibilty: In Stock   Units: 28
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet
Schematic


View PDF Data Sheet
DATA SHEET

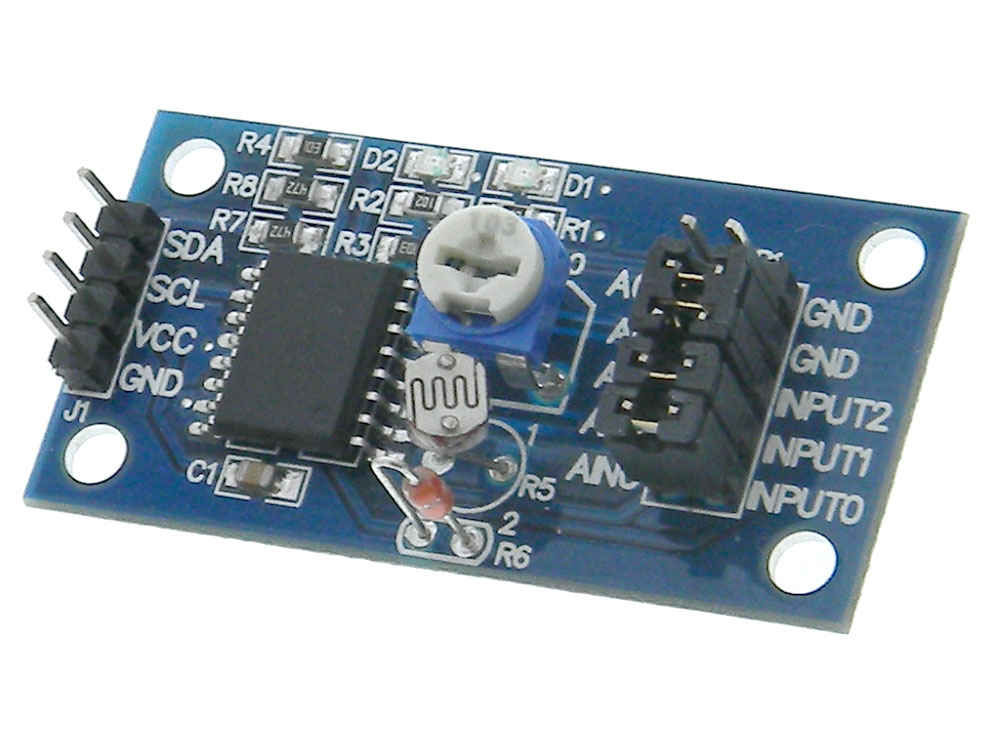

The module uses PCF8591 8-bit CMOS data acquisition IC to support 4-channel Analog to Digital voltage input and 1 channel Digital to Analog Output.
I2C Serial communication to controller. (Address Pins A0-2 are fixed 000 (GND) on this Board)
NOTE: This module is controlled by microcontroller (Arduino, Raspberry etc.) and requires you to write the software.Suggest you download the Datasheet
for the PCF8591 (36806MP Data) from our website
Power: 2.5-6VDC
ADC Input: 0-5V (4 analog inputs can be programmed as single-ended or differential input)
Sampling rate is determined by I2C Bus rate
Automatic increment channel selection
The module has 3 jumper selectable onboard sensors that you can use (These, when enabled, will use 1-3 of the ADC inputs)
Photoresistor, (5537) Ccollects accurate values of ambient light intensity
Thermistor, (MF58) Collects values of ambient temperature
Potentiometer, 0-Vcc voltage source,
DAC ouptut is ~ Vcc/255 x data (value)
L: 1-3/4" W: 15/16" H: 1/2" WT: .02
