3.7V Li-ion Battery Charger/USB Boost Power Module


3.7V Li-ion Battery Charger/USB Boost Power Module
Stock Number: 37529 PS
  Be the first to review this item
$4.95


Availibilty: In Stock   Units: 33
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

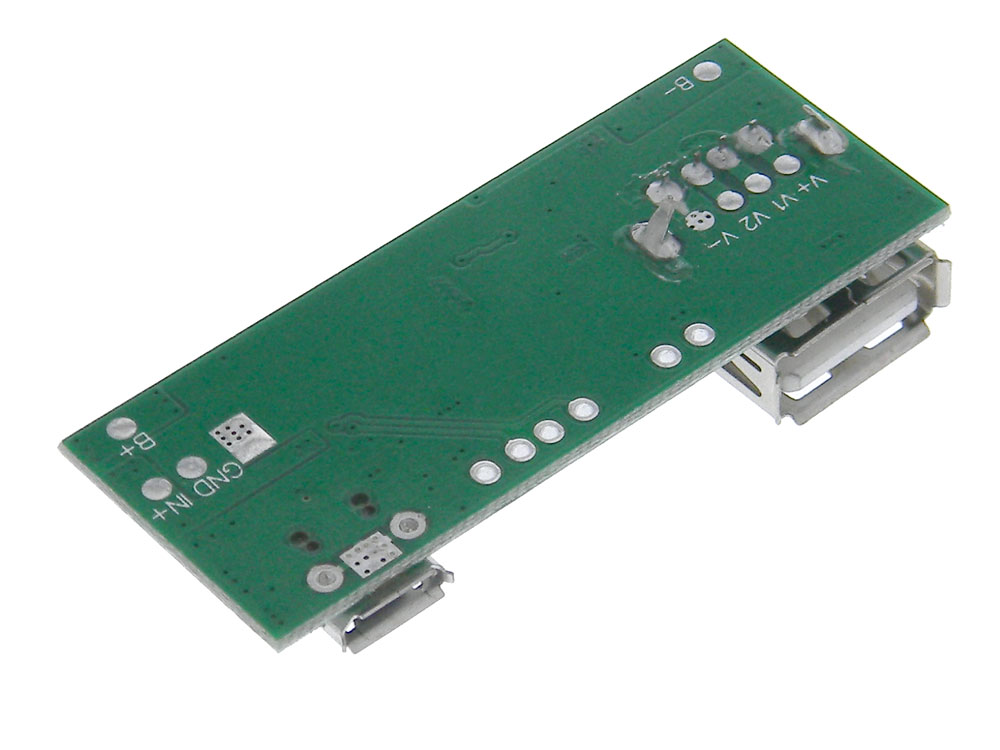

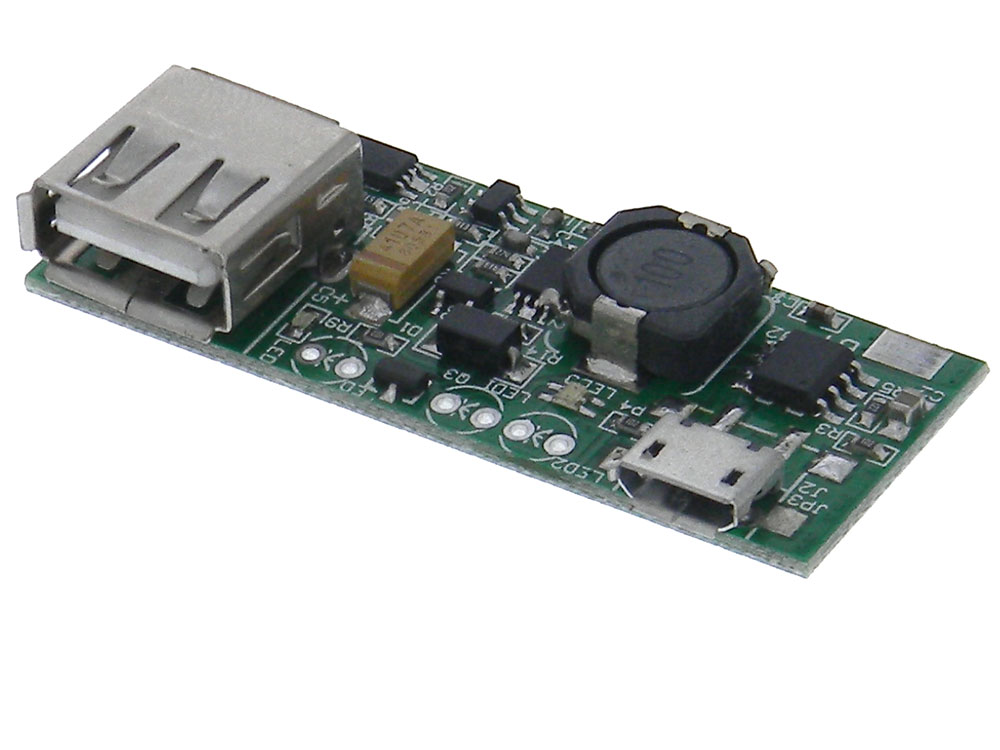

Li-Ion Battery Protector/Charge control module. Attach a 3.7V battery and module will provide power to charge the battery when 5V is connected the USB Micro B Port. Provides a 5V @ 1A output on the USB Type A Port.Connect a 5V Charger to the Micro B USB Port to Charge the Battery.
Battery: 3.7V Lithium polymer, 18650 lithium battery, Cellphone battery.
NOTE: NOT FOR 12V batteries, nickel-metal hydride batteries, lithium iron or Multi-section, series connected lithium polymer batteries.
Charging Input: 5V @ 1A
Battery Input: 3.7VStep-up Voltage
Output: 5V@1A max (USB Type A Jack)
Transient current: 180uA
Onboard LED Indicator: Red-Charging, Green-Charging completed, Blue-There is a load on the USB Type A Port
Connections for Optional Off Board LEDs.
Battery Input over-voltage, over-current, under-voltage protection.
USB Output overcurrent, short circuit protection
Over-temperature protected.
NO MOUNTING HOLES
L: 2" (50mm) W: 25/32" (20mm) H: 1/2" (12mm) WT: .02
