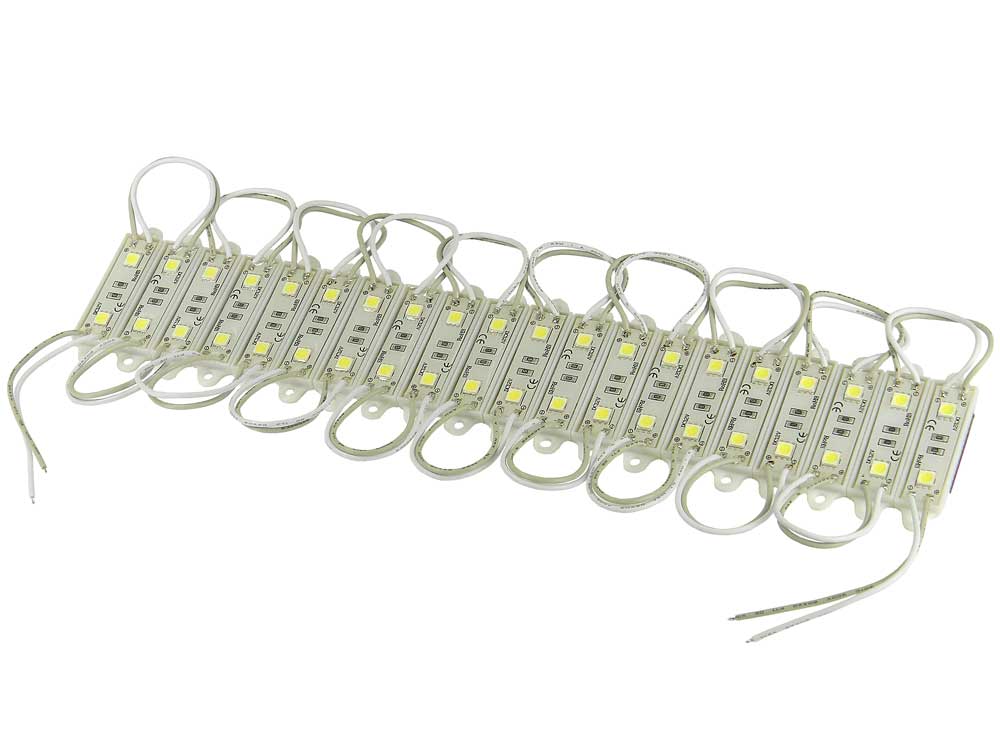

36 Lumen, Super Bright White LED Modules, 12VDC, 20 Modules
12V, +-.5V DC input Only.
String of 20, 36 Lumen Super Bright White LED light modules featuring: 2 high lumen LEDs/module.
IP65 rated Plastic Case with clear epoxy potting
3" leads between modules
Operating Voltage 12VDC
Current: .8A (40mA)/module)
120 deg. beam angle.
Color Temp:~5000 to 6500
Peel-n-stick backer and end mounting ears.
CE/RoHS Compliant Module L: 2-3/8 W: 5/8 T: 9/16 L.: 86in WT: .25
WARNING: This product can expose you to chemicals including arsenic which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the Prop 65 law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Used a strip of these to light the underside of my work bench, works great AAA+
- David, CA
They Self Destruct
I bought two of these some time ago. One worked fine. The other drew TWICE the 40 mA per module of the spec and fried the resistors and epoxy. Be Careful!! Some work and some do not.
Bright and compact - Peel and stick a plus.
I used these to replace the wedge lamps in five landscape seat wall fixtures. Their compact rectangular size fits nicely inside the narrow rectangular seat wall fixtures and the double-faced tape affixed well. I am running them from a 12VDC solar system consisting of a solar panel plus charge controller plus SLA battery along with other LED fixtures for our garden and lighting for our Gazebo. I use a photocell for the landscape and seat wall LED fixtures. The pair of leds in each module throw out just enough light for each seat wall fixture - any brighter and it would be too much. Note that the grey lead is positive.
