3.3V & 5V Breadboard Power Supply


3.3V & 5V Breadboard Power Supply
Stock Number: 30175 PS
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item
$2.25


Availibilty: In Stock   Units: 13
Quantity



SHARE

     Email this to a friend

Detailed Description

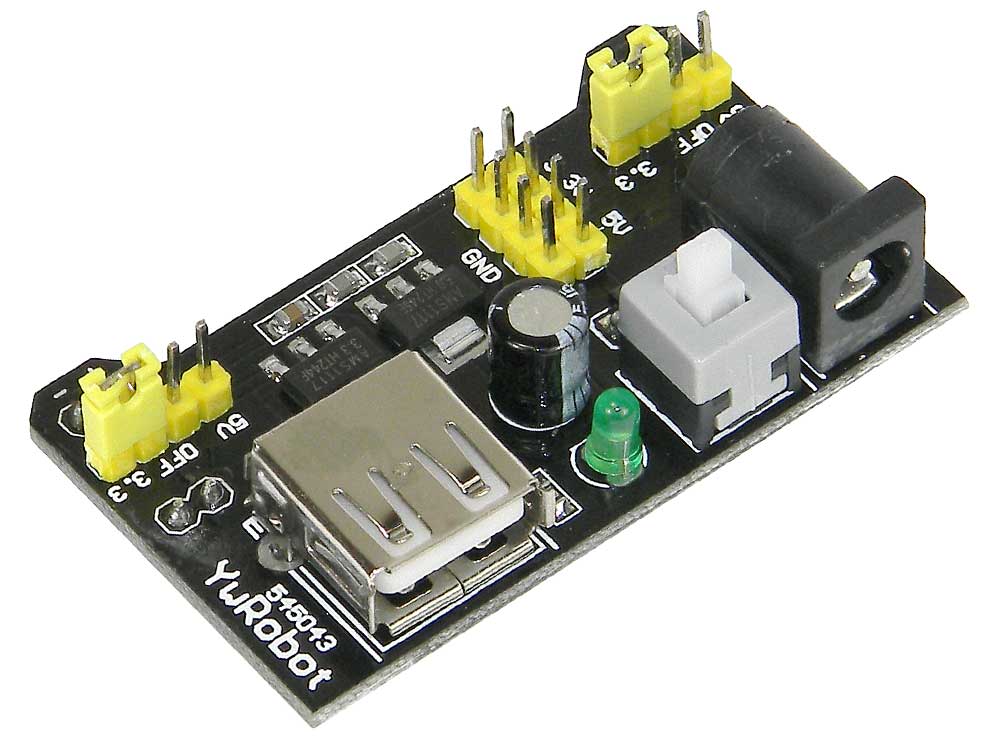

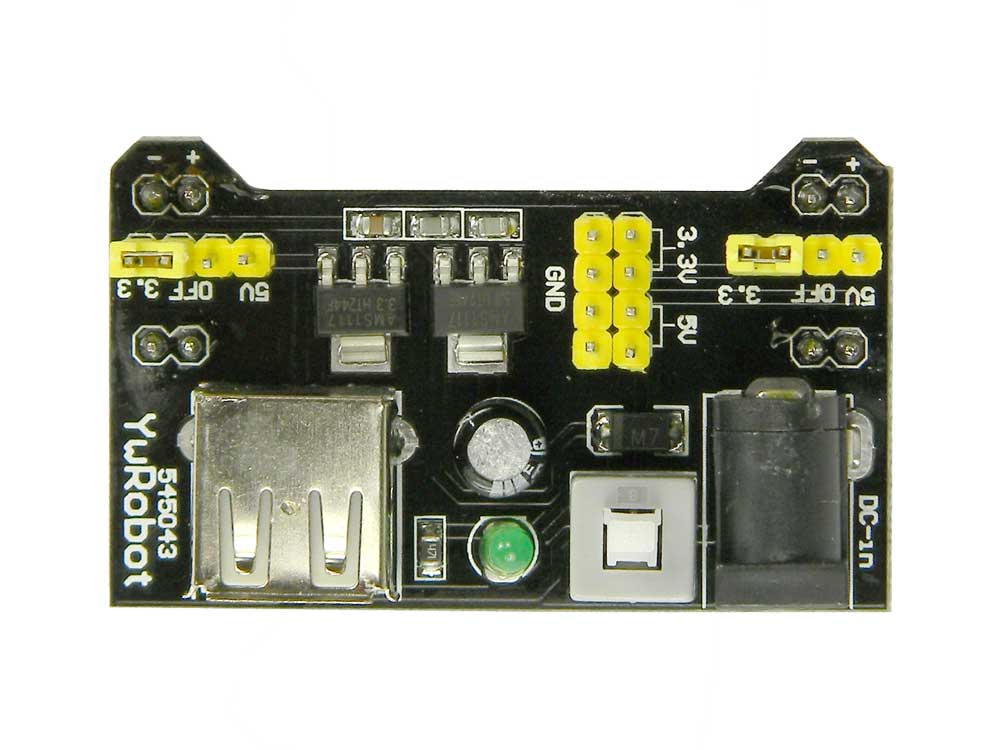

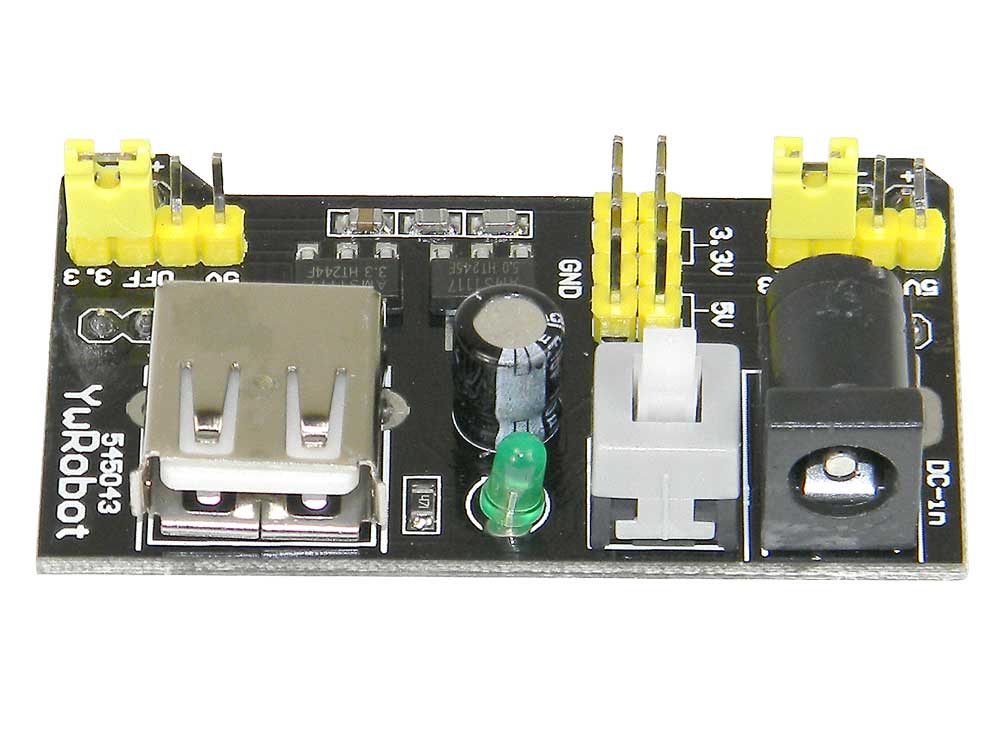

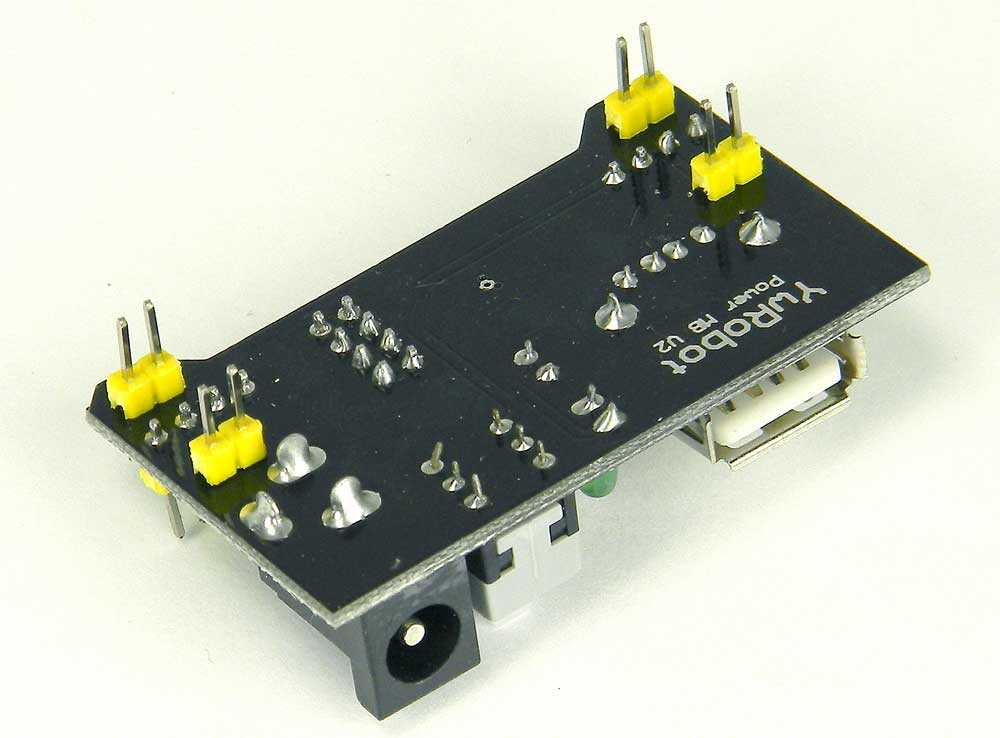

3.3V & 5V power supply board designed to plug into a Breadboard panel with 2 Distribution strips. Max total load:700mA. Selectable 5V, 3.3V or No Bus voltage for both buses. Power On/Off switch on board. Input power from USB A Female Port or 5.5/2.5mm power jack. 6.5-12VDC input range
W: 2-1/6" D: 1-1/4” H: 1/2” WT: .03

View PDF Data Sheet


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Works as described
FYI, if 5 volts is applied to the input, the 5 volt output will be 2.5 volts. Also there are no mounting holes on this unit. You must insert it in a breadboard being careful to make sure the underside pins are not shorted together by the layout of the breadboard. I put mine into a perfboard in my application. If you want the 5 volts out, you will need to put power in through the coaxial connector.

Schematic incorrect
The schematic shows AM1117 as the voltage regulator, a part that does not exist. It should be AMS1117.
- Mike Larkin, OR
