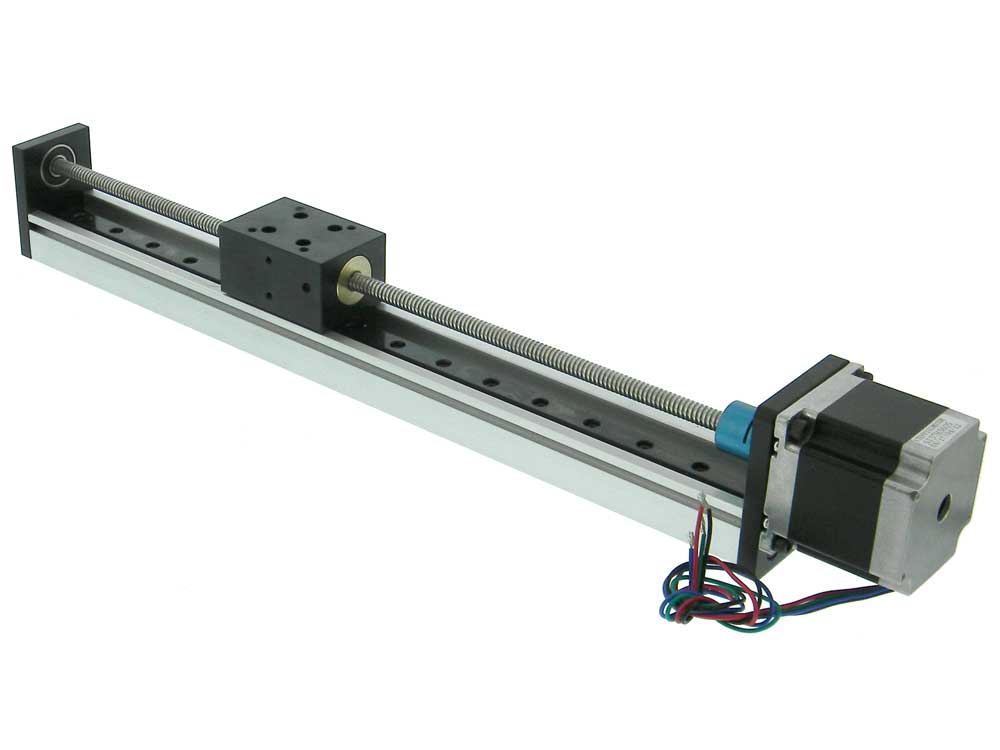

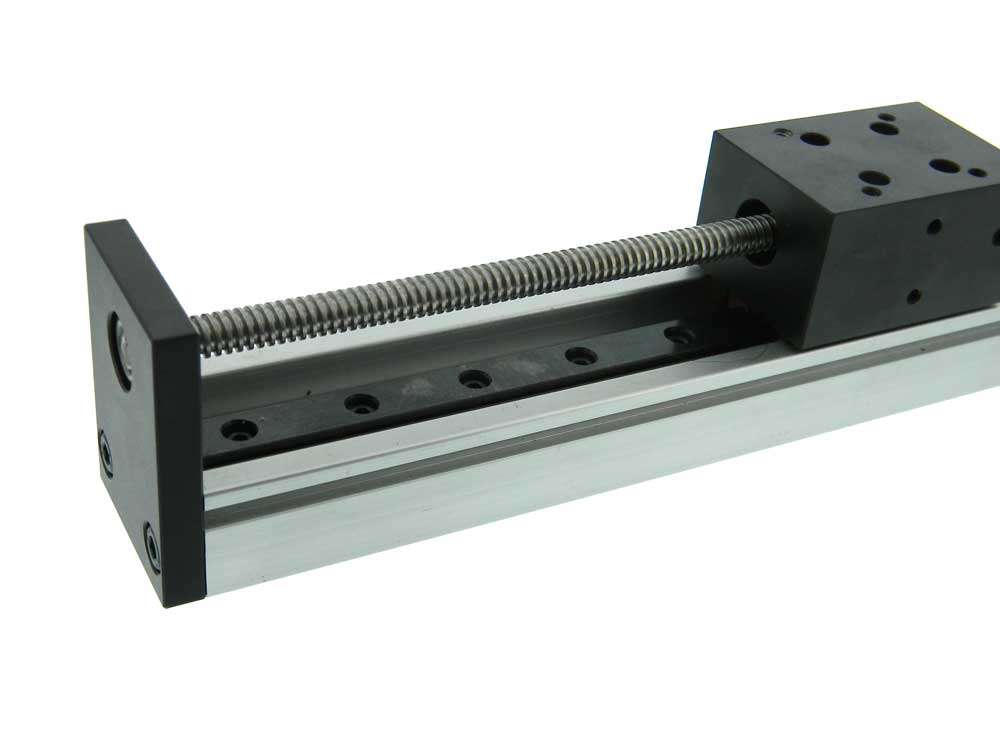

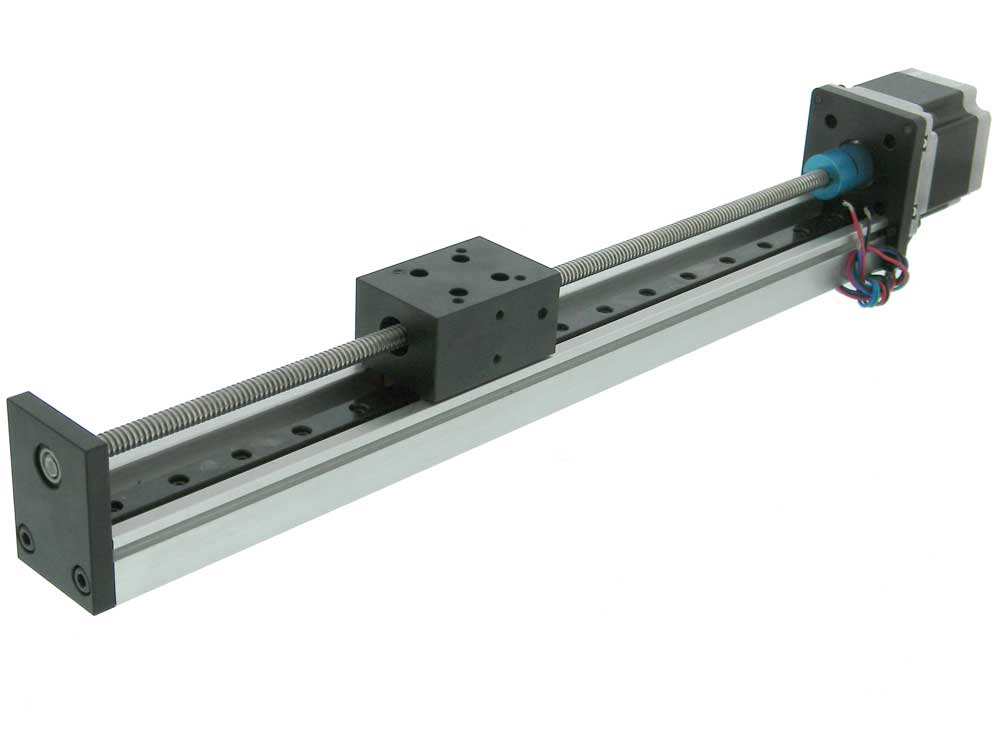

300mm Linear Guide Rail Assembly with Stepmotor

300mm Linear Guide Rail Assembly with Stepmotor

33997-large.jpg  33997-1.jpg  33997-2.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 33997 MI
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item

Availibilty: In Stock   Units: 23

Email this to a friend

 Detailed Description
View PDF Data Sheet

Linear leadscrew slide assembly generally used for the “X/Y” axis in engravers, CNC machines or 3D Printers.
NEMA 23 Motor, Steel “T” glide rail , Aluminum mounting rail & end plates.
Effective Travel Length: ~310mm
Leadscrew: 8mm Dia. T8X2-1 Start, 2mm lead
Ball Bearing support
Aluminum Slide plate 60X42mm
4 M4-0.7 tapped holes for Attaching work plate
Ratio: 1 Rev = 2mm slide movement
Motor: NEMA 23/Size 57, 2 Phase 4 lead
Step Angle: 1.8deg.
Coil: 4.2VDC/3.5 Ohms/11mH
Motor Leads: 11”
L: 18-1/2” O/A W: 2-3/16” H: 2-7/8” WT: 4.5

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)

 Product ReviewsClick here to review this item
Fits great on my 3d printer
Fits nice and snug on my 3D printer, I was afraid at first it wouldnt fit but this rail should fit most 3D printers
