3 Channel Variable Frequency/Width Pulse Generator


3 Channel Variable Frequency/Width Pulse Generator
Stock Number: 35479 MP
  Be the first to review this item
$8.95
$4.95
This item is discontinued & is not being restocked.


Availibilty: In Stock   Units: 1
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

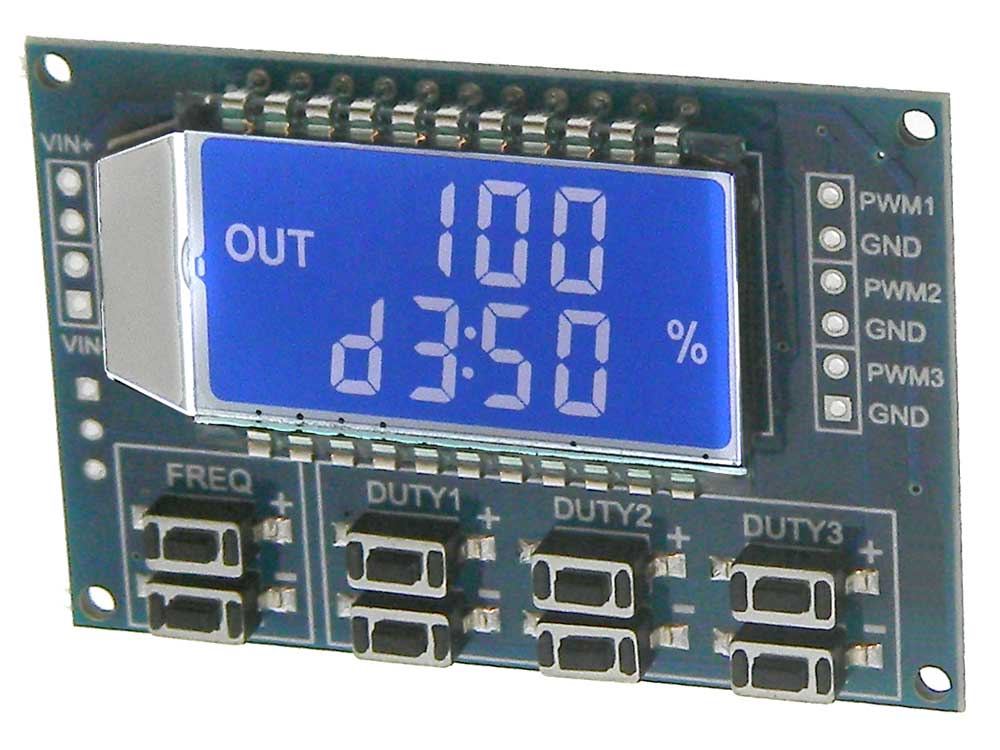

3 Channel Variable frequency & Pulse Width Generator module with back lit LCD Display.
Simple source of test pulses.
8 P B switches used to set the Frequency and Duty Cycle,
Note the Frequency is the same for all channels
Each channels Pulse width can be set.
Short press for single unit increase or decrease
Long press for rapid increase or decrease
Auto save prevents setting loss due to power fail.
Power: 3.3 ~ 30V;
Frequency range: 1Hz ~ 150KHz; auto switching
A: 1-999Hz Resolution 1Hz (Display 123) no decimal)
B: 1KHz-9.99KHz Resolution 10Hz ( Display 1.23)
C: 10KHz-99.9KHz Resolution 100Hz (Display 12.3)
D: 100KHz-~150KHz Resolution 1KHz (Display 1.2.3)
Duty Cycle ~0-99%
Accuracy: ~ 2%;
Max Output Current: <30ma (Dependent on Input Voltage)
Output Voltage: ~Vcc (Input V)
Ambient temperature: -20 ~ +50 "C"
Connections: Solder Holes (0.1 Pitch)
W: 55mm H: 38mm D: 10mm WT: .04
