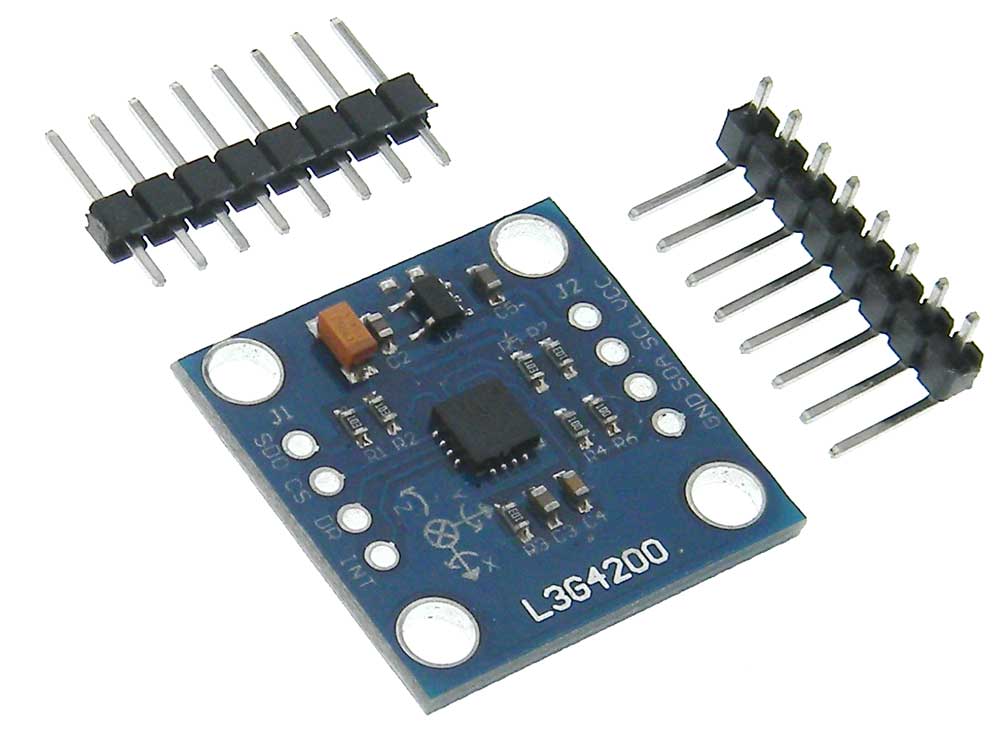

3 Axis Gyroscope Module, L3G4200D

Schematic


Data Sheet


L3G4200D


TA0343


Three-axis digital output gyroscope for Microcontrollers
Designed with the STMicroelectronics L3G4200D triple axis accelerometer/Gyro.
Power: 2.4 V to 3.6 V
Scale: 250/500/2000deg/Sec. (dps) (Selectable)
Output: I2C or 3/4 wire SPI (Selectable)
Mode: Slave
I/O: 1.8V Low voltage-compatible
16 bit-rate value data output
Temperature sensor (8-bit data output)
Two digital output lines (interrupt and data ready)
Low and high-pass filters with selectable bandwidth
Ultra-stable over temperature and time
Embedded power-down and sleep mode
FIFO: 32-slot, 16-bit data X 3 (yaw, pitch, and roll)
LED Power Indicator
Connections: 2 X 4 Pin, 0.1” Pitch headers.
SQ: 1-1/16” W: 9/16” H: 1/2” O/A WT: .008
