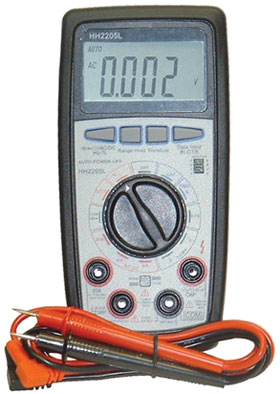

Quality 3-3/4 digit (4000 count) DMM with .8" char. ht. backlighted LCD display. Autoranging and Range & Data Hold, AC & DC voltage/Current, frequency to 400KHz, Capacitance, Resistance to 40M Ohm, Fused input. Includes Test leads, Black Boot. 9V Battery not Included
DC VOLTS .4V to 1KV, Accuracy .8% +5 LS digit Impedance 10 Mohm
DC CURRENT 400uA to 20A, Accuracy 1.2% + 5 LS digit/1.8% on 4A/ 2% on 10A. Overload .5A Fuse on uA,mA.
20A: 15sec on/30min off. Fused @ 20A
AC VOLTS 4V to 750V, Accuracy 0.8% +8 LS digit, Impedance10M ohm, Overload 750VRMS
AC CURRENT 400uA to 10A, Accuracy 1.2% + 8LS digit 2.5% +5 on 4A, 3%+5 on 10A, Overload fuse.
20A: 15sec on/30min off. Fused @ 20A
CAPACITANCE 4nF to 100uF, Accuracy 6% + 6 LS digit on 40nF, 2% +5 on others
RESISTANCE 400 to 40M Ohm, Accuracy .8% + 5LS digit, 1.2% + 10 on 40M Ohm.
FREQUENCY 10Hz-400KHz, Accuracy .2% + 3 LS digit,
OTHER Continunity buzzer <20Ohm,
Diode/Transistor tests
T: 7-3/8" W: 3-5/8" D: 1-3/4" WT: .8
