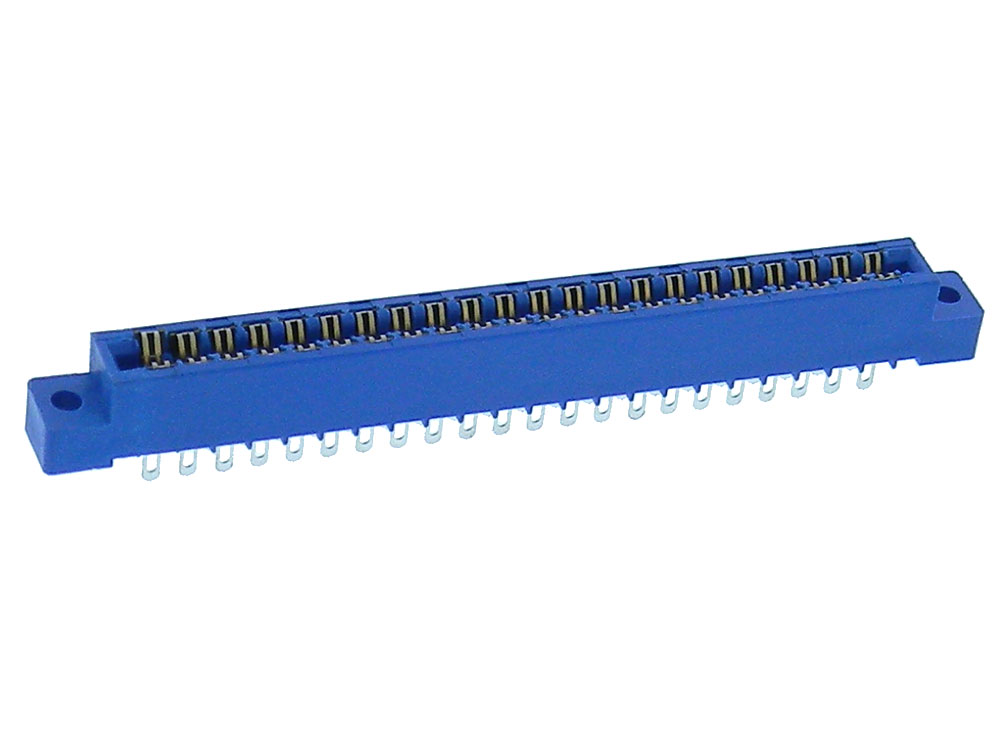

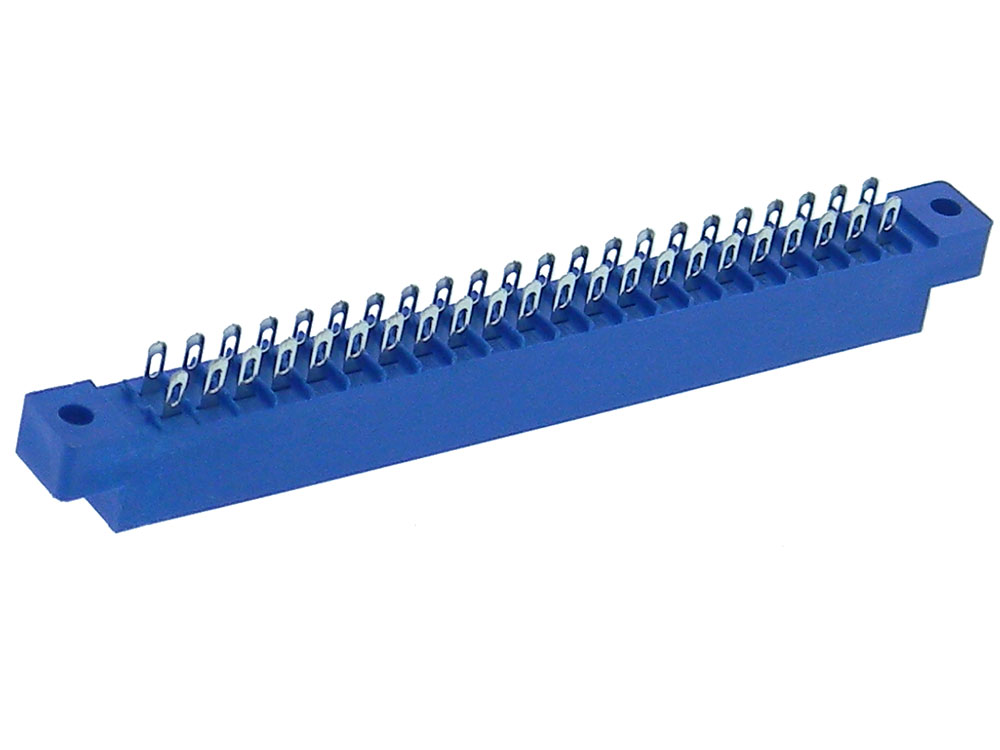

2x22 (44) pin - 3.96mm (.156") Pitch Edgeboard Connector


2x22 (44) pin - 3.96mm (.156
Stock Number: 37846 EC
  Be the first to review this item
$2.52


Availibilty: In Stock   Units: 76
Quantity



SHARE

     Email this to a friend

Detailed Description

2x22 (44) pin PC Board edge connector with gold plated
Bifurcated contacts.
Board Thickness: 1.37 mm to 1.80 mm (0.054" to 0.071")
(1.57mm/0.062" nominal)
Current Rating: 5 A
Test Voltage Between Contacts: 1800 VRMS (Sea Level)
Insulation Resistance: 5000M Ohm mini at 500 VDC
Operating Temperature: - 55 C to + 125 C
L: 109mm (4-1/4") W: 8.8mm (5/16") H: 11.8mm (7/16") Body WT: .022
