2x12 (24) pin - 3.96mm (.156") Pitch Edgeboard Connector

2x12 (24) pin - 3.96mm (.156
Stock Number: 37843 EC
  Be the first to review this item
This item is discontinued & is not being restocked.

This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available

     Email this to a friend

Detailed Description

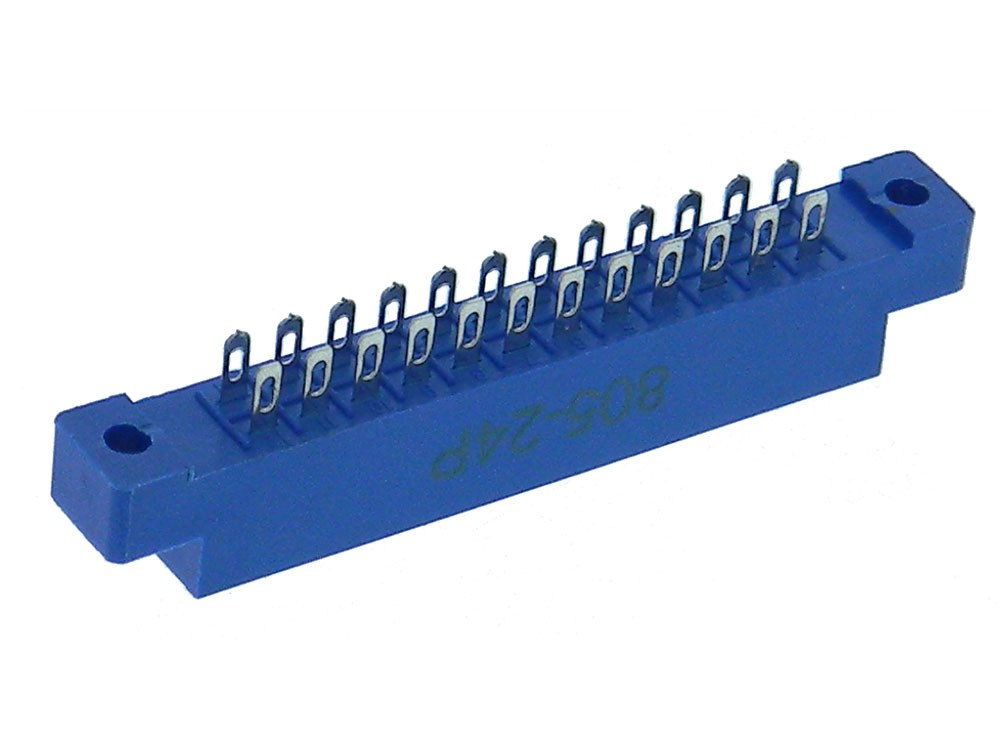

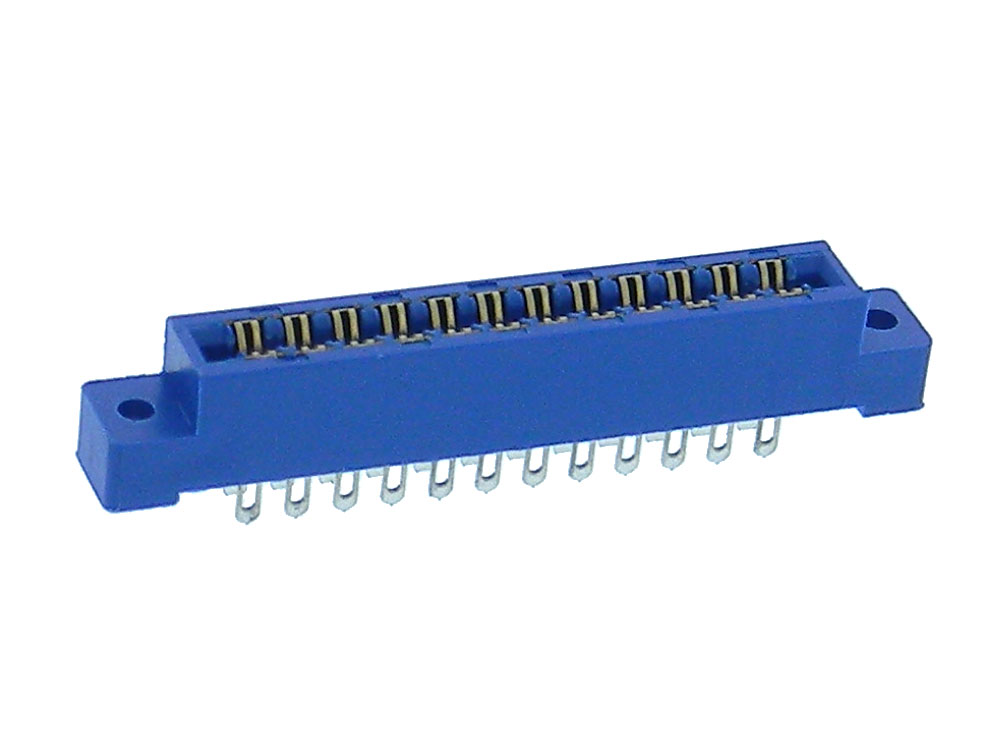

2x12 (24) pin PC Board edge connector with gold plated
Bifurcated contacts.
Board Thickness: 1.37 mm to 1.80 mm (0.054" to 0.071")
(1.57mm/0.062" nominal)
Current Rating: 5 A
Test Voltage Between Contacts: 1800 VRMS (Sea Level)
Insulation Resistance: 5000M Ohm mini at 500 VDC
Operating Temperature: - 55 C to + 125 C
L: 69mm (2-13/16") W: 8.8mm (5/16") H: 11.8mm (7/16") Body WT: .02
