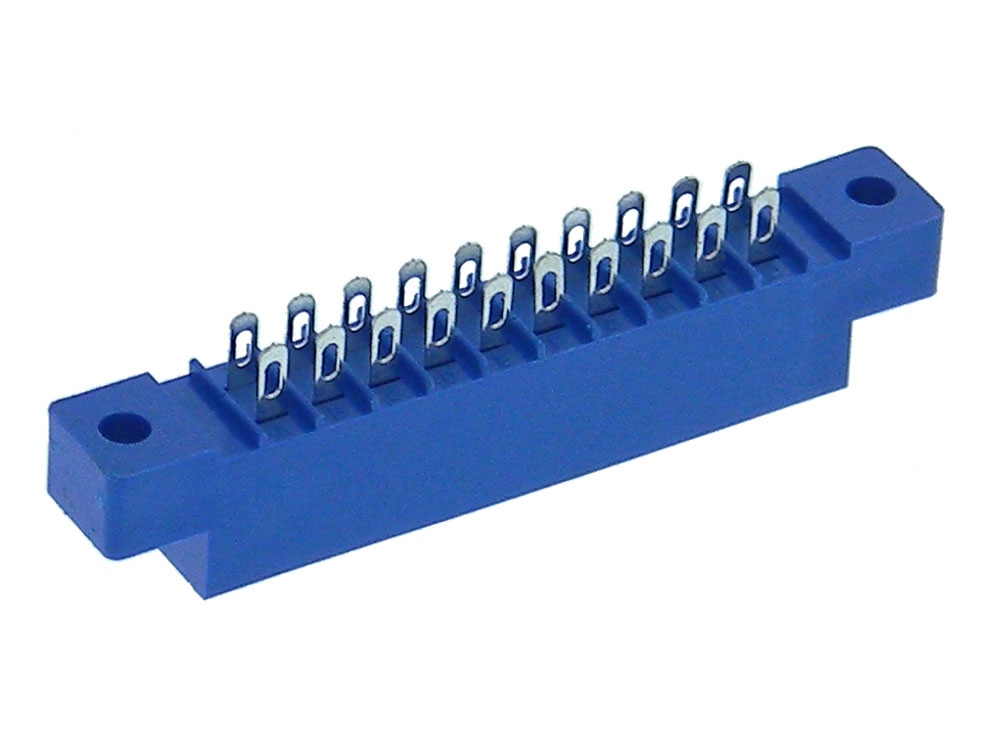

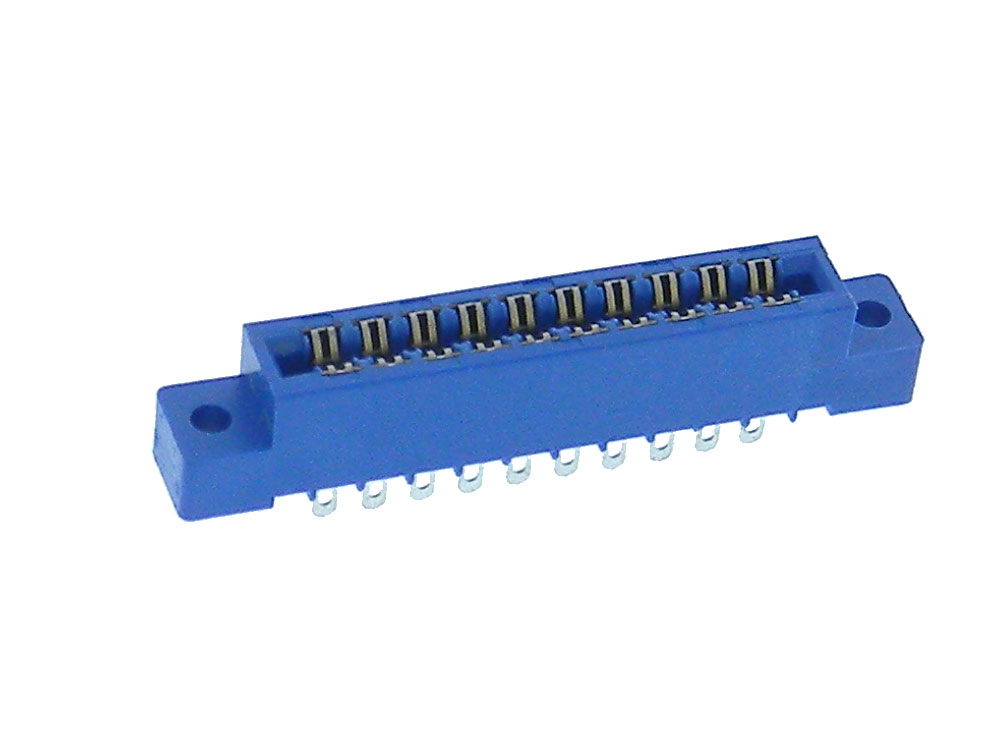

2x10 (20) pin - 3.96mm (.156") Pitch Edgeboard Connector


2x10 (20) pin - 3.96mm (.156
Stock Number: 37842 EC
  Be the first to review this item
$1.40


Availibilty: In Stock   Units: 127
Quantity



SHARE

     Email this to a friend

Detailed Description

2x10 (20) pin PC Board edge connector with gold plated
Bifurcated contacts.
Board Thickness: 1.37 mm to 1.80 mm (0.054" to 0.071")
(1.57mm/0.062" nominal)
Current Rating: 5 A
Test Voltage Between Contacts: 1800 VRMS (Sea Level)
Insulation Resistance: 5000M Ohm mini at 500 VDC
Operating Temperature: - 55 C to + 125 C
L: 61mm (2-3/8") W: 8.8mm (5/16") H: 11.8mm (7/16") Body WT: .015
