LED REQUIRES HEATSINKING
Case Temp. <45C max.
High Brightness, 3000-3500K Warm White LEDs.
5V max Reverse Voltage. 160deg. View angle.
Output: >250 lm
Max. Forward Current: 300mA
Forward Voltage: 9-12V

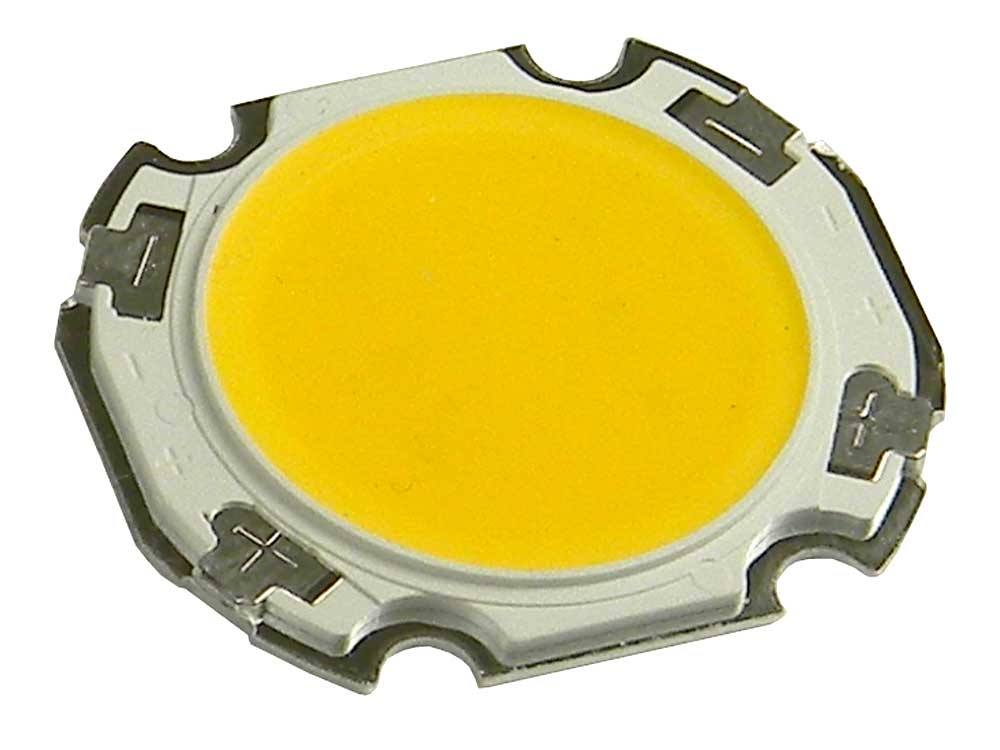

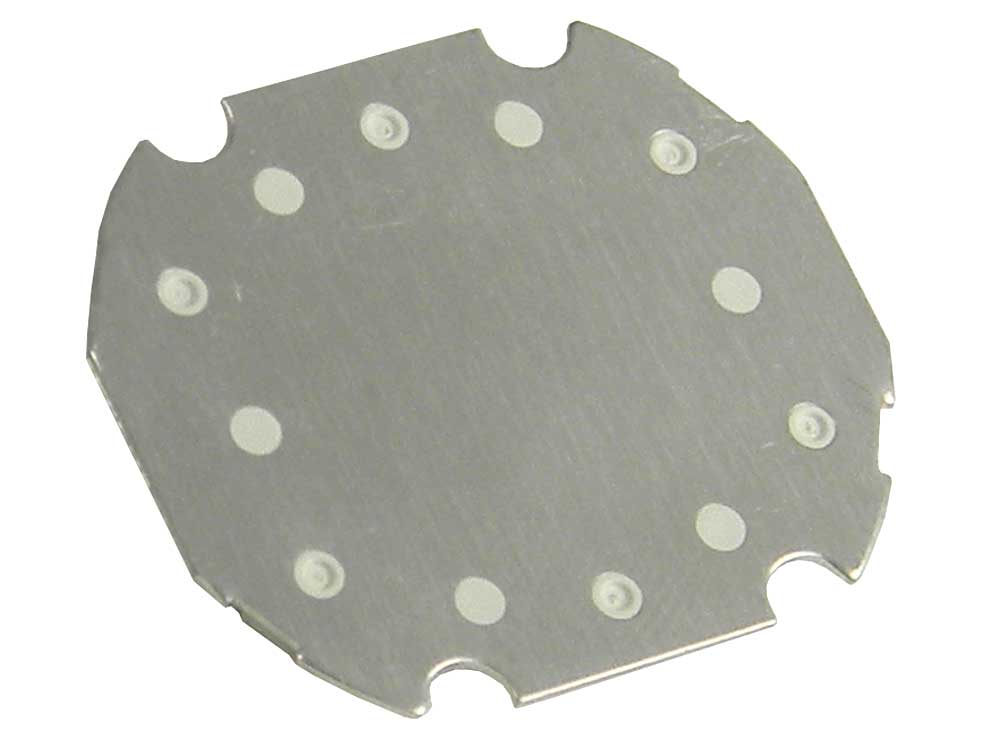

ALUMINUM BASE SURFACE MOUNT PACKAGE L: 27.3mm W: 23.7mm H: 2mm WT: .03
WARNING: This product can expose you to chemicals including Chromium which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
I have been using this type of LED to replace my power hungry RV lighting. when paired up with a dimmer unit, it is shocking how much light you get for so very little power use. 2 of these running in parallel will put out about the same amount of lighting as a 50w incandesent bulb but with hardly any power use. Incredible.
As mentioned, the solder pads are different but not a problem to dab solder on the pad then onto the wire.
I had ordered some earlier and found the led arrangement in the unit is different. These seem to have 6 large leds in a circle type arrangement. The ones purchased previously had larger solder terms and the 6 leds were smaller, 3 in a row, two rows arrangement. The rating is the same but I dont have a light meter, however, these with the LEDs in a circle appear to the eye as brighter.
Be careful with this current batch08-05-18, they are rated up to 12v dc and you WILL BURN IT OUT if you connect directly to a car battery which is generally a higher voltage.
For long lasting light, back lighting, convert a desk lamp, these are pretty decent. What a savings in power use for the amount of light put out.
- Crackers Cyrcle, IL
Latest Batch Downgraded
I am a past fan, used these 3 times before, but the latest batch I received is of lower quality, ie the already tricky solder pads are even smaller now, really tricky to solder, and one unit was inop.
Too delicate for my applications now, im afraid.
Modded for continuous, confined space
Just an update-I had a plastic taillight housing melt, LED never failed!where they were in a warm, confined areatrunk top. I did have em on 12.6v, so I have installed the LED Drivers, 3W Output, 12VDC Input
Item #: 31556 PS for this tight, hot ambient. Working great.
- Alan, KS
250 Lumen 3 w
I tried these with 19016 HK passive heatsinks.
Glued on with thermal epoxy, they fit nicely.
Drove off battery 12.6 v, a bit above Vf spec.
So far endured 12 hrs without current limitting.
They do get hot, Im overdriving them.
A bit tricky soldering to the flush pads.
- Alan, KS
Great value 3w
I have used some replacing automotive tail and turn bulbs, mounted on No 19016 BGA passive heatsink.
No current limiting . They survive so far....
Note the solder pads are small, flush and tricky.
