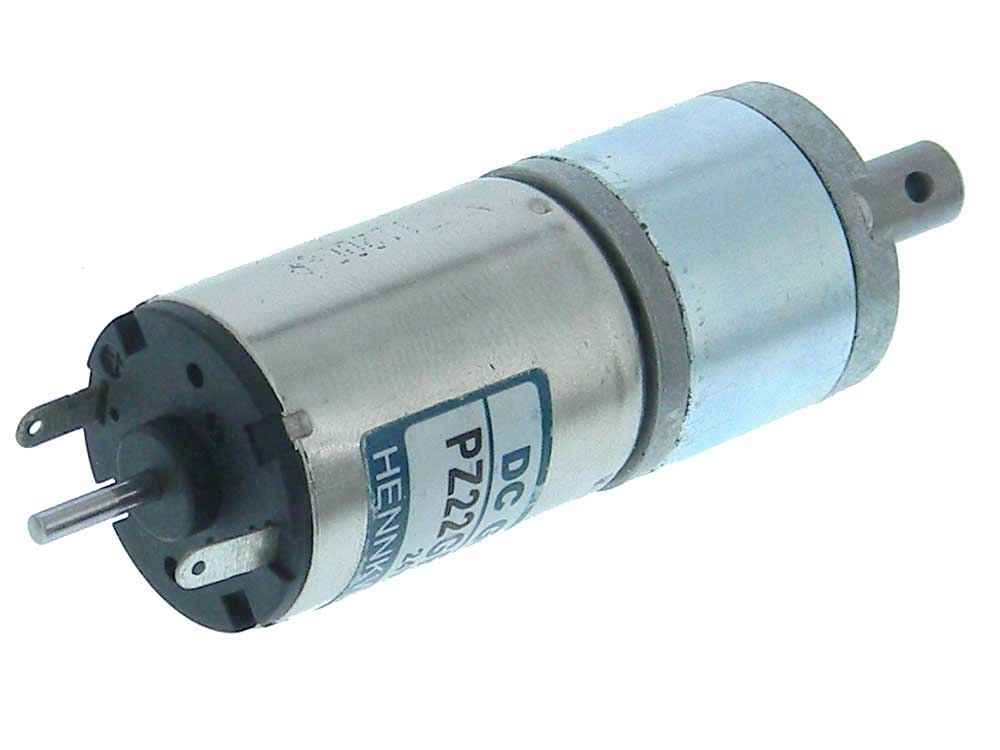

24VDC 142RPM Gearhead Motor

24VDC 142RPM Gearhead Motor
Stock Number: 35772 MD
  Be the first to review this item

This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available

     Email this to a friend

Detailed Description

View PDF Data Sheet

MFG: Hennkwell
P/N: PZ22GR9120R-084BBH.
Voltage Range: 6-24VDC.
Rated Voltage: 24VDC
Dual shaft, Dual Ball Bearings, instrument grade motor with planetary gearhead.
Current: 0.1A @ No Load 0.2A @ Rated Load 1.3A @ Stall
RPM: @24Vdc ~142 No Load 113 @ Rated Load.
Rated Load: 1.5kg/cm Rear
Shaft: Front: 6mm Dia X 14mm (Operates @ Gearhead RPM)
Shaft: Rear: 2mm Dia. X 9mm (Operates @ Motor RPM)
4 front mount M2x0.4 threaded mounting holes
Solder lug terminals.
L: 53mm Body DIA: 22mm WT: .2
