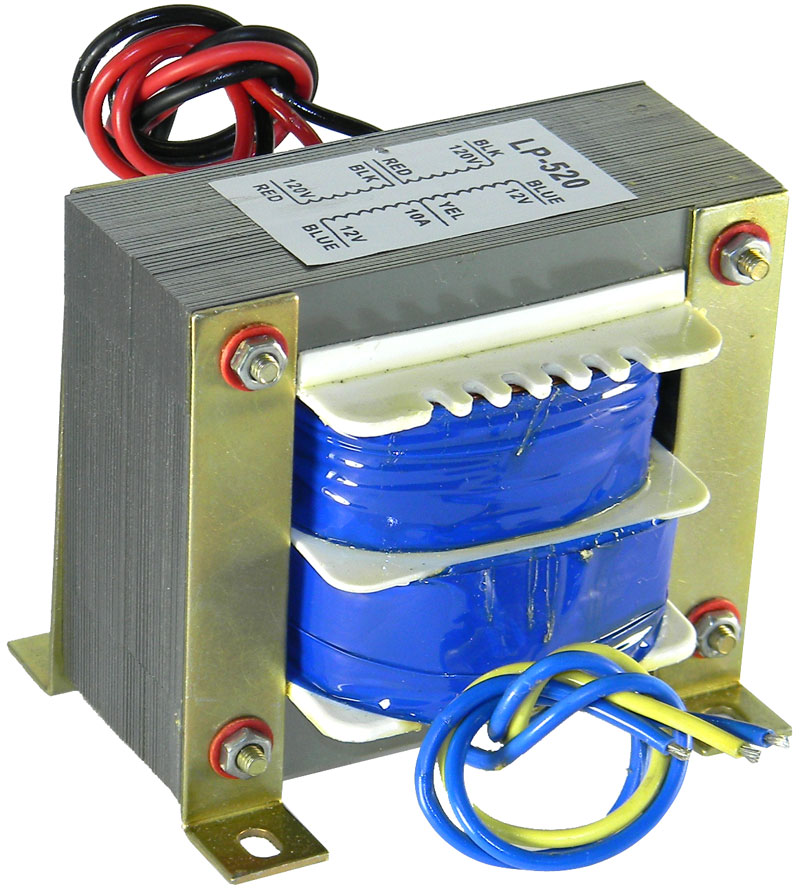

MFG: Okura P/N: LP520 Input: 120/240VAC 60Hz Outputs: 24VAC @ 10A (12V-0V-12V) Specifications/Features:
Chassis mount transformer with 6” wire leads for connections. L: 3-3/4" W: 3-5/8" H: 3-3/8" WT: 5.5
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Modern pachinko machines require 24v AC and need to run quite a bit of electronics on the back to support the audio, video, ball shooting and payout systems. In most cases the transformer included can do the job but if it runs blistering hot, a bigger one is called for. This one fits the bill quite well. If you imported a machine directly and it didnt have a transformer included, this one is recommended.
George
Well built heavy duty X-former
This is a well built, heavy no pun intended duty efficient device. This X-former is neatly put together, and operates efficiently, creating an expected but not excessive amount of heat when heavily loaded secondary loads greater than 5 amps are supplied . The heat produced with these type loads can easily be negated, with a small fan vented to free space. The fan is unneeded except in applications where the power supply must be contained in an enclosure, in close proximity to heat sensitive devices. In these designs space is at a premium, and most CPUs are heat sensitive, and exothermic.
