240 x 320 RGB Pixels 2.8" TFT LCD for Microcontrollers
Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

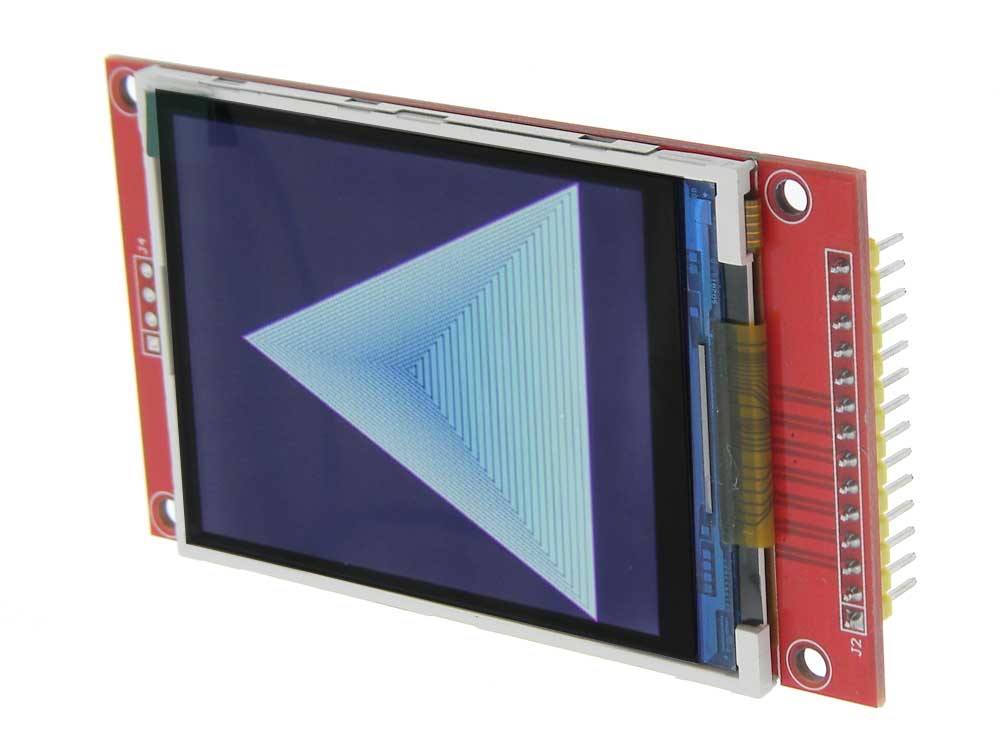

2.8" Dia. TFT Color LCD Graphics Module for Micro-controllers.
Uses ILI9341 IC with SPI serial interface
Compatible with 51/ARM/Arduino
Integrated backlight circuit which controls the
backlight and can use the PMW of the arduino to adjust the
backlight brightness.

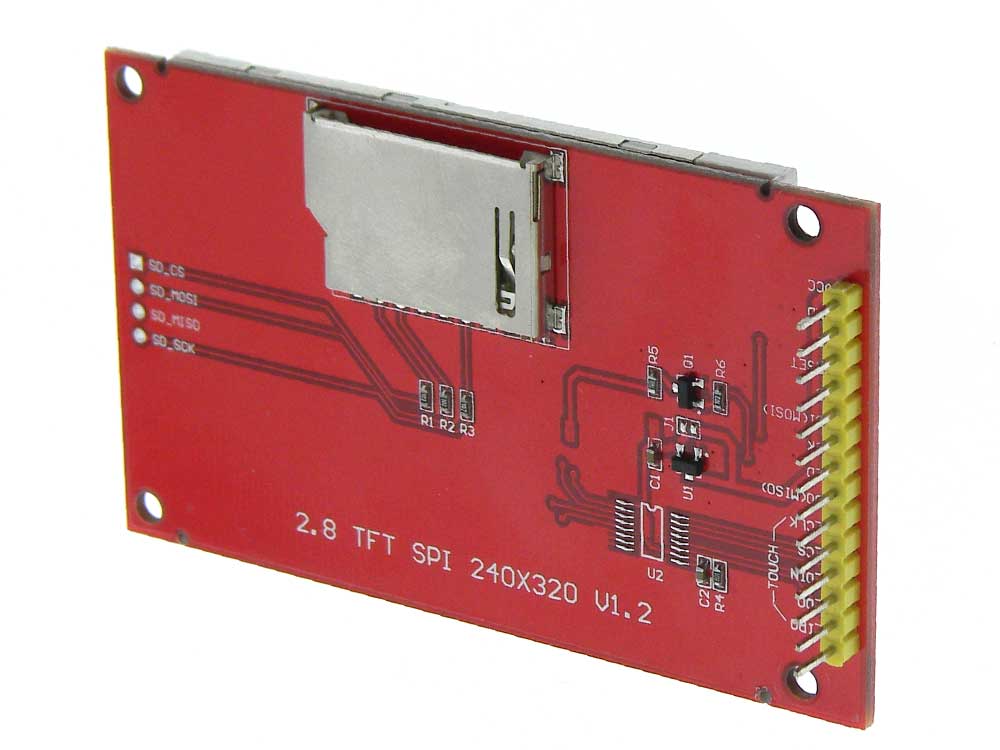

On-board SD card expansion connector.
Power: +3.3/5 VDC (On-Board Regulator)
Display Type: 2.8 “TFT” 65K Colors
Resolution: 240 x 320 RGB pixels
Display mode: Transmissive
Backlight: White LED
Viewing Angle: 12 O’clock
Operating Temp: -20 ° C ~ + 70 ° C
Storage Temp: -40 ° C ~ + 70 ° C
Outline Dimensions: 86 * 50 * 7.3 mm
Connections: 14 Pin, 0.1" Pitch Header Pins
Usefull Link: Copy & Paste in Browser
http://www.lcdwiki.com/2.8inch_SPI_Module_ILI9341_SKU:MSP2807 L: 3-3/8” W: 1-1/2” T: 5/16” WT: .1
