24 Piranha LED Board, Cool White


24 Piranha LED Board, Cool White
Stock Number: 32035 OP
 Review Average:
 Number of Reviews: 5
 View ReviewsReview this item
$4.95


Availibilty: In Stock   Units: 56
Quantity



SHARE

     Email this to a friend

Detailed Description

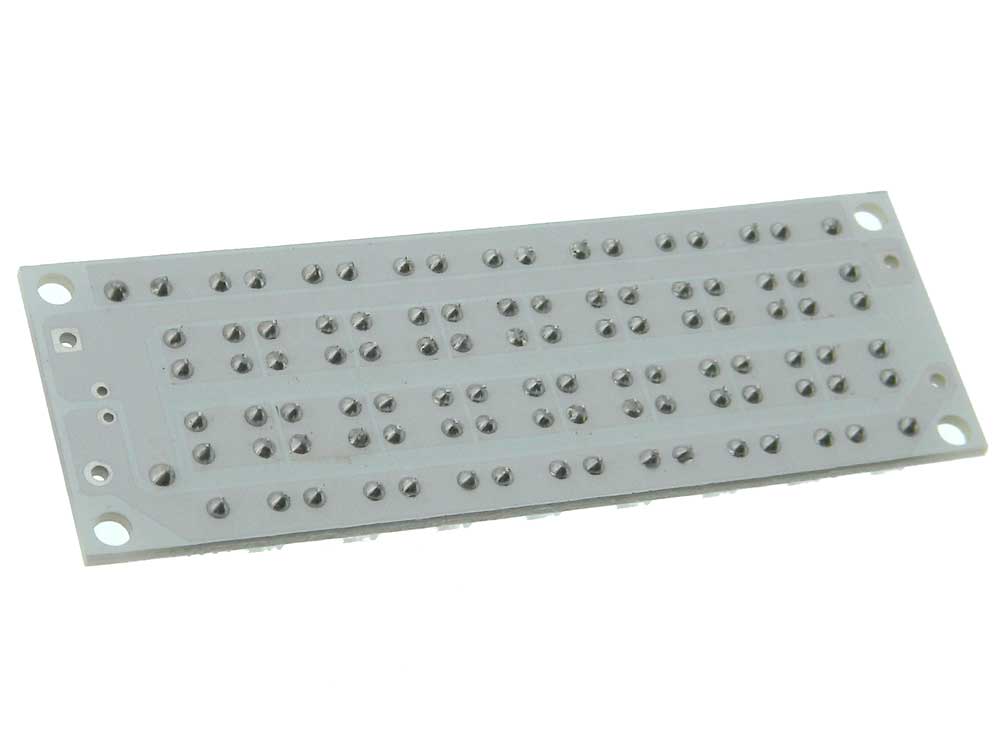

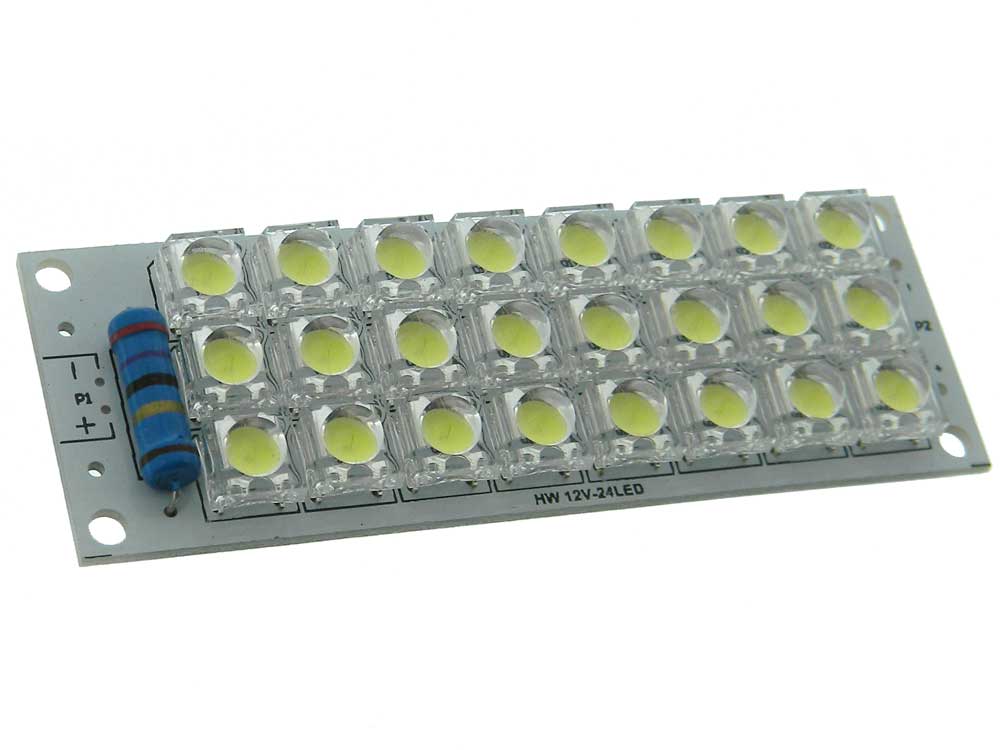

24 Cool White Piranah LEDs mounted on a board.
<90 lumens per board. 120 deg. beam angle.
Voltage: 12VDC max
Current: <0.3A
Color Temp:~5000 to 6500
Note: resistor can get hot
L: 3-3/16” W: 1-1/8” H: 1/2” WT: .03


California Proposition 65 Warning WARNING: This product can expose you to chemicals including arsenic which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Resistor fix 11/7/2022
@Ray, it's simple enough to remove the resistor and replace it with a higher wattage resistor. Be sure to leave the leads long -- 1/4" to 1/2" (or 1 cm) -- so that the resistor sits higher off the PCB. You'll be surprised how much cooler the resistor runs, just from being spaced above the PCB. But you probably cannot do this with the stock resistor.
- Jim Strohm, TX

PLENTY BRIGHT -- CAN YOU HEATSINK THE RESISTOR? 10/25/2021
Is there a way to heat sink the resistor to avoid that WARNING?
RAY HARVEY

Versatile great light package 3/16/2017
I ordered just one to see how it is, I ended up putting it on my autonomous arduino controlled tank. When it senses a dark area, boom boom on go the lights. Im just using a 9v to power it and you dont want to stare at it. Also rigged it so that I can take it off the tank with its own power supply and use it as a hand held. That is how I made use of the dual power input ends.
- John Ritchie, TX

Great LED Boards 12/24/2016
I received 10 of these today and it did not take long to test them and find out they are a nice unit. The ones I received are a little different than the picture on this site, but they work great. Mine have one resistor at one end. A great feature is the + and - trace also run directly to the other end. This makes connecting several together very easy. As for brightness: You do not want to look at them for very long with 10 volts applied. Even brighter with 12 volts applied. Color temperature must be close to 6,000K. They are very bright white. I can see many uses for these small modules. I think you would also agree they are a great LED board and would be very useful.

VERY NICE OUTPUT 2/17/2015
I HAVE PURCHASED MANY OF THESE TO USE AS EMERGENCY LIGHTING. I USED ONE TONIGHT IN THE LATEST ICE STORM.
- CARL, TN
