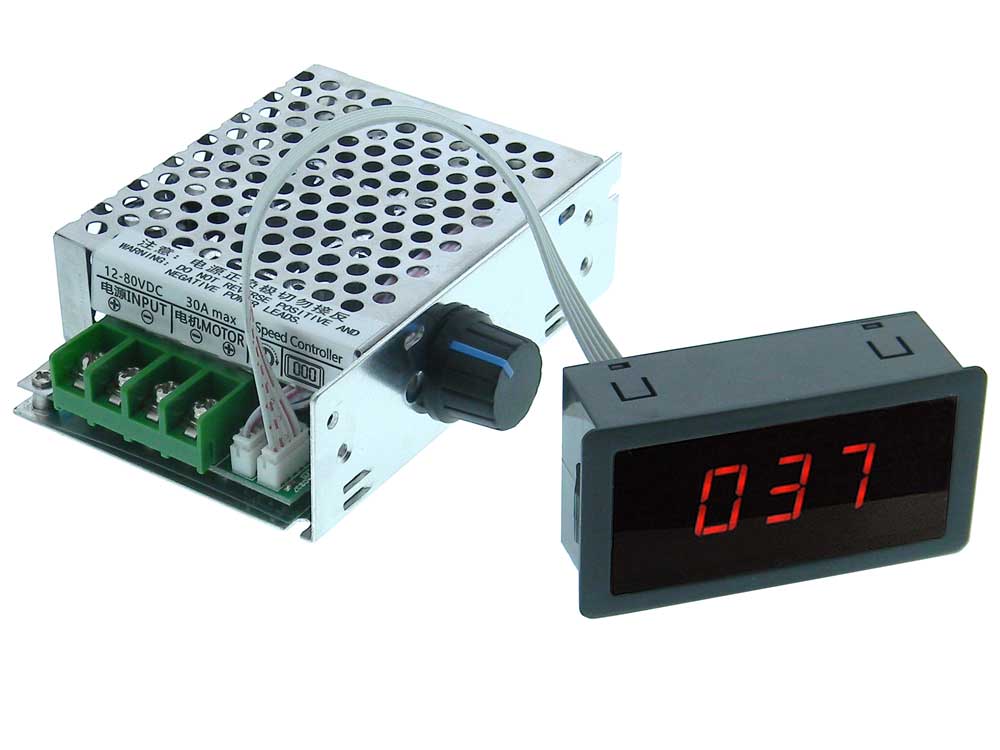

Modular, enclosed, wide range control with "Relative Speed" Display. Uses PWM to vary the speed of DC motors. On-board adjustment pot. Terminal strip for power & Motor connections.
DO NOT REVERSE POWER CONNECTIONS
Input: 12- 80VDC
Output: 20A max. 30A Surge
Recommended: 12V/250W, 24V/350W, 48V/500W
Range: 0%-100% of rated motor RPM
Frequency: 21KHz.
Display: 3 Digit 0.56" LED.
Pigtail: 7in.
Range: 0-100% of Motor Max Speed
25 = 25% 75= 75% of RPM
Display Cutout: L: 2-7/8" W: 1-9/16" Display: L: 3-1/8" W: 1-11/16" D: 1-1/8" Module: L: 4-3/8 W: 3-3/4 O/A H: 1-3/8 WT: .5
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the Prop 65 law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Great power supply ! Building 3 power feeds for my mini mills and lathe. Use only this controller on motors 32575MD and 33085MD , this is a high toque motor. Ive tested all the speed controllers and this is the best.
