4 Line Serial LCD for Arduino

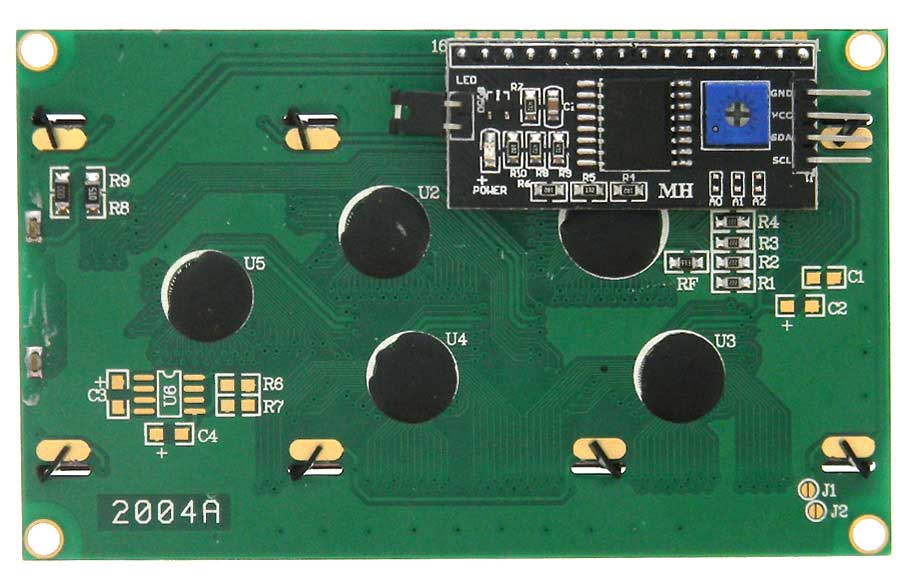

LCM2004 IIC V1 Serial Board LCD using I2C/SPI communication with microcontroller. Installed Backpack board with the PCF8574 chip uses simple 4 wire connection.

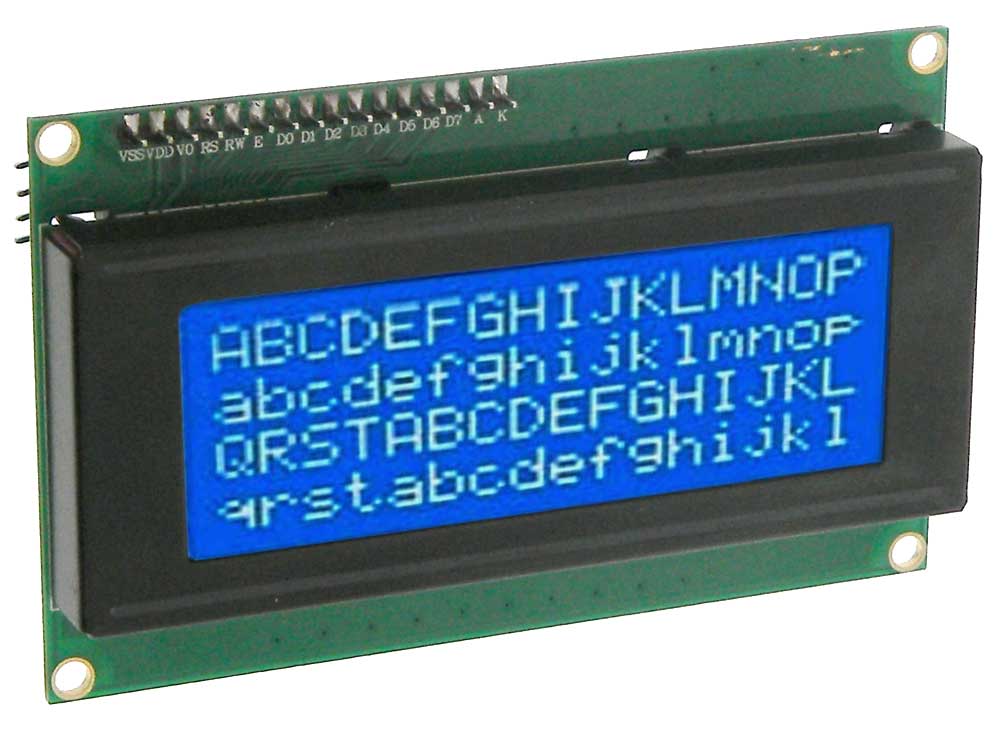

LCD features: 20 character by 4 line LCD module, White characters on dark blue background with White LED backlighting.
Power: +5 volts (supplied by Arduino)
Current: ~<300mA (Includes LED B/L)
Character size: 4.75 mm X 2.95mm
Dot Size: 0.55mm x 0.55mm
Pitch: 0.60 x 0.60mm
I/O: 4 pin header 0.1in Pitch L: 3-7/8” W: 2-5/8” T: 7/8 O/A WT: .2
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Great LCD, but you need to do research on the files for this display. Also, there is a program out there for the Arduino to read the address of the device.
TX
Very clear display
Very clear and durable LCD Display, all of the letters are very easy to see.
