2 Position Switchboard Switch, DPST 1NO & 1NC


2 Position Switchboard Switch, DPST 1NO & 1NC
Images/35087-large.jpg Images/35087-1.jpg Images/35087-2.jpg   California Proposition 65 Warning
Stock Number: 35087 SW
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$5.95


Availibilty: In Stock   Units: 60
Quantity



SHARE

     Email this to a friend

Detailed Description

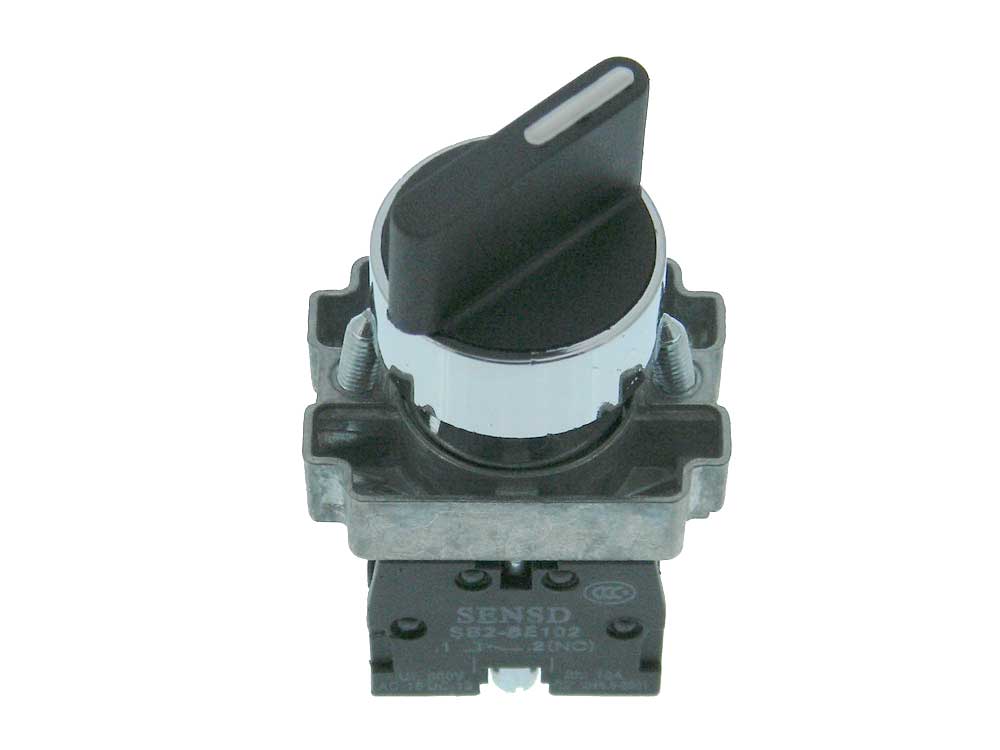

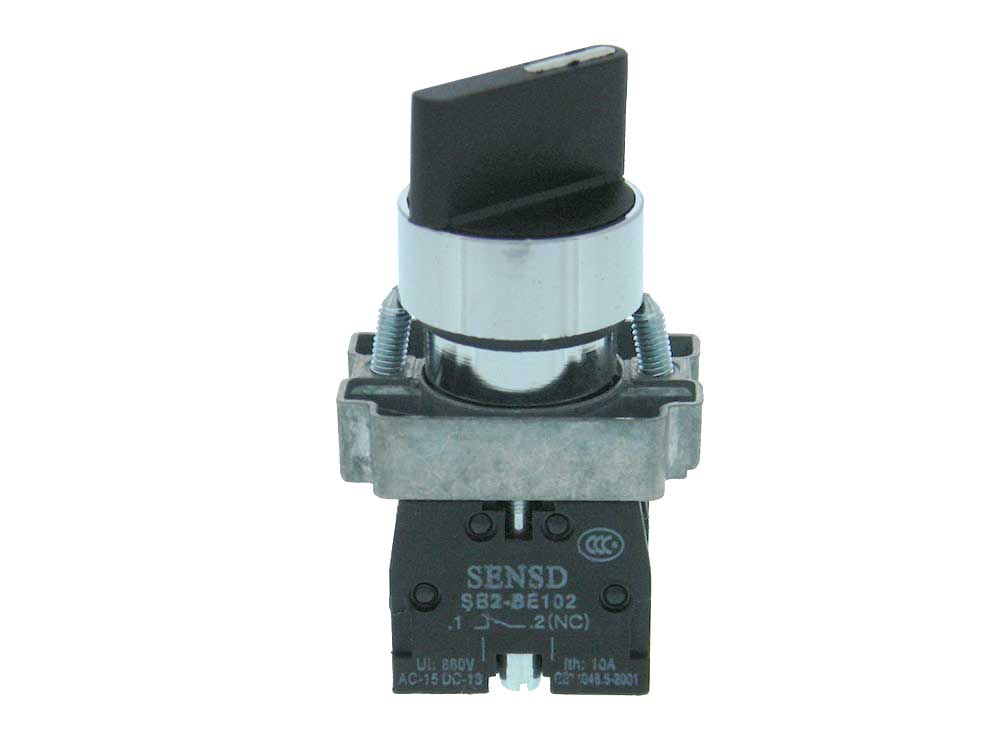

2 Position Industrial Rotary switch with 1each SPST-NO & SPST-NC contacts & Chrome Bezel.
Supplied with 1 NC & 1 NO contact modules.

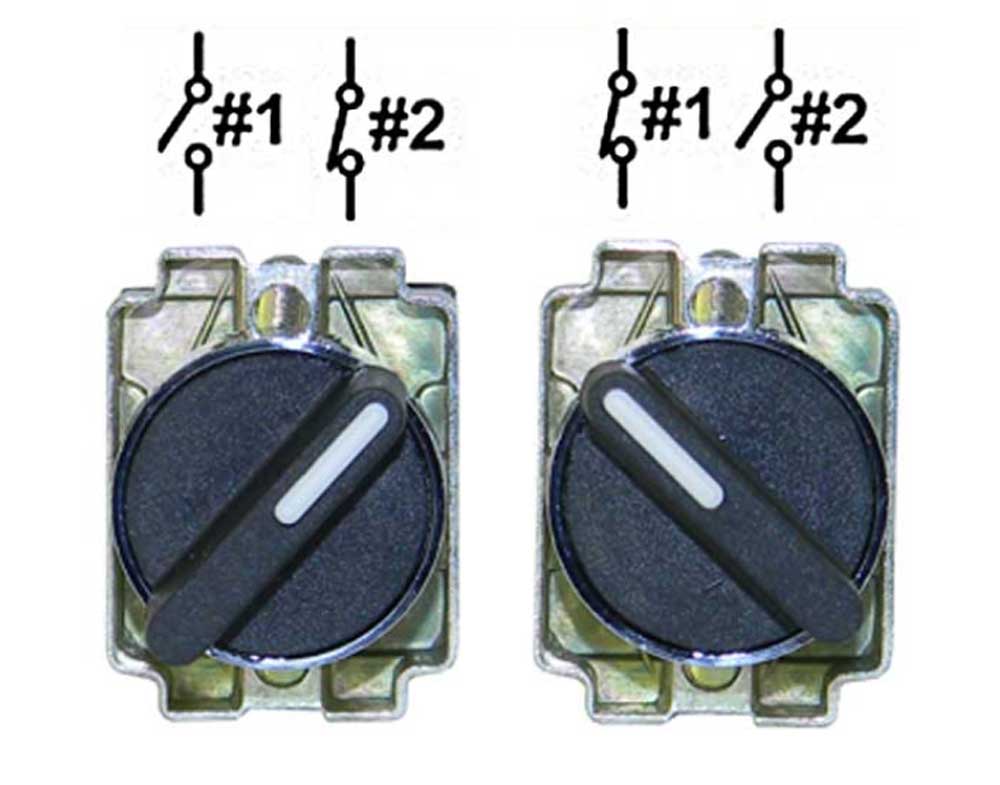

Can be wired as a SPDT ON-ON
Modular construction with changable switch modules.
Rated 15A@125V. Screw terminals.
Mounts in 22mm hole.
Will hold up to 2 aditional modules as listed below.
L: 2-3/4" W: 1-1/2" D" 1-1/8" WT: .18

Additional Switch Modules
35090-SW SPST-NO Momentary Module ($1.95)
35091-SW SPST-NC Momentary Module ($1.95)
