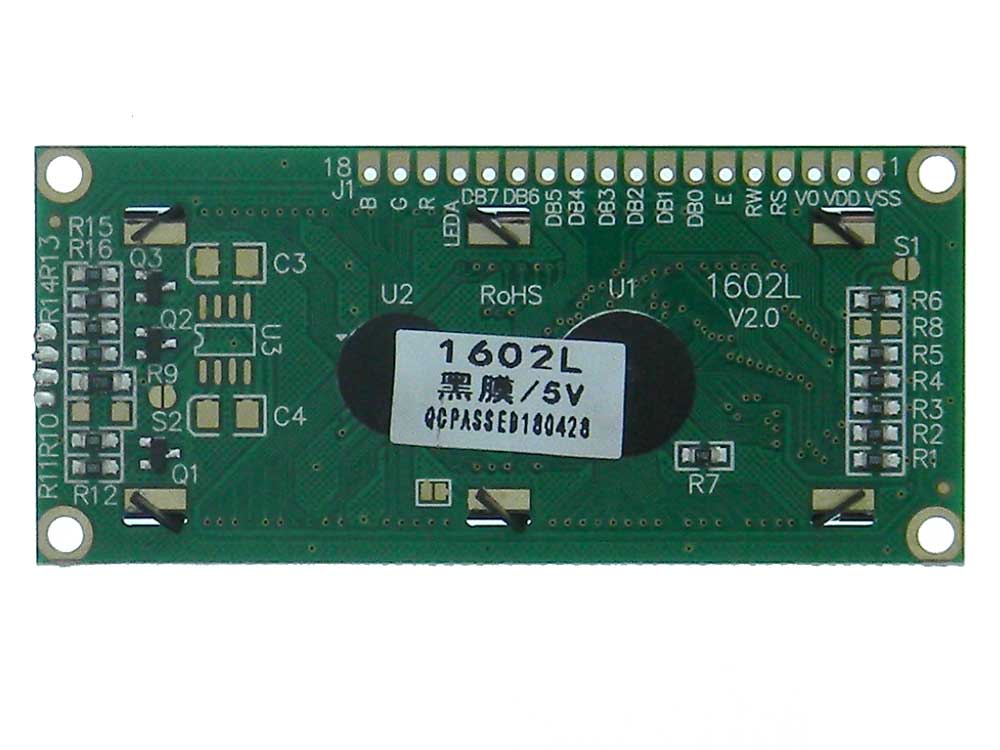

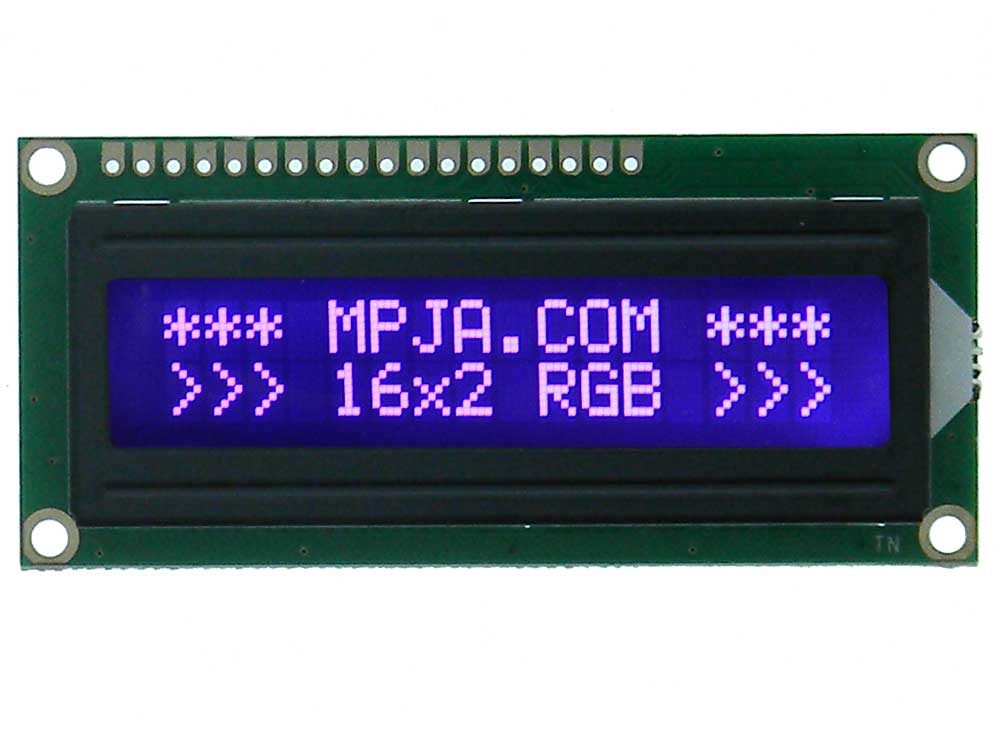

P/N: 1602L V2.0
Resolution: 2 Lines X 16 Character
Char. Size: 2.95 X 5.15mm
Dot Size: .55mm X .60mm
LED Power: 5VDC

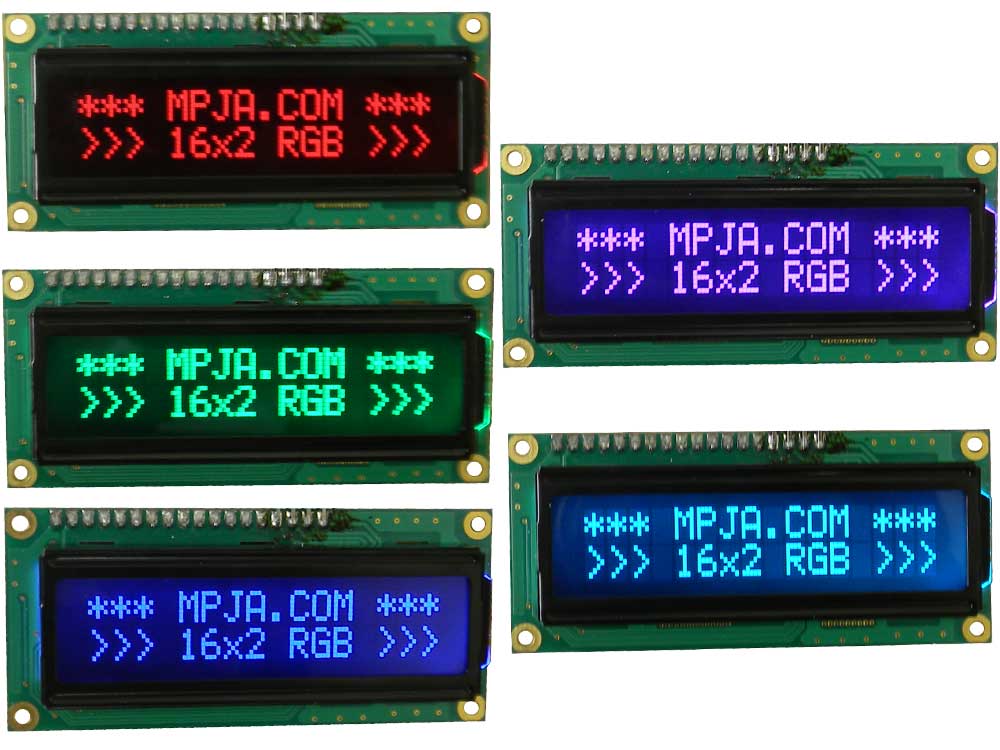

RGB LEDs with Common Anodes
Specifications/Features: 5 X 7 + cursor with RGB LED backlite (Only one color at a time) Dot Matrix display with built in controller equivalent HD44780 (SPLC780C) & drivers. 8 Bit Parallel interface. Requires single +5V for logic and LCD drive L: 3-1/8" W: 1-7/16" T: 7/16" WT:.09
