2 In 8 Out Connector Terminal Block


2 In 8 Out Connector Terminal Block
Stock Number: 38422 TS
  Be the first to review this item
$5.95
$4.95


Availibilty: In Stock   Units: 41
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

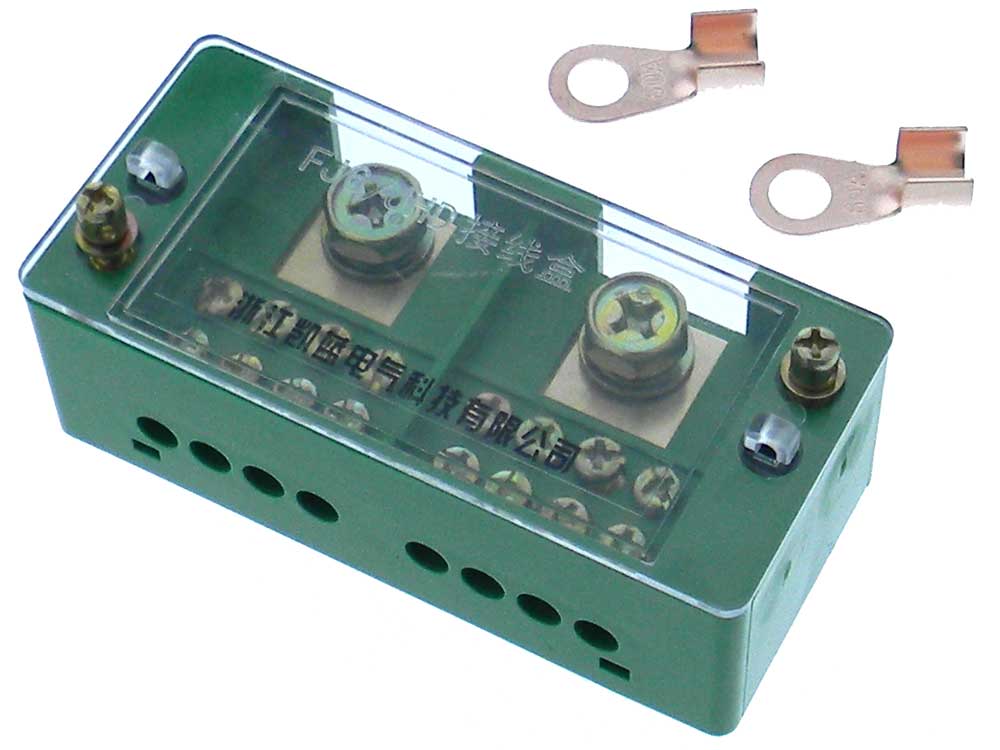

Heavy Duty, Polycarboate Junction Block with cover.
2 independent Input Terminals 4 Output Terminals for each Input.
Solid Brass terminals.
Max Voltage: 660VAC 50/60Hz
Total Current:<200A
Branch Current: 30A Max
Input Mains Connection: M8x1.25 Bolt
Suggested Wire Range: 4-25mm˛ (2x60A terminals Included; You May need larger. Not Supplied)
Output: Clamp Screw M4x0.7
Output: Wire Range: 2.5-10mm˛
Operating Temperature: -40C TO 120C
L: 99mm (3-7/8") W: 45mm (1-3/4") H: 40mm (1-3/8") OA
WT: .4
