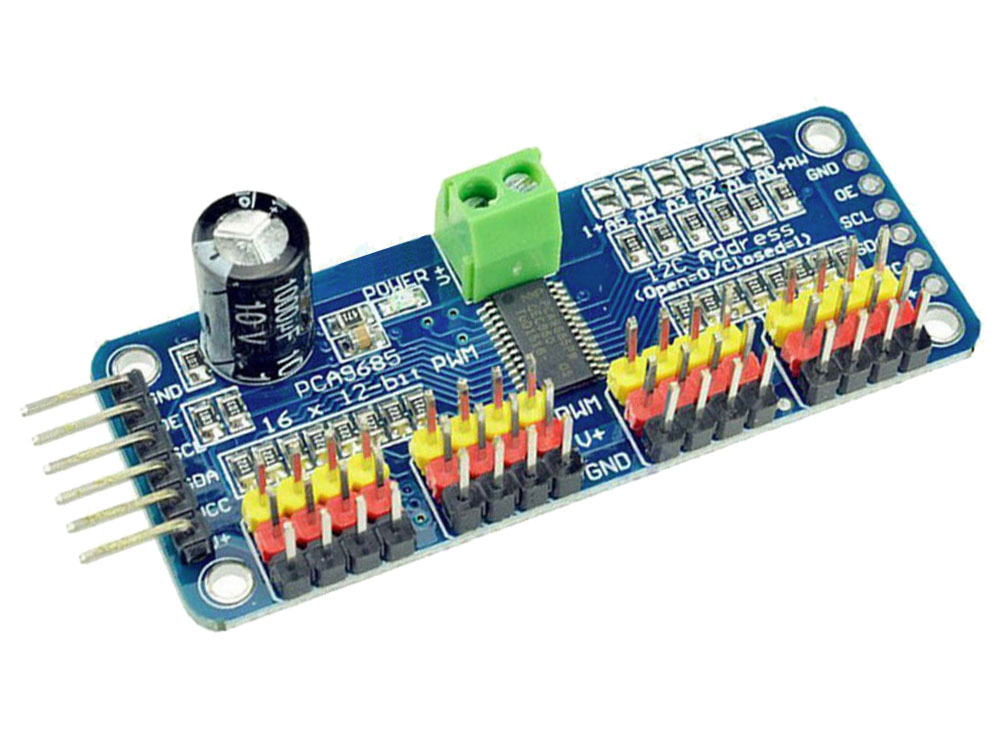

Breakout Driver board for 3 wire servos. Note: Board requires control Input from a Arduino or other microcontroller that you program
On-board PCA9685 dedicated controller provides 16-Channels of 12-bit PWM to drive all 16 channels with no additional microcontroller processing overhead. 6 address solder jumper for simple end-to-end cascade up to 62 boards (992 servos.)
Green LED Power Indicator
Power: 3-5V for easy connection to controller power also provides 3-5V to SCL/SDA pullups.
V+ & GND Terminal block for servo power up to 12V (DO NOT Connect 12V to Vcc pins)
16 x 3 0.1pitch headers for servo connections (V+, PWM,, Gnd)
0.1" pitch holes/header for cascading boards
Output Enable input to disable all outputs. When Low (0) all servos are enabled (low by default). Each PWM runs independently but all have the same PWM frequency.
Max current: 25mA/ Output L: 2-7/16" W: 1" H: 11/16" WT: .02
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
The datasheet has only the addressing part of the schematic. It is insufficient to see the microprocessor board inputs and the on-card micro wiring. A table of what has to be supplied to the board for each PWM value is also needed. It is insufficient data to make use of this part. An instructional video would also be nice.
