150W Square Wave Inverter - 12VDC To 110VAc / 220VAC


150W Square Wave Inverter - 12VDC  To 110VAc / 220VAC
Stock Number: 36929 PS
  Be the first to review this item
$10.95


Availibilty: In Stock   Units: 12
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

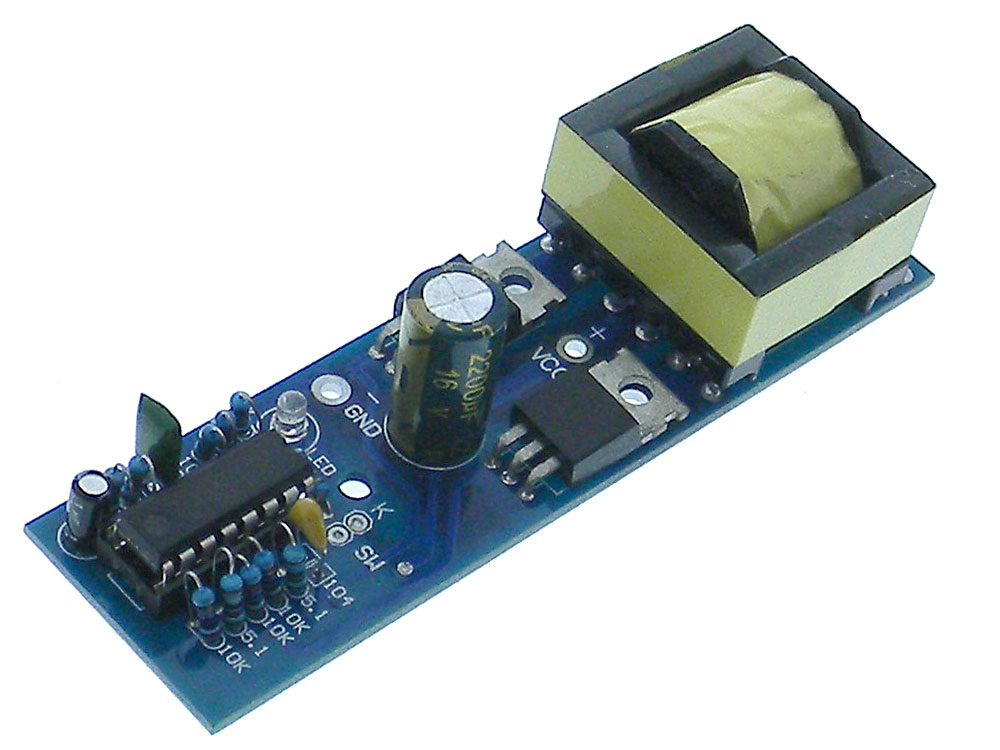

Small strip inverter front stage voltage booster.
Solder Pad connections for SPST ON/OFF switch or Jumper
NOTE: Required for Operation
Output waveform: High Frequency Square Wave.
Output frequency: ~20KHz NOTE: NOT 60Hz
Power: 50-150W Require Heatsink above 100W
(Transistors Need to be ISOLATED on Heatsink)
Input: 12V DC
Quiescent Current: ~ 0.05A

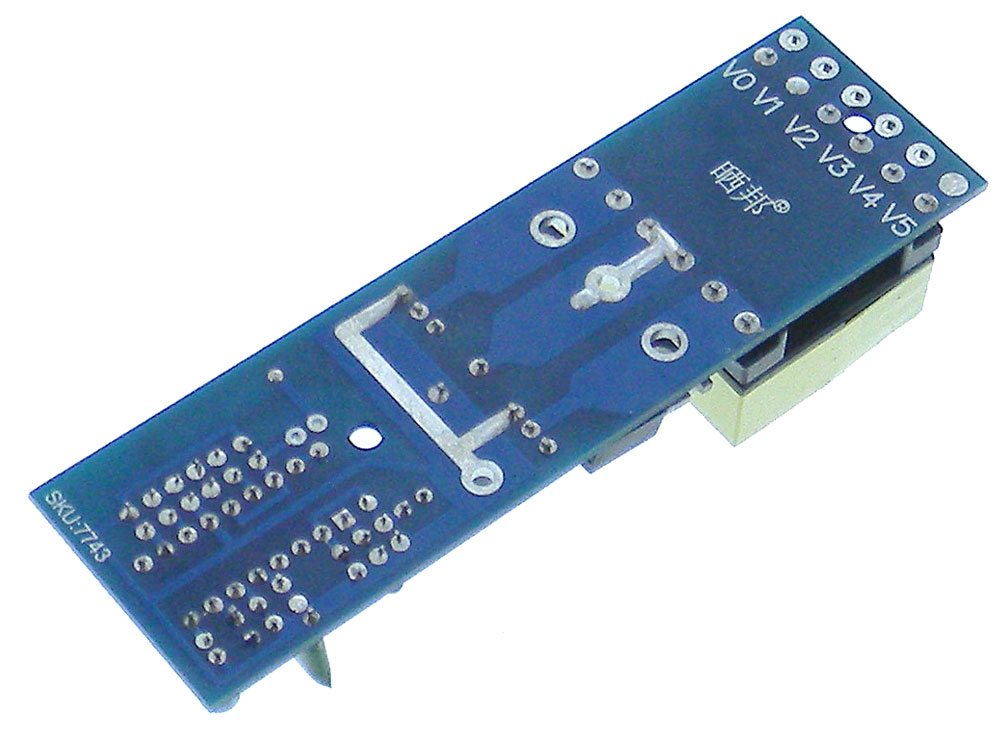

Connections: Solder Pads
Output:
V0--V2=110V V0--V3=175V
V0--V4=200V V0--V5=220V
V5--V4=20V V5--V3=45V
V5--V2=110V V4--V3=28V
V4--V2=90V V3--V2=62V
L: 3-15/16" W: 1-1/8" HT: 1" WT: .15
