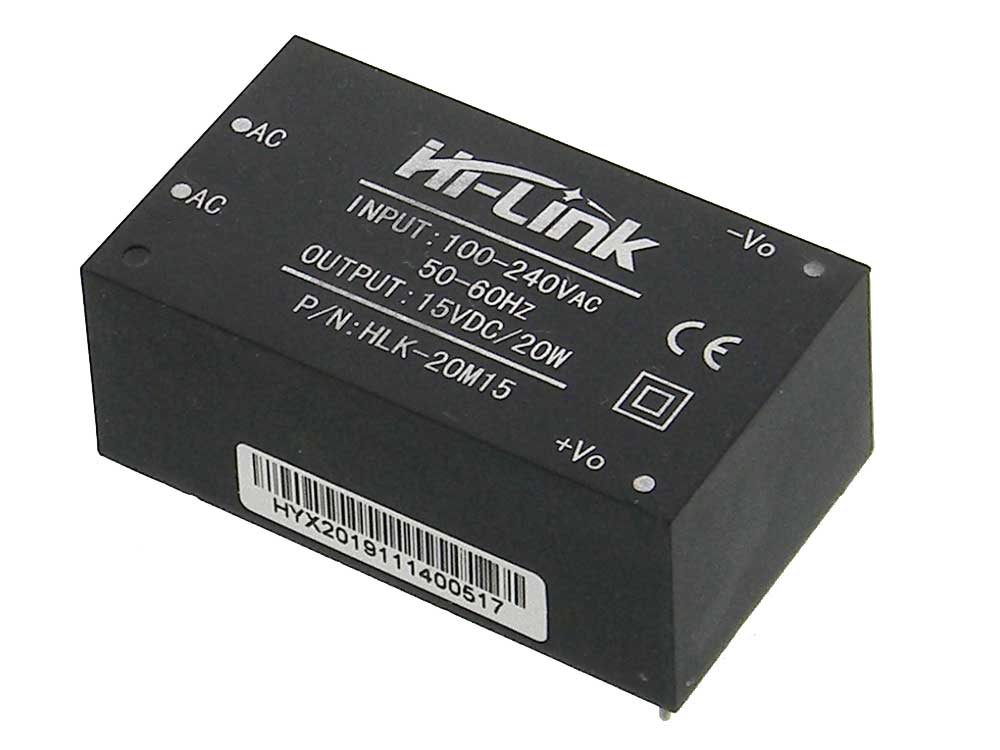

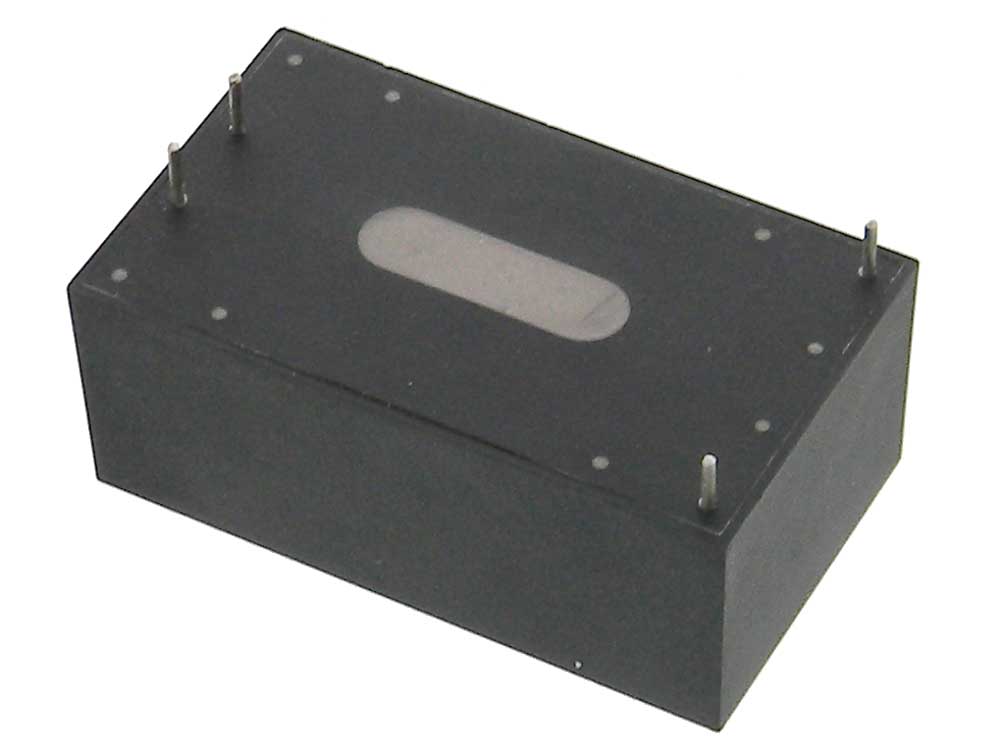

15 Volt - 1.3A - Power Supply Module - 100-264VAC Input
MFG: HiLink P/N: HLK-20M15 INPUT: AC: 100~264V 50/60Hz Output Voltage: 15VDC ( ± 0.2V)
Voltage Regulation: +-0.2%
Output Current: 1300mA (1.3A)
Load Regulation: +-0.5%
Ripple/Noise: < 150mV
Specifications & Features:
PC Board mount
Operating Temp: -25°C to +50°C
IP65 Rates, Isolated, 20W micro size, switching power supply with temperature, overcurrent & Short circuit protection.
CE Listed L: 2-1/4" W: 1-1/4" H: 1" WT: .2
