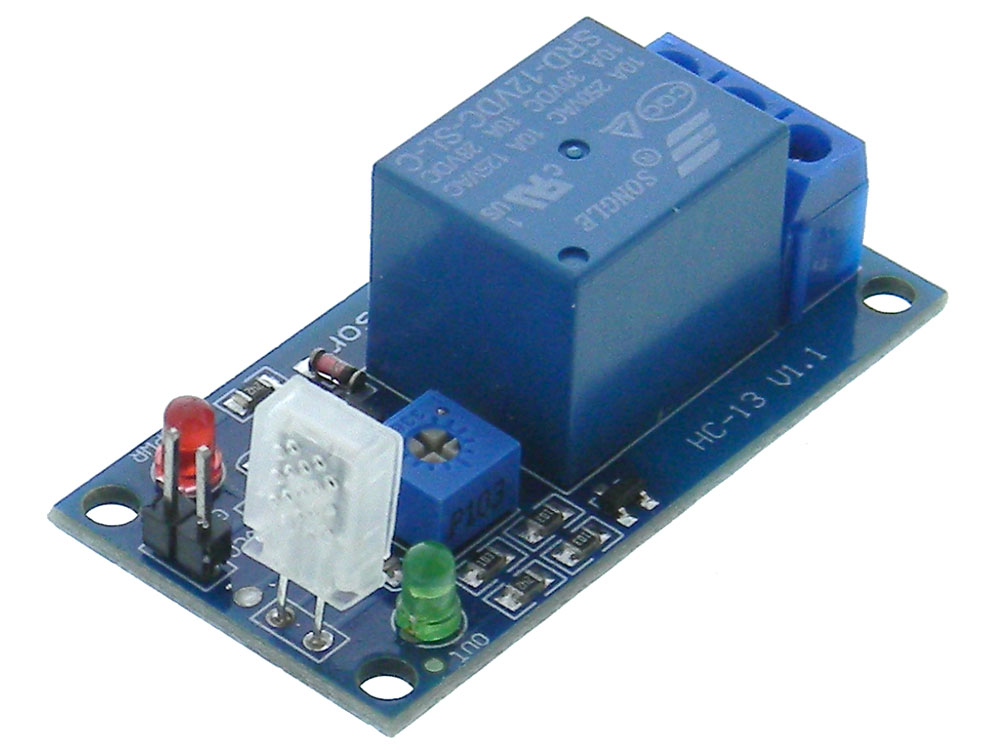

12VDC Humidity Sensitive SPDT Relay Module


12VDC Humidity Sensitive SPDT Relay Module
Stock Number: 37995 MI
  Be the first to review this item
$3.95


Availibilty: In Stock   Units: 42
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


Adjustable Humidity detector control module.
Power: 12VDC @ ~10mA Idle/<50mA Activated
Connections:
Power: 0.1" Pitch Header Pins
Relay: Terminal Strip
When the threshold is reached (Humidity >Setting), the relay is energized, the Common terminal is connected to the Normally Open terminal. When Humidity is lower than the threshold, the relay is de-energized, and the Common terminal is connected to the Normally Closed terminal
Indicators: Red LED; Power On
Green LED: Relay energized
Relay: SPDT
Rated: 10A @ 250VAC/30VDC.
L: 1-15/16" (50mm) W: 1" (26mm) H: 3/4" (19mm)
WT: .02
