MFG: BUEHLER
P/N: 1.61.046.116.00
COIL: 12-24VDC

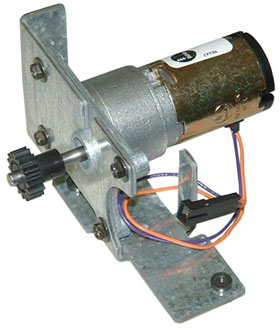

Gearhead DC motor rated:
24V/.064mA NL/1.55A Stall/81RPM
12V/.058mA NL/.45A Stall/40RPM
5mm dia. X 30mm steel shaft with a 20mm,16 tooth, plastic gear held by a roll pin. Removable heavy steel bracket & a non-removable cast metal secondary bracket with four 6-32 threaded mounting holes. 3" leads.
L: 3-1/2" (Body) Dia: 1-3/8" WT: 1.25
