12V - 4.7" Box Fan & Speed Control


12V - 4.7
Stock Number: 36901 FN
 Review Average:
 Number of Reviews: 3
 View ReviewsReview this item
$8.95


Availibilty: In Stock   Units: 43
Quantity



SHARE

     Email this to a friend

Detailed Description

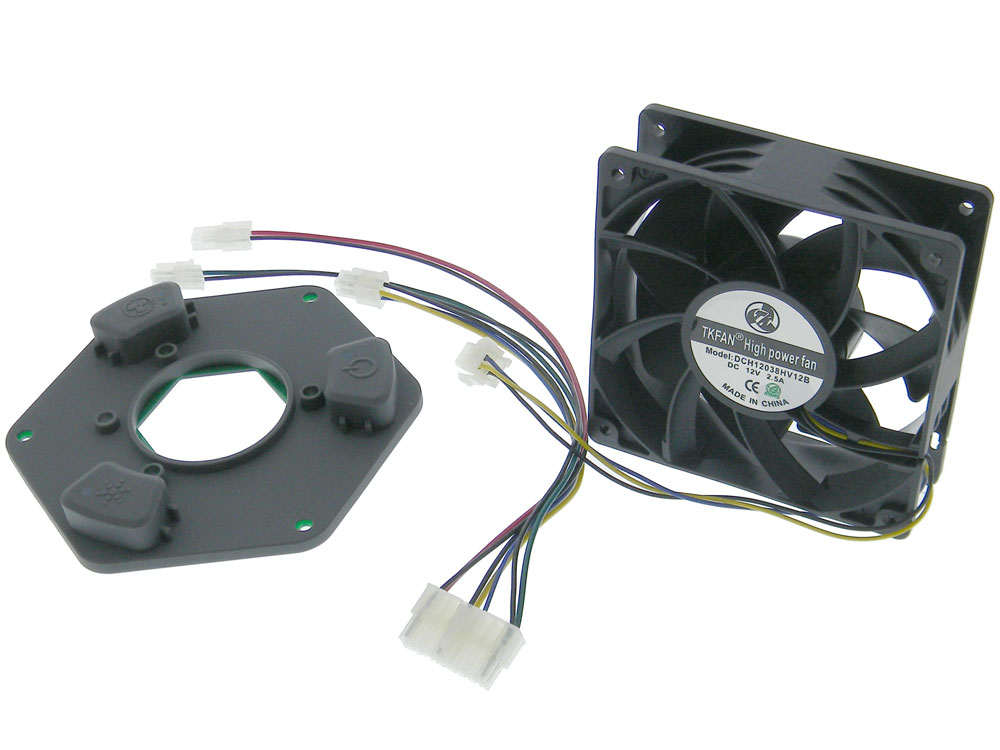

Combo of a 12VDC, 4.7" sq x 1.5" Box fan with a controller.
Control provides Power ON/OFF, LOW-MED-HIGH Speed Selection.
Fan Defaults to Off when power is removed, Speed Sequence is: High/Med/Low/Off---Repeat---
Volts: 12VDC
FAN: Ball bearing with Plastic blades & housing.
Current: 2.5A max
CFM: ~285 max
Noise: ~72db
CONTROL:
Top sealed rubber pad with Power Switch with LED, Fan Speed Select switch with LED Indicators and a ?? unknown Switch.
2X8 connector on back.
17" mating fan leads, 12" power leads
5-3/4" Across Face x 7/8 thick Body (1-1/4" O/A)
WT: 1.1


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Very impressed!!!
I am very impressed with the fan and the control board! Fan moves an impressive amount of air. I also like how the fan ramps up slowly and think that this is done to keep the fan from pulling a bit of power to start. I did end up hooking my Tektronix 561A scope to the PWM wire, and measured the frequency which was 24.7Khz with a 2.6V square wave. I purchased 3 more of the fans alone hoping that I can make a custom fan speed control!
- Brenda, IL

Not a review but a guess about extra function
I wonder if the cooling function is for a Peltier device?
- Michael, WA

Nice unit, moves a lot of air
I hooked 2 fans in parallel to one control unit. Moves a lot of air, so it is a little loud.
chriso
