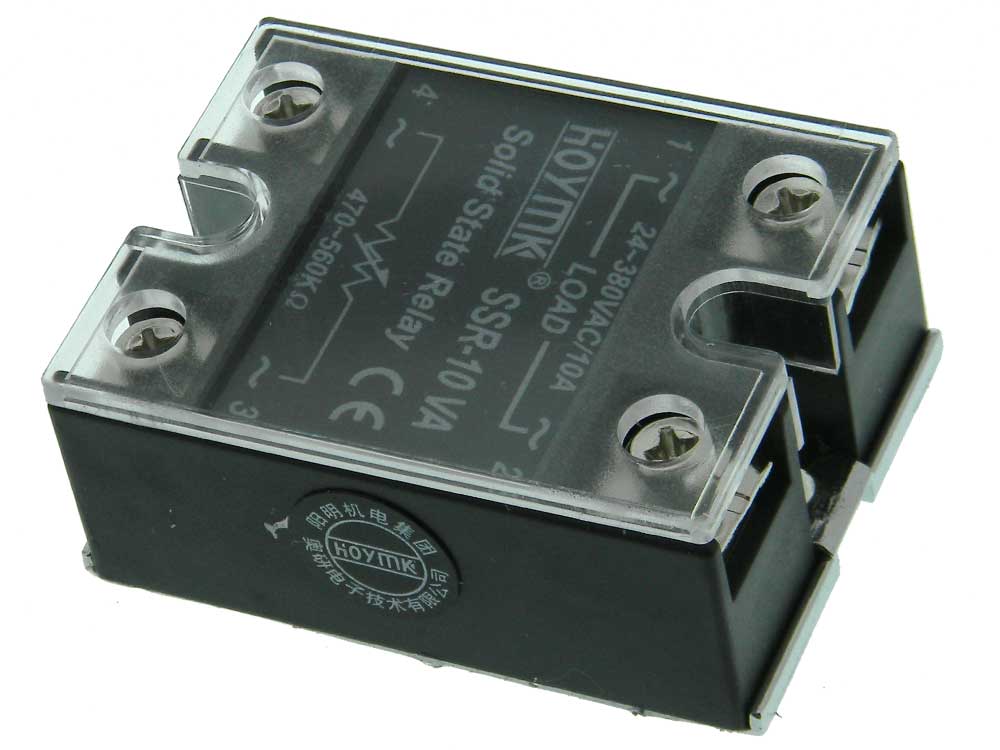

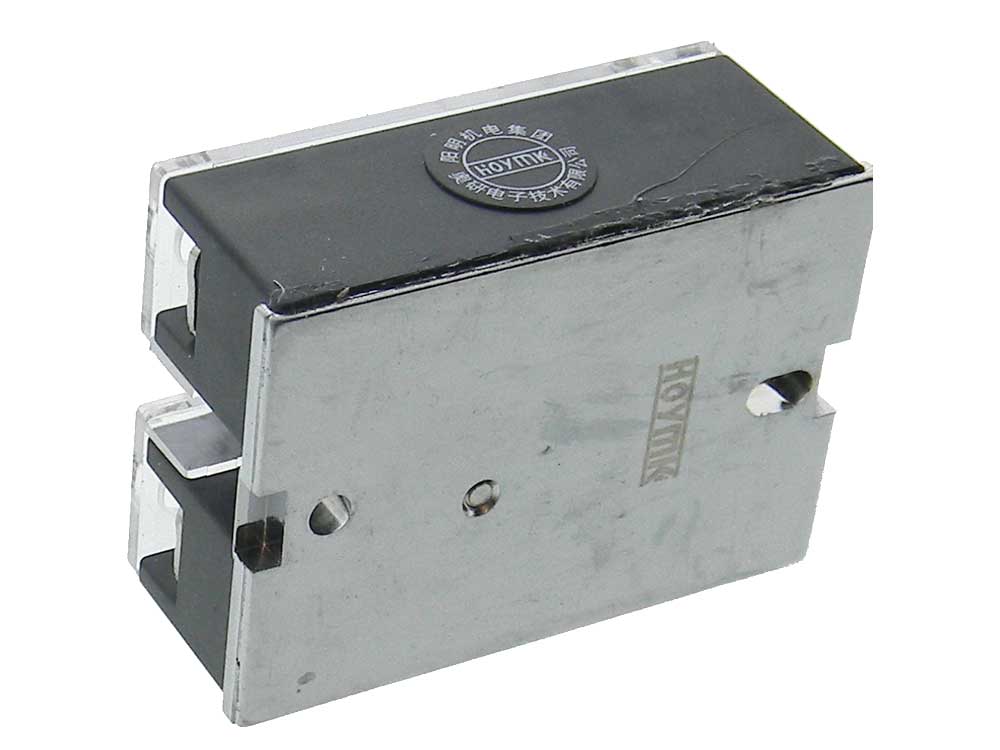

10A AC Solid State Phase Controlled Relay


10A AC Solid State Phase Controlled Relay
Images/33988-large.jpg Images/33988-1.jpg   California Proposition 65 Warning
Stock Number: 33988 RL
  Be the first to review this item
$8.95


Availibilty: In Stock   Units: 18
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

MFG: HOYMK
P/N: SSR-10VA
OUTPUT RATING: 24-380VAC @ 10A (On Heatsink)
Phase Controlled, Opto-Isolated, Solid State Control Module.
Resistance controls Output ON Time.
CONTROL RESISTANCE:
250K Ohm @ 110VAC
500K Ohm @ 220VAC
1M Ohm @ 380VAC
ACTION: SPST Adjustable ON time AC Loads Only
Screw terminals. CE Listed.
L: 2-7/16” W: 1-3/4” H: 1” WT: .3
