10 Segment - 4-color LED Bar Display


10 Segment -  4-color LED Bar Display
Stock Number: 37890 OP
  Be the first to review this item
$1.50


Availibilty: In Stock   Units: 307
Quantity



SHARE

     Email this to a friend

Detailed Description

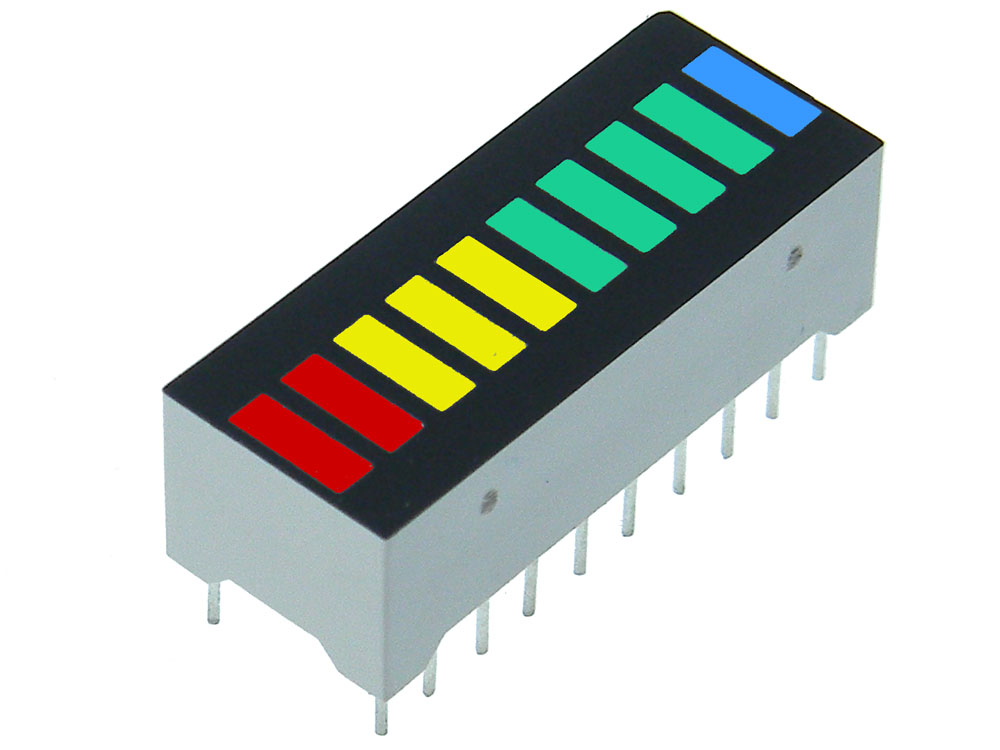

Bargraph style LED Display contains 10 individual LEDs;
one Blue, four Green, three Yellow and two Red
Suitable for battery indicator, power level etc.
NOTE: LEDs Only NO Driver Electronics

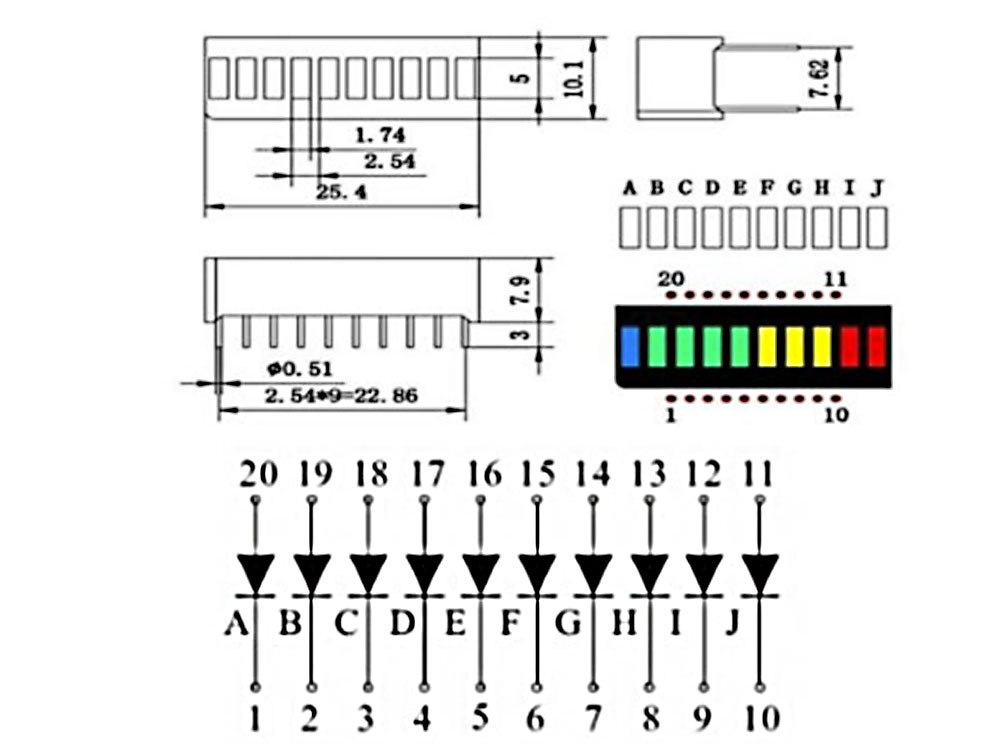

Beveled Case Corner=Pin 1 (Blue LED Cathode)
Pitch: 2.54mm

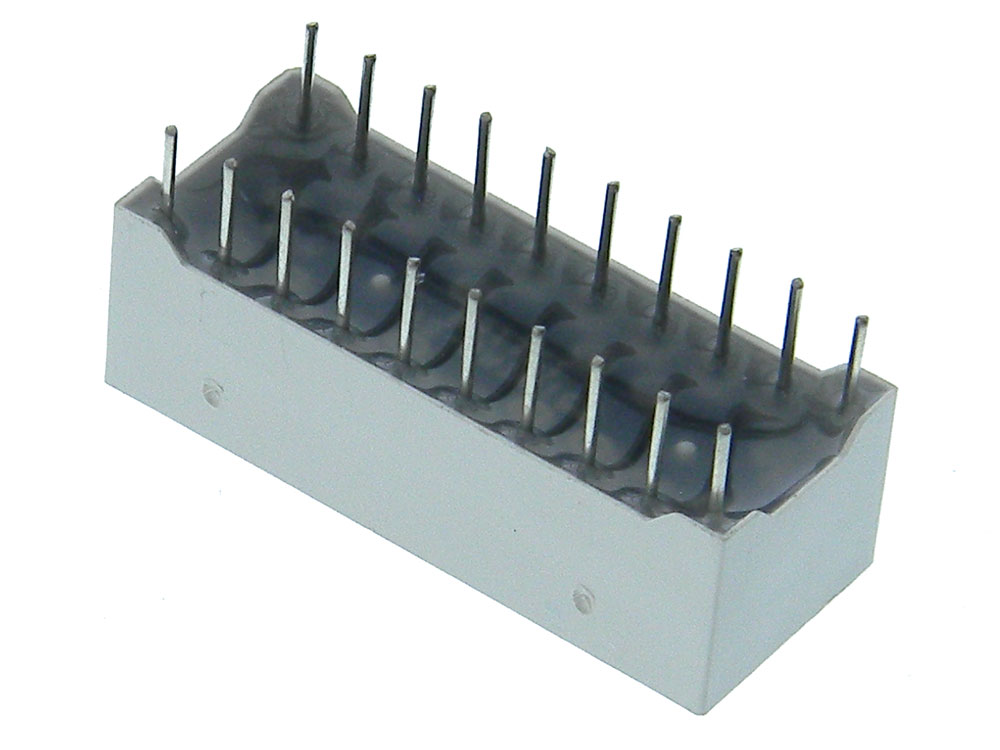

Pins: 20
Forward Current: 15mA/LED max
Forward Voltage:
Red: 2.5V/Yellow: 2.0V/Green: 2.8V/Blue: 3.0V
Reverse Voltage: 5V (Max)
L: 26mm W: 10.5mm H: 8mm O/A WT: .006
