Requires a separate Power Supply

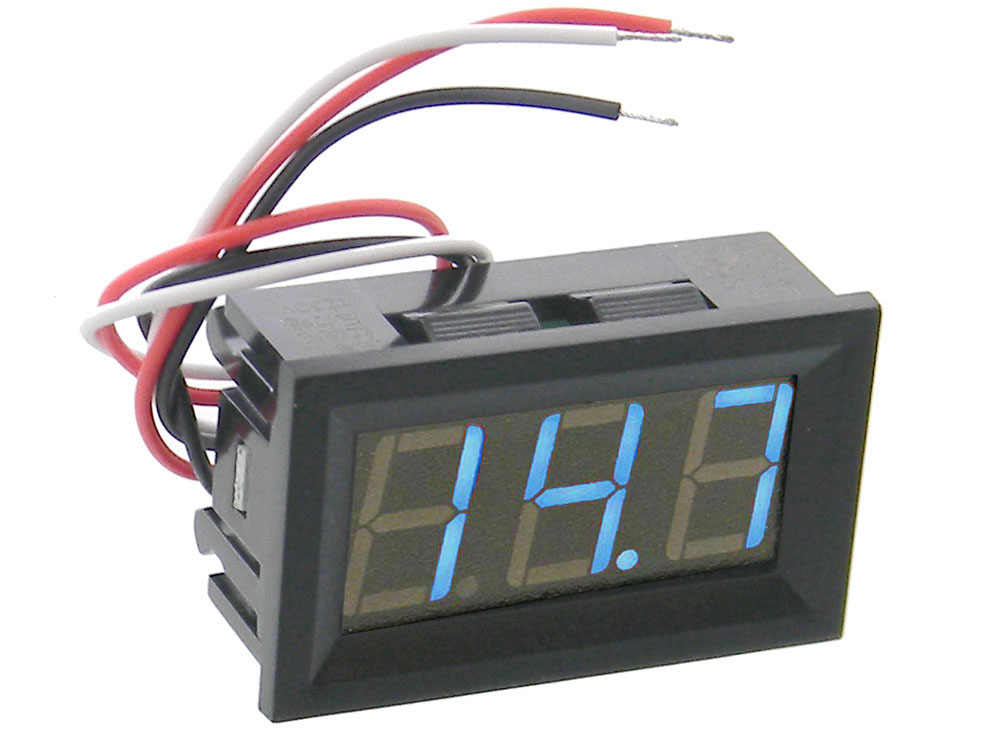

3 wire, Snap-in, 3 digit Blue LED panel Voltmeter for monitoring in battery, solar and control circuits.

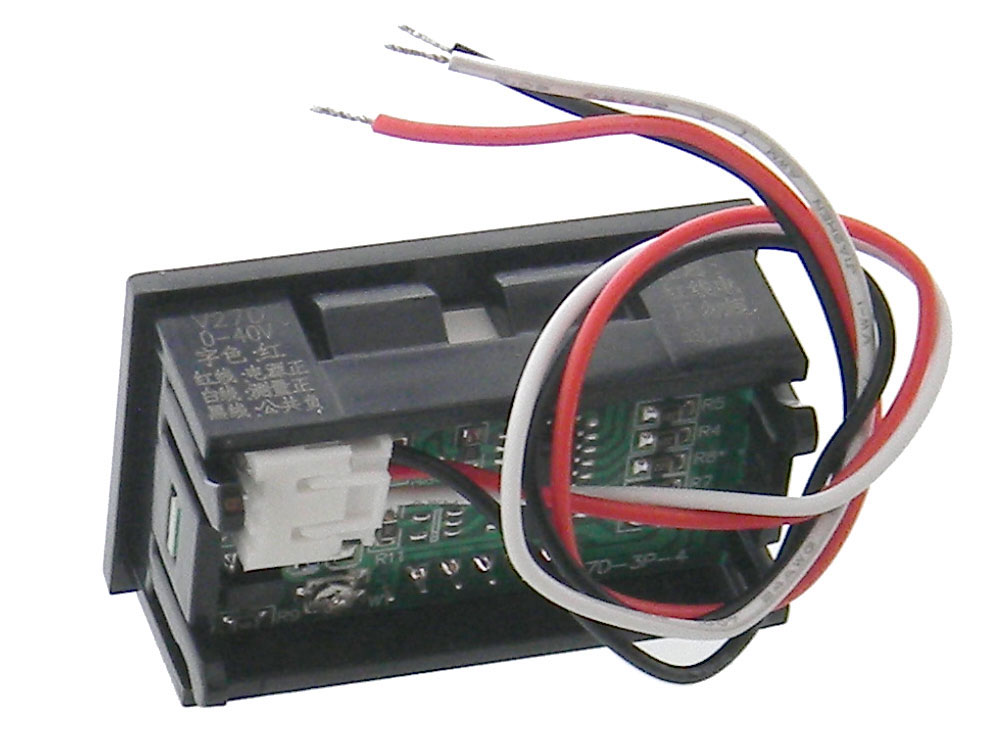

For + Voltage only; Note: Power & Input Share the Common Black lead Black Wire: Power Supply - & Input - Red Wire: Power Supply + 5 to 30VDC White Wire: + Input
Supply Voltage: 5-30VDC
Metering Input Range: 0-40VDC
Character Height: .56"
Cutout Size: 46mm X 27mm
7in. leads W: 1-7/8 H: 1-1/8 D: 7/8 WT: .04
