0-100VDC 4 Digit Red LED Panel Meter 3 Lead Snap-in


0-100VDC 4 Digit Red LED Panel Meter 3 Lead Snap-in
Stock Number: 37706 ME
  Be the first to review this item
$4.95


Availibilty: In Stock   Units: 58
Quantity



SHARE

     Email this to a friend

Detailed Description

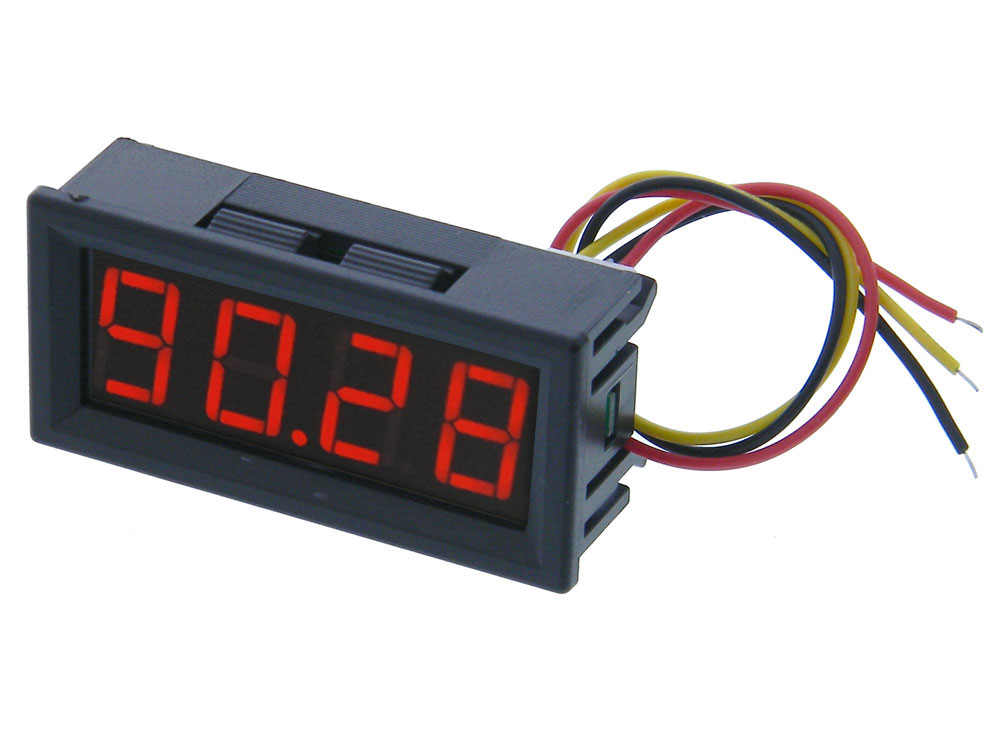

Mini snap-in, 3 wire, 4 digit LED panel Voltmeter. Ideal for monitoring in battery, solar and control circuits.
Operating Voltage: 5-30VDC (12V Nom)
Measurement Voltage Range: Auto 0 to +100.0V
(No - readings)
NOTE: Requires Separate power Supply if Input will exceed 30VDC.
(Common Input & Power: Measurement Range: 5-30V)
Accuracy: 0.3% +- 2LSD
Refresh Rate: 3/Sec
Character Height: 0.56in.Mini 4 Digit LED
Connections:
Red Lead: Meter Power Input + Positive
Black Lead: Meter Power & Measurement Input - Negative (Common)
Yellow Lead: Measurement Input + Positive
6in Pigtail Leads

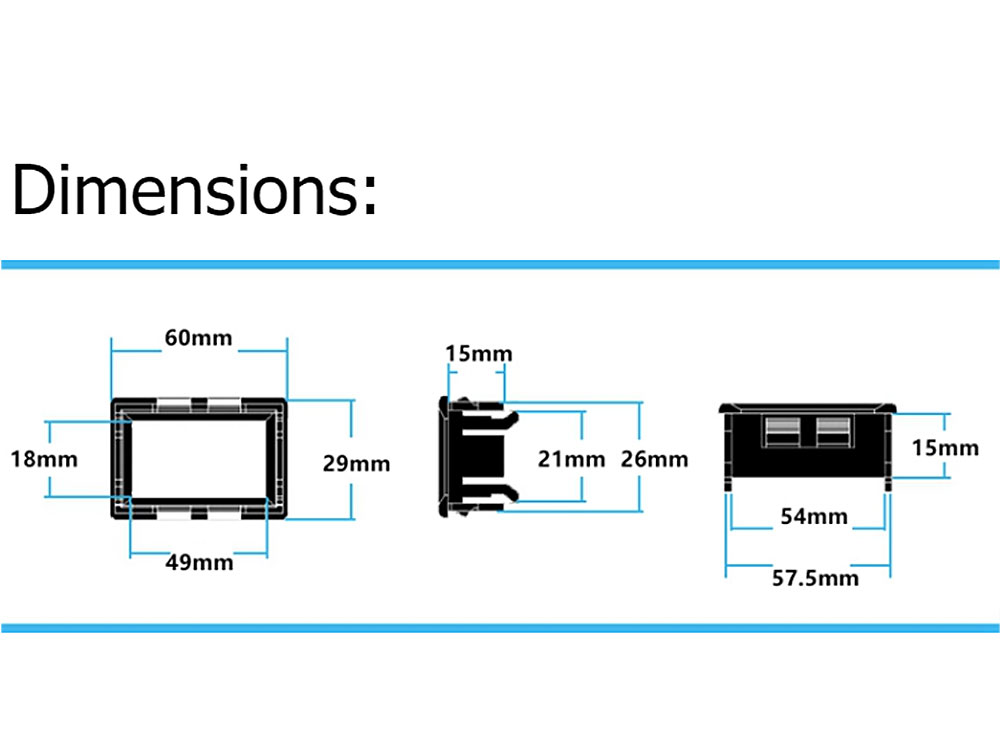

Cutout: 57.8mm x 26mm
W: 60mm (2-3/8") H: 29mm (1-1/8") D: 23mm (3/4") WT: .04
