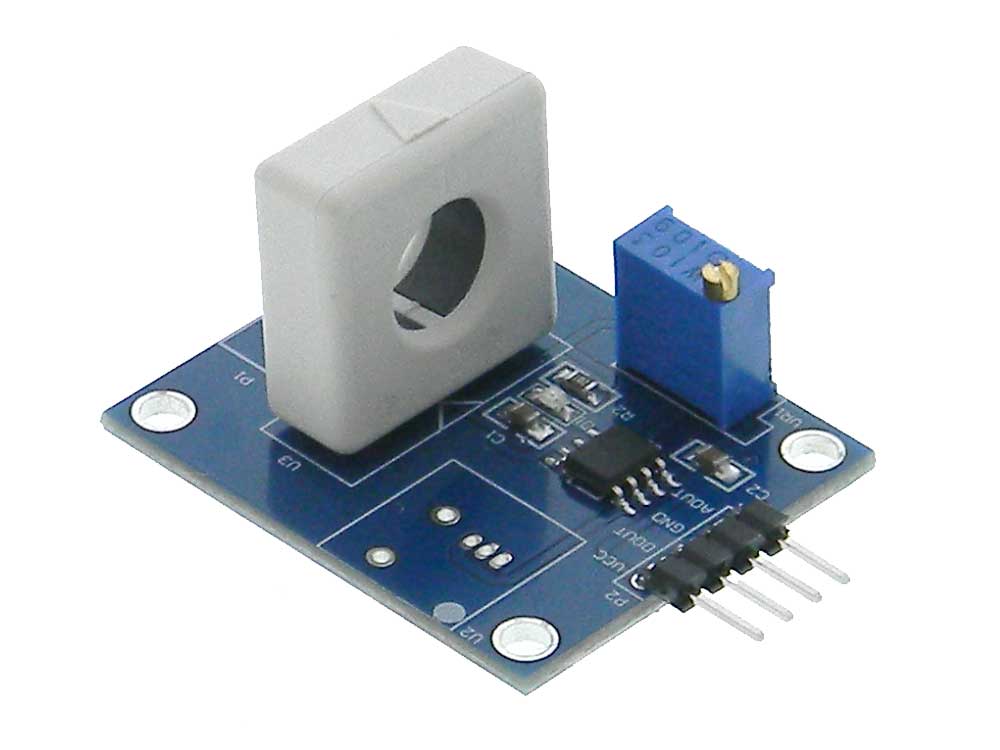

+- 35A DC, 25A AC RMS Over Current Sensor & Alarm

+- 35A DC, 25A AC RMS Over Current Sensor & Alarm

36213-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 36213 MP

Be the first to review this item
$10.95


Availibilty: Out of Stock
Call 800-652-6733 for availability date
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).
View PDF Data Sheet
DATA SHEET


+-35A Current Detector/Sensor Module with Overcurrent alarm.
Dual outputs provide for an analog output for use by microcontrollers or monitoring equipment and a adjustable Digital (TTL) set point output that can be used to trigger an alarm. When the actual current value is greater than the preset current value, DOUT will change from a low to high level as Indicated by LED indicator (Current > than Set Value LED is OUT )
Specifications:
Power: 5VDC
Current Detection Range: DC: +- 35A; AC: 25A RMS (for analog output)
Analog Output: +- 60mV/A Centered on 1/2 Vcc
Sensitivity: K = 60mV/A;
Current Alarm Range: Adjustable 0.5A-35A
Digital Out: ~15mA/ TTL level with LED Indicator
