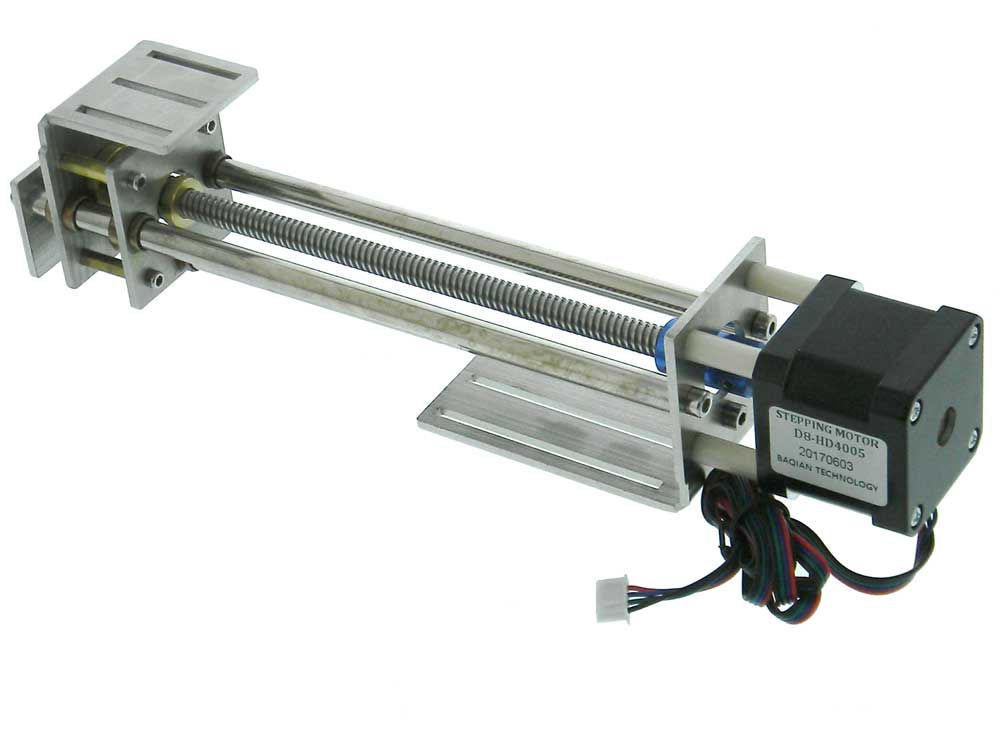

"Z" Axis CNC/3D Printer Motor Assembly 150mm



34344-large.jpg  360-3D.jpg
Stock No: 34344 MI

Be the first to review this item
$79.95


Availibilty: In Stock   Units: 18
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
Linear slide module generally used for the Z axis in engravers, CNC machines or 3D Printers.
NEMA 17 Motor, Steel glides with Stainless Mounting Plates.
Travel Length: ~15cm (150mm)
Leadscrew: 8mm Dia. T8X2-2 Start, 4mm lead
Brass Anti-backlash Travler Nut
Ratio: 1 Rev = 4mm slide movement
1 Step= .02mm slide movment
Motor: NEMA 17/Size 42, 2 Phase 4 lead
Step Angle: 1.8deg.
Coil: 2.2VDC/1.7 Ohms/1.8mh
Base Plate: L:80mm W:42mm with 65mm Slots for M3 screws
Traver Plate: L:45mm W: 42mm With 30mm Slots for M3 screws
Motor Leads: 30 with 4 Pin XH2.54 connector
L: 10-5/8" O/A H: 2-5/8" O/A T: 1-3/4" O/A WT: 2
