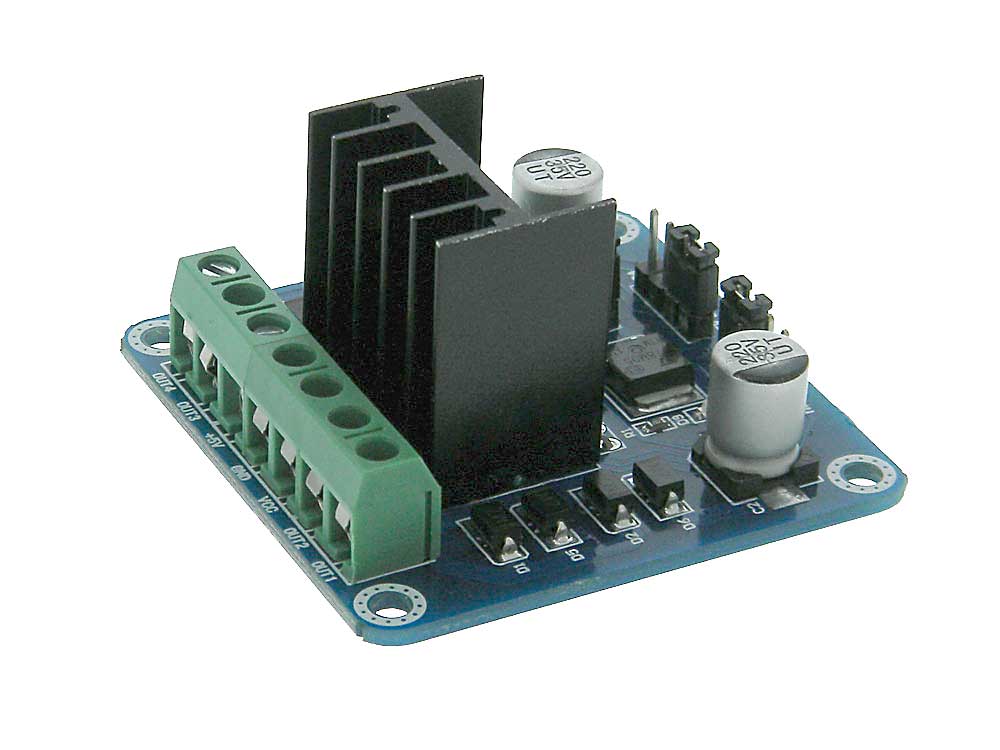

Stepper and DC Motor Driver Module, 2A, L298

Stepper and DC Motor Driver Module, 2A, L298

34692-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 34692 MP

Be the first to review this item
$3.95


Availibilty: In Stock   Units: 57
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet
DATA SHEET


Utilizes the L298 IC driver to power motors, solenoids and the larger NEMA 14-23 steppers. Designed to be driven from a Arduino or other micro controllers. Freeware available through www.arduino.cc.en
Drive Type: Dual “H” Bridge
Logic Power: 5VDC
Driver Power: 5-35VDC
Input Signal: TTL logic
Max Current: 2A/Phase (Max total power: 25W)
Onboard 5V regulator can be activated to supply Logic power when Driver Power input is between 7-35V
.1in Header pins for Logic input, Power Select
Terminal strips for Motor leads & Power.
LED for 5V Power
SQ: 1-15/16” H: 1-1/8” WT: .06

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)
