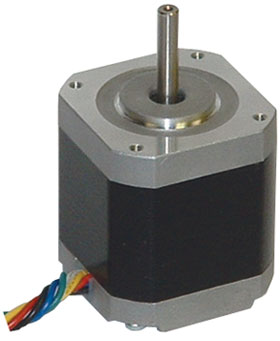

Stepper Motor, NEMA 17, 5.2V

Stepper Motor, NEMA 17, 5.2V
Stock No: 17453 MS
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$15.95


Availibilty: Out of Stock
Call 800-652-6733 for availability date
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
P/N: 42BHH48-100A-24 (42BYGH4806)
COIL: 5.2VDC/1A/5.2 Ohms/5.5mH
TYPE: 4 Phase Uni-Polar 6 lead
STEP ANGLE: 1.8 deg
New step motor, 4.0kg.cm holding torque. 5mm X 24mm steel shaft. 4 corner m3 threaded mtg. holes. 24" leads.
Compatable Driver: Order 17452-MS
L: 2" Body Sq: 1-5/8" WT: .84

Data Sheet

 Product ReviewsClick here to review this item
Good motor, data sheet wiring looks wrong
Motor works good, but I had to check the coils with an Ohm meter and found this to be the correct wiring: Coil A: Black, Common: Yellow, Coil a: Green, Coil B: Red, Common: White, Coil b: Blue
