Sound Level Indicator

Sound Level Indicator

33596-LARGE.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 33596 MI
 Review Average:
 Number of Reviews: 3
 View ReviewsReview this item
$5.95


Availibilty: In Stock   Units: 133
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description

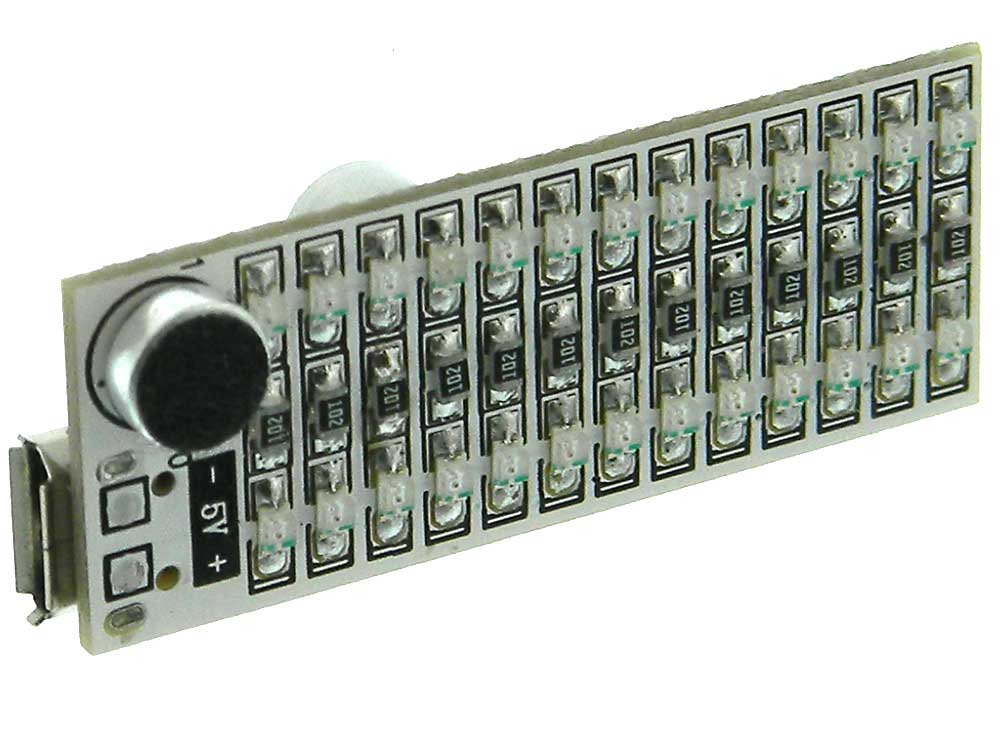

Small, USB Powered (5V), Ambient sound level indicator module.
Built in Mike, micro-controller, 26 (2X13) Red LEDs. Adjustable sensitivity. 5V powered from a USB micro B connector.
Note: this is a level indicator Not a calibrated VU meter.
LEDs light in pairs.
L: 1-5/8” W: 5/8” H: 3/8” WT: .01

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)


 Product ReviewsClick here to review this item
Verified Purchase
Fast shipping. 5 stars *****
ebay

SCADATECH
visually appealing display, would like to know what max operating voltage is

13 segment level indicator
I checked the thresholds by inputting mv of DC into pin 16 of the uP. At most sensitive setting, needed 80mv to solidly light the 1st LEDs, then 20mv more for each step. Sensitivity 2 required 2 times the mv, sensitivity 3 required 3 times the mv, etc. The mic had a 3 transistor amplifier to boost the audio to a higher level. True, this is not a DB meter, would work well to indicate the relative volume of a PA system. Soft speakers could get a visual feedback of their softness, and speak or sing louder so everyone could hear. I used 7of these to monitor surround sound speakers. I hope they get more in stock soon.
- RogerofLisle, IL
