Sensor Board, AC Volts, 100Amps, 22KWatts NO DATA Available

Sensor Board,  AC Volts, 100Amps, 22KWatts NO DATA Available

32544-large.jpg  360-3D.jpg
Stock No: 32544 ME
Be the first to review this item

Availibilty: In Stock   Units: 30

Email this to a friend

 Detailed Description

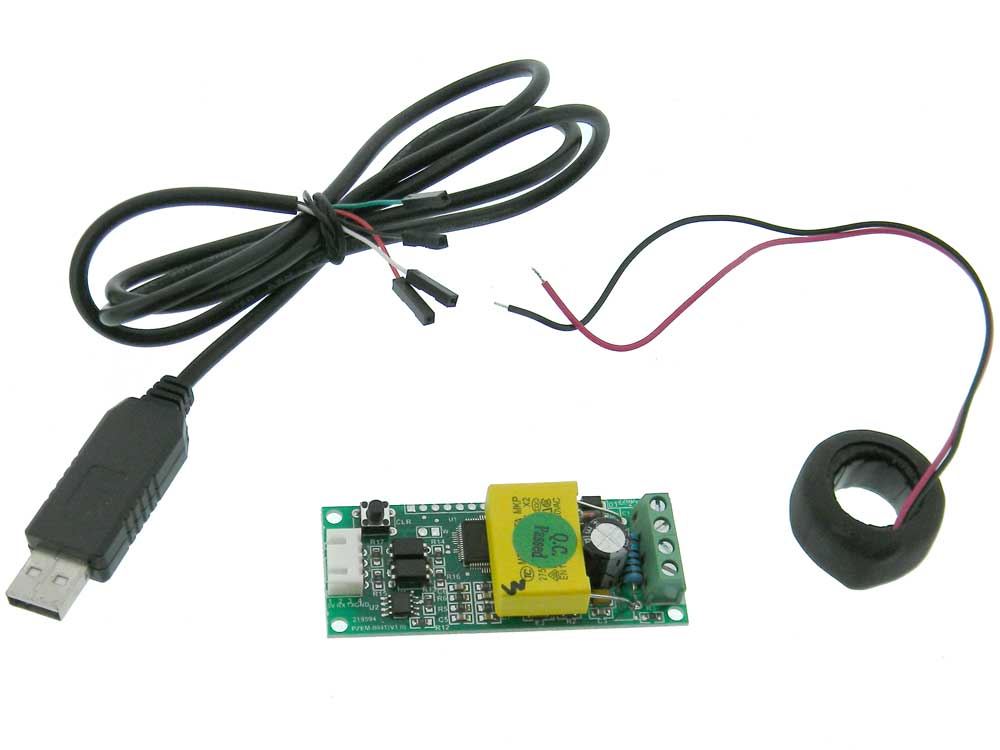

Sensor board that measures:AC Volts, Amps, Watts, Watt hours.
Over Power Alarm: Setting this requires connection to computer
Power: 80-260VAC
Input Voltage: 80-260VAC
Resolution: 0.1V
Input Range Amps: 0-100A
Resolution: Amps: .01
Watts: 0-22000max
Resolution: <10KW= 1W, >10KW=10W
Energy Used: 0-9999KWh
Resolution: <10KWh=1Wh, 10-100KW=10Wh,
100-1000KWh= 100Wh, 1000KWh-9999KWh= 1KWh
Accuracy: +-1% +-1LSD
Terminal Strip for CT & Power Connections
Supplied External Current Transformer can be mounted remotely.
Header Connector fot TTL Data Output
Includes: 100A CT
TTL to USB Smart Conversion Cable
NOTE: This is a sensor board that connects to your computer.
You must provide your own software for Data display.
Data & Commands are in Hex

W: " H: " D: WT: .02
