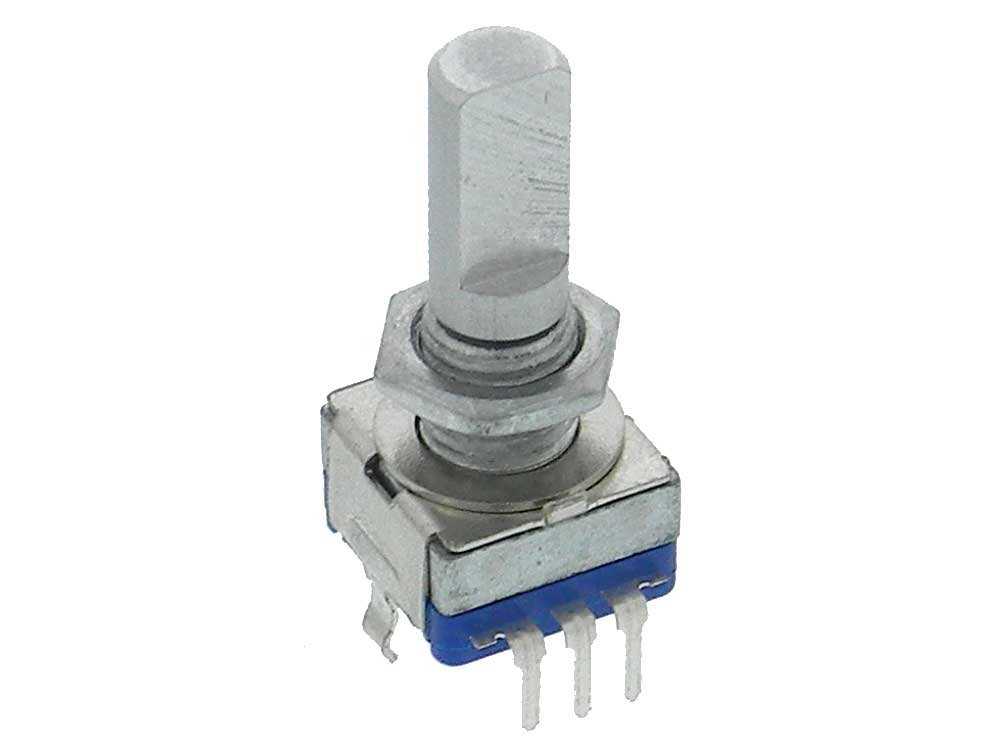

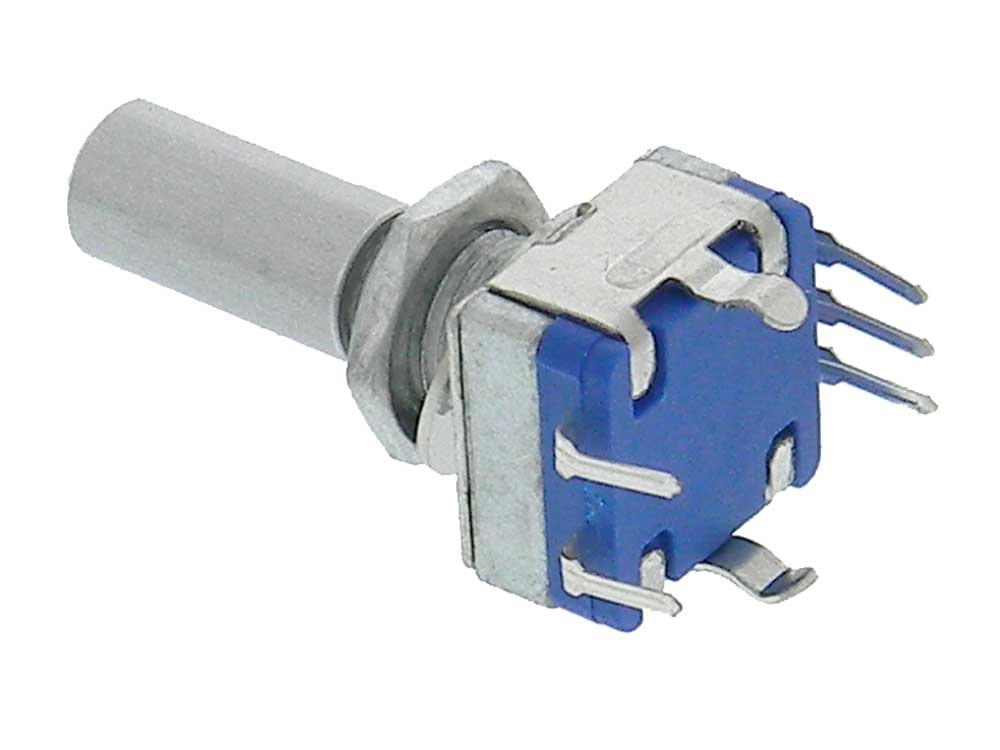

Rotary Encoder with Pushbutton Switch

Rotary Encoder with Pushbutton Switch

30403-large.jpg  30403-1.jpg
Stock No: 30403 SW
Be the first to review this item

Availibilty: In Stock   Units: 97

Email this to a friend

 Detailed Description
Continuous rotation encoder with 20 detents/360deg. and a SPST-NO pushbutton switch. Uses 2 bit Gray coding on the output of encoder to provide direction and pulse. Used as adjustment controls in radios, tv, etc. 6mm dia. X 12mm D haft. 3 pins encoder output, 2 pins for switch. 11x13mm x 30mm body size.
Encoder rated: 10mA@5VDC. 30K rotations
Switch rated: 10mA@5VDC. 20K operations
W: 11mm L: 13mm H: 30mmO/A WT: .011

View PDF Data Sheet
