Push Button Switch, DPDT,Alternate Action

Push Button Switch, DPDT,Alternate Action

32803-large.jpg  32803-1.jpg
Stock No: 32803 SW

Be the first to review this item
$0.25
Special Pricing
 Buy 10  for $0.20 each


Availibilty: In Stock   Units: 2365
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
Action: DPDT
Contacts: 0.1A/12VDC,0.5A/250VAC
LED: Vf=<2V Vr=5Vmax If=20mA max

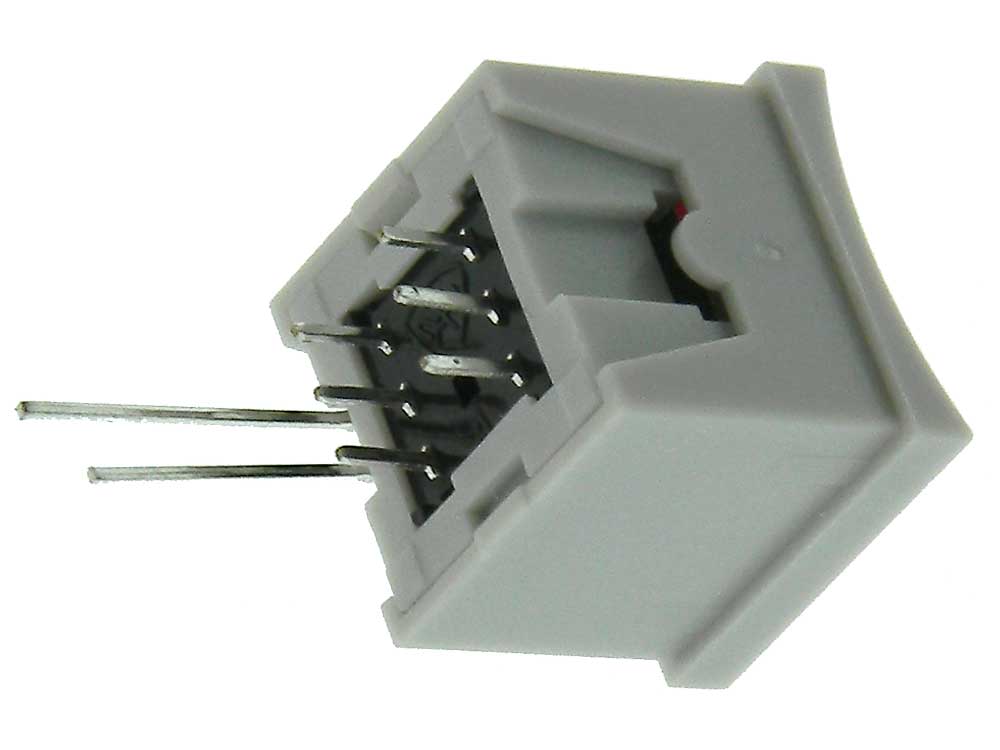

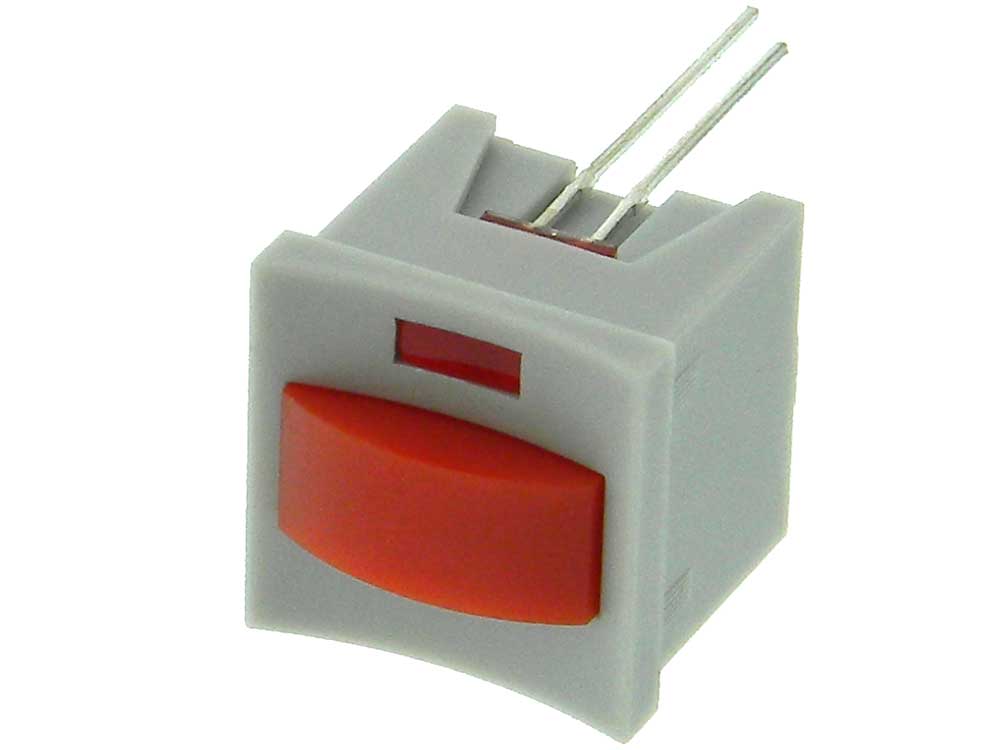

Snap-In or P.C. mount alternate action (Push ON/Push OFF) pushbutton switch with a Red LED indicator. .02 Ohm contact resistance max. ~250gm activation force.
LED requires a series resistor to limit current to <20mA
Panel Cutout: 14mm Sq.
SQ: 15.2mm H: 16mm (Body) WT: .007
