Portable Digital Storage Ocilloscope. 1 Channel

Portable Digital Storage Ocilloscope. 1 Channel

33207-large.jpg  360-3D.jpg
Stock No: 33207 TE

Be the first to review this item
$79.95


Availibilty: In Stock   Units: 1
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet

View PDF Data Sheet

View PDF Data Sheet

View PDF Data Sheet

Bare Board-Open Frame

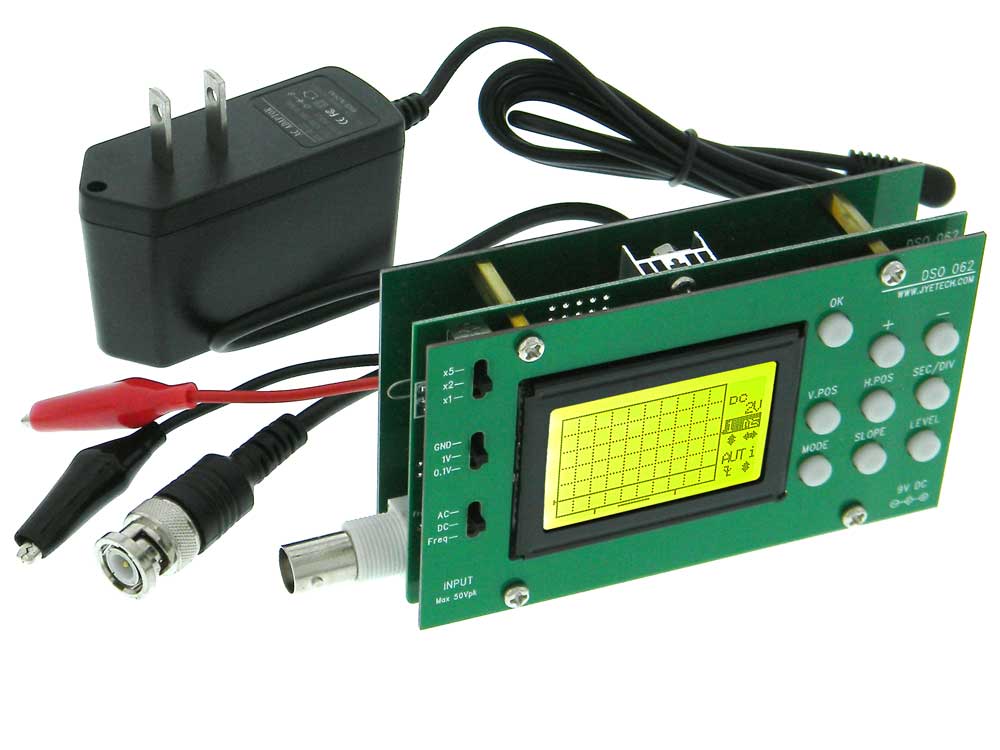

Simple & Compact, entry-level Digital Storage Oscilloscope based on the AVR microcontroller platform (ATmega64). Best for waveforms below 500KHz. Designed for electronic enthusiasts & students. Suitable for beginners to master the use of oscilloscopes.
Power: 8-12V ~200mA
Screen: 1.7 X 1.18 128X63 pixel Back lighted LCD
Equivalent sampling rate: 20Ms/sec
Real-time sampling rate: 2Ms/sec max
Resolution: 8Bit
Sample Record Length: 256 bytes
Analog Bandwidth: DC-1MHz
Vertical Sensitivity 100mV/Div. to 5V/Div. (1-2-5 sequence)
Adjustable Vertical position with display indication
Input impedance: 1M
Maximum input voltage: 1 X probe: 50VpK
10 X probe:500V
Coupling: DC/AC
Horizontal: 0.2s/Div to 10min/Div (1-2-5 sequence)
Trigger Modes: Automatic, Normal and one-shot
Trigger Source: Internal/External
Rising or falling edge triggering
Adjustable Trigger level with display indication
Waveform before the trigger can be observed (negative delay)
Trigger output: Connect multiple scopes to achieve multi-channel measurements, or use to synchronize other instruments.
Hold function to freeze Waveform display
Internal 500Hz/5Vpp test signal
Stores up to 6 groups of waveforms, Easy recall
Retains stored measurements
The display screen can be sent to the PC as a graphic file via the serial port
Frequency meter can be measured frequency up to 5MHz
256/512 point FFT function, can analyze the signal spectrum
Includes: Power Supply & 20 BNC to Alligator Clips test cable
L: 5 O/A W: 3-5/8 H: 1-1/8 WT: .5
