LED Bargraph Display, 10 Green LED,

LED Bargraph Display, 10 Green LED,

32326-large.jpg  32326-1.jpg
Stock No: 32326 OP
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
Special Pricing
 Buy 10  for $1.49 each

Availibilty: In Stock   Units: 181

Email this to a friend

 Detailed Description

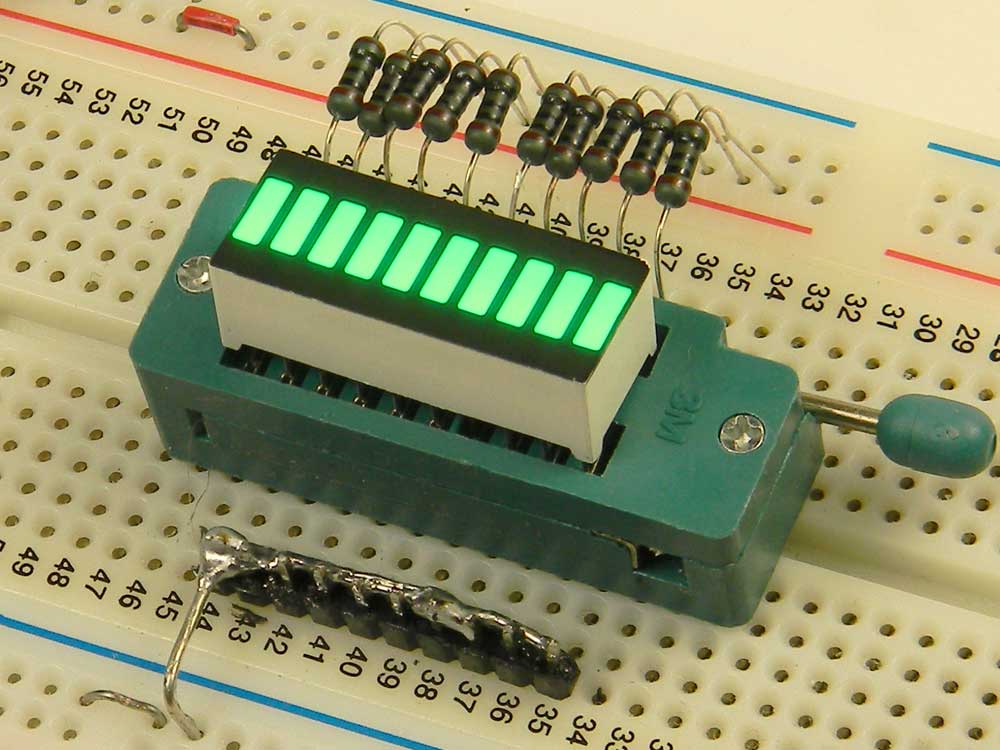

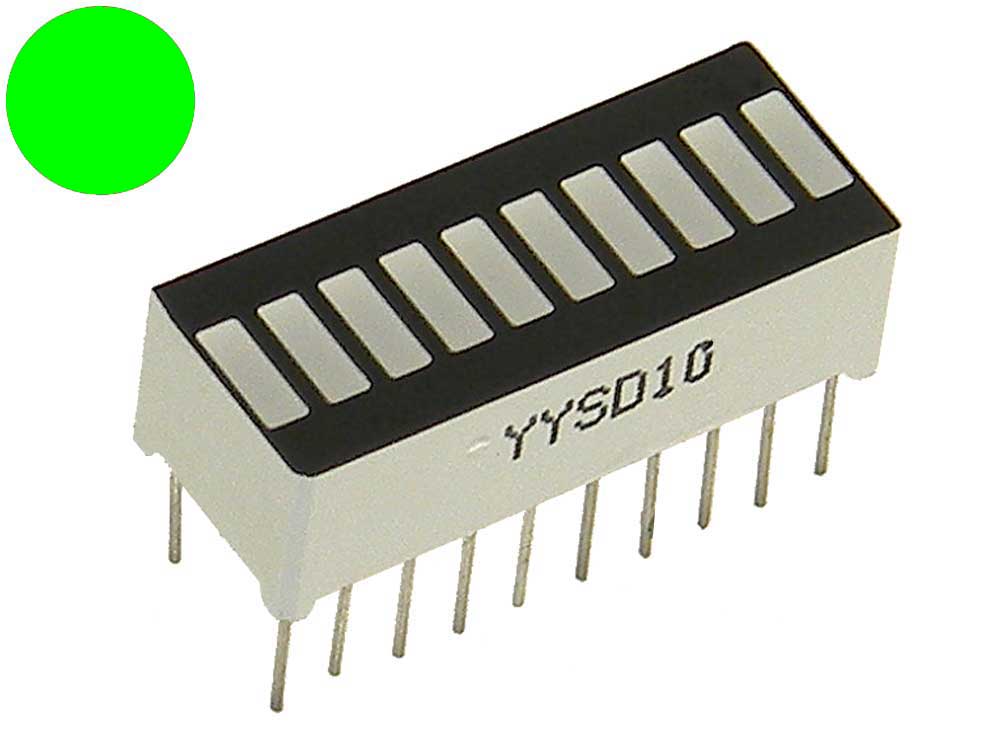

10 Segment Pure Green LED Bargraph display. 0.1in lead pitch X 0.3in Wide.
End stackable for larger displays. All LEDs are independent.
Forward Current: 20ma
Forward Voltage Drop: ~2VDC
Max Reverse Voltage: 5VDC
Pins 1-10: Cathodes
Pins 11-20: Anodes
L: 25.4mm W: 10mm H: 8mm O/A WT: .004

 Product ReviewsClick here to review this item
Super bright and saturated
These are extra bright, saturated and evenly lit bar graph displays. About 4 or 5 times as bright as an SSA-LXB10GW-GF/LP which is rated at 8mcd. The color is neon green. These are polarized reversed from the part number above where pin 1 is a cathode vs the anode typical of these displays, however that just means you put them in backwards.
- John Taylor, CA
