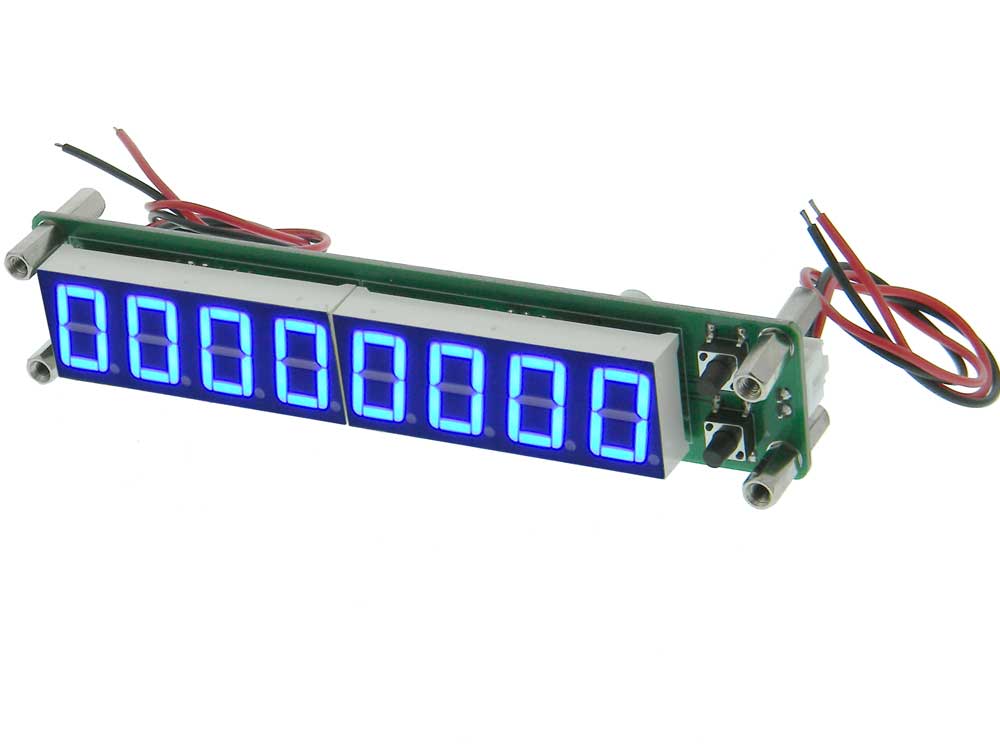

Frequency Meter. 8Digit. 100KHz-2.4Ghz

Frequency Meter. 8Digit. 100KHz-2.4Ghz

34112-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 34112 TE
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item

Availibilty: In Stock   Units: 117

Email this to a friend

 Detailed Description
View PDF Data Sheet

PLJ-8LED is a cost-effective microprocessor based, eight-digit digital frequency display. It can be used for conventional frequency measurement. Features: small size and reliable performance.
Settings are automatically saved
Processor: Microchip PIC16F648A
Power: 9V ~ 15VDC (with reverse polarity protection )
Operating current up to 160 mA
Eight 0.56in. High brightness Blue LED Display
8 Display Brightness settings (factory set to the highest)
Zero auto blanking,
2.5ppm Voltage Controlled TCXO Frequency reference
Unique gate control & accurate time algorithm (non-timed interrupt mode).
Multi Gate time:
0.01 seconds
0.1 seconds
1.0 seconds
Measurement Input:
High impedance
Three Measurement modes (Low, High & Automatic)
Low Frequency Mode
Range: 0.1 MHz ~ 60 MHz
Accuracy: ± 100Hz (0.01sec. Gate)
± 10Hz (0.1 sec. Gate)
± 1Hz (1.0 sec. Gate)
1 MHz to 60 MHz: better than 60 mVPP
High Frequency Mode
Range: 20 MHz to 2.4 GHz
Accuracy: ± 6400 Hz (0.01sec. Gate)
± 640Hz (0.1sec. Gate)
± 64Hz (1.0 sec. Gate)
Sensitivity : 20 MHz ~ 30 MHz: Better than 100mVPP
30 MHz ~ 60 MHz: Better than 50mVPP
60 MHz ~ 2.4GHz: Not tested
Auto Mode
Automatically selects the High or Low Mode according to the input signal frequency, The crossover frequency is 60 MHz.
DC IN: HX2.54-2P socket
RF IN: HX2.54-2P socket
ICSP: (programming interface) 2.54-6P pin
L: 4-7/8” W:H: 7/8” WT: .12

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)

 Product ReviewsClick here to review this item
I am very pleased with the sensitivity and the performance of this unit! I was very pleasantly surprised to discover that it has an adjustable IF offset, up or down, to allow direct reading of a receiver frequency by monitoring the local oscillator. If only there was a lower cost, smaller, 5-digit version. That would be PERFECT for building into radios!
