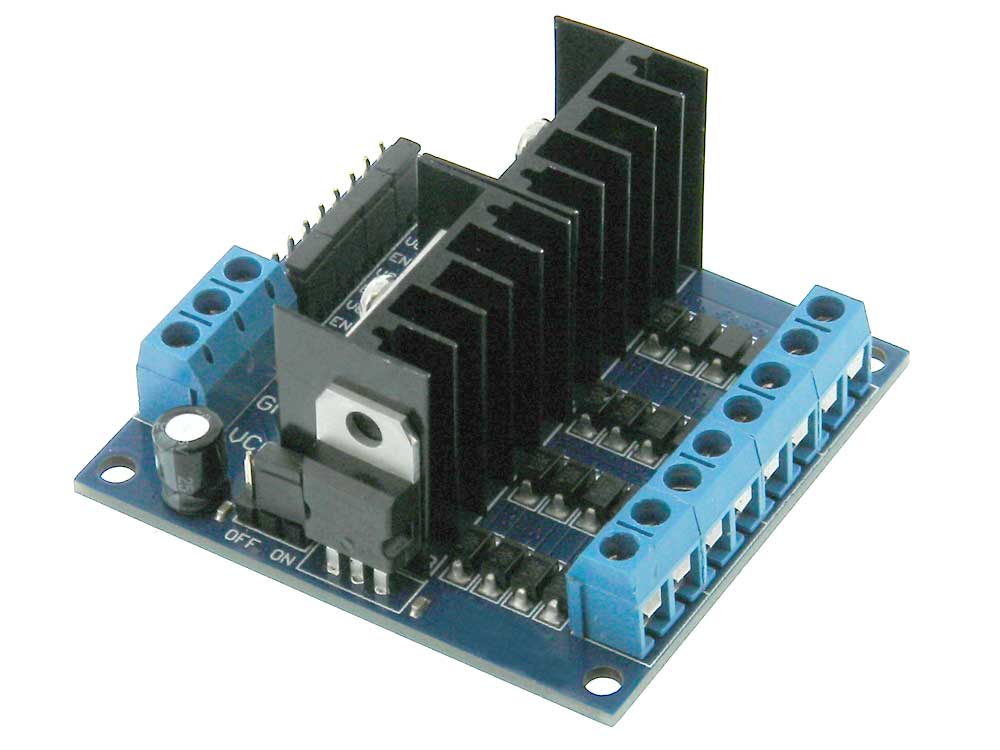

Dual L298N Motor Driver Board

Dual L298N Motor Driver Board

34747-large.jpg  360-3D.jpg
Stock No: 34747 MD

Be the first to review this item
$11.95


Availibilty: In Stock   Units: 44
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet
DATA SHEET


Dual L298N based module can drive four DC motors at the same time. Inputs to control forward, reverse and speed.
Built in +5V, 1A regulator to drive motor(s) with a voltage under 5V/1A or you can select an off board power supply for higher voltage and/or current motors
Power: 5-7VDC input (Internal regulator)
7-35 input (External Power Supply)
Peak Drive: 4A
Inputs: from microcontroller
4 Enables (1/Driver)
8 Logic control (2/Driver)
Vcc & Ground For logic only
Connections: Terminal Strip for Motors
Terminal Strip for Power
0.1 Pitch Header for Inputs
L: 2-1/4" W: 2-1/16" HT: 1-1/4" WT: .1
