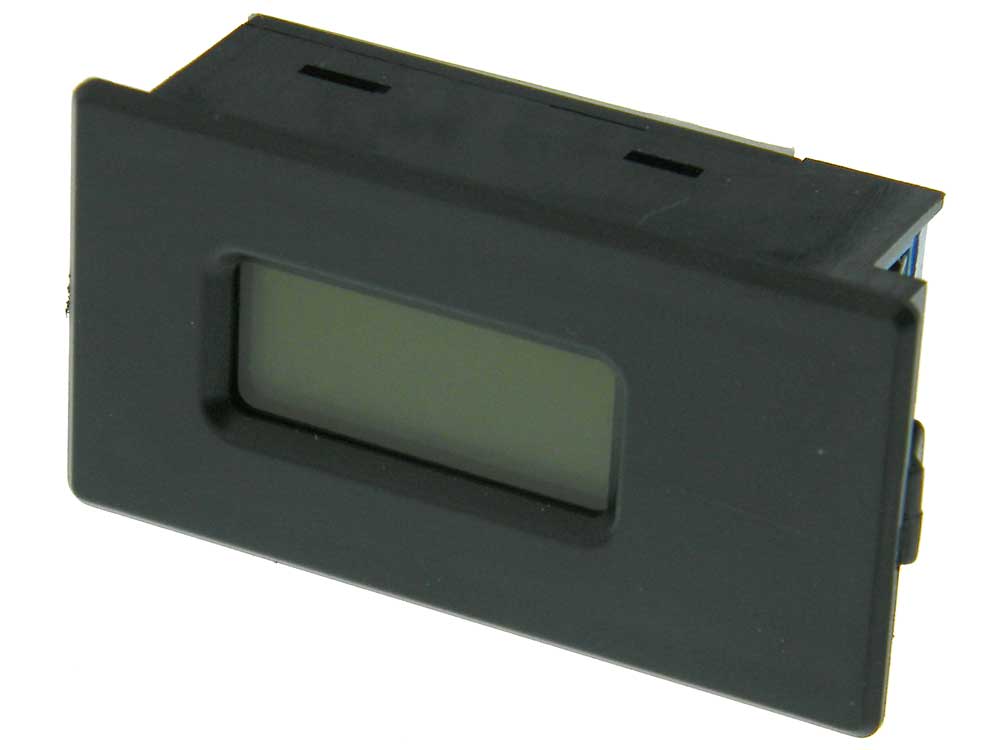

Battery V-A-Load Tester, Li-Ion

Battery V-A-Load Tester, Li-Ion

33522-large.jpg  360-3D.jpg
Stock No: 33522 ME

Be the first to review this item
$8.95


Availibilty: In Stock   Units: 24
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
Snap-in, LCD Meter for testing Li-Ion Batteries.
Displays Volts, Amps, Load Resistance, & Charge level (Bargraph)
Recessed Button controls Backlight and setting of Cutoff Voltage & Full Scale Voltage
Display: 23.5 X 9.75mm LCD
Character Height: 4mm
Input Volts: 2.8-30VDC
Resolution: 0.1V
Accuracy: 2%
Load Current: 0-10.0A
SET BY EXTERNAL LOAD RESISTOR NOT SUPPLIED
Resolution: 0.1A
Accuracy: 2%
Load Resistance: >0-999 ohms
Resolution: <10 ohms: 0.01 ohm
10-100 ohms: 0.1 ohm
100-999 ohms: 1.0 ohm
Charge Level "Fuel Gauge"
Battery Voltage Progammable up to 30V
Full: 5 segments
80%: 4 Segments
60%: 3 Segments
40%: 2 Segments
20%: 1 Segment
<20%: only battery outline displayed
Input/Output Terminal Strip
Cutout: ~49mm X 23mm
W: 51mm H: 27mm D: 17mm WT: .06


View PDF Data Sheet
