Arduino Joystick Shield With Pushbutton Switches

Arduino Joystick Shield With Pushbutton Switches

33331-large.jpg  33331-1.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 33331 MP
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$6.95


Availibilty: Out of Stock
Call 800-652-6733 for availability date
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description

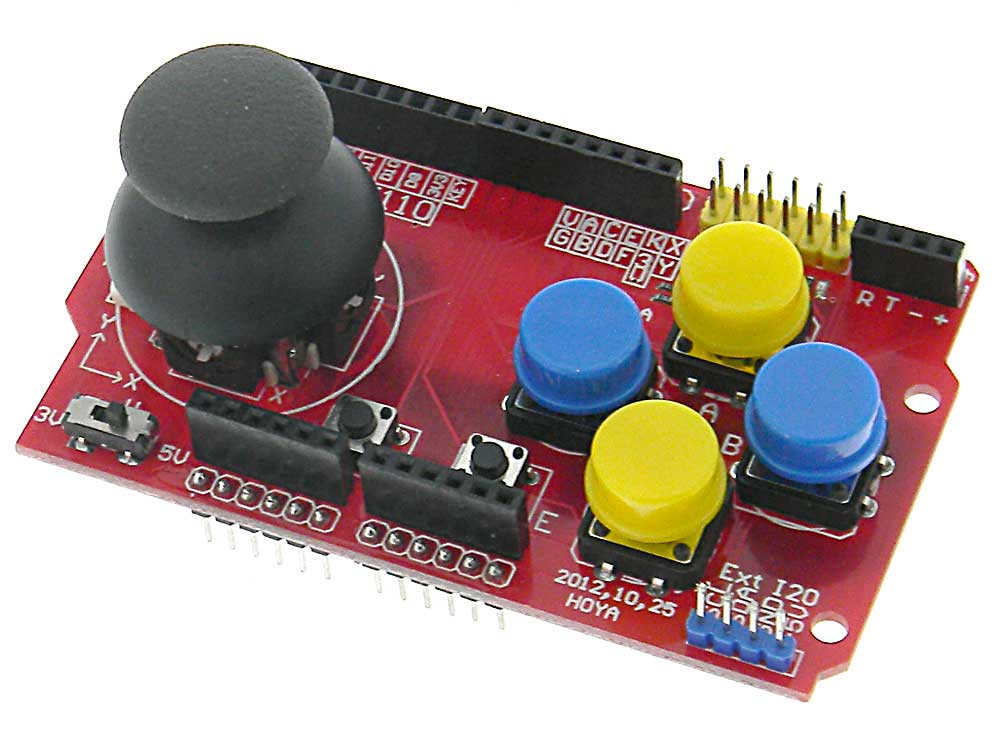

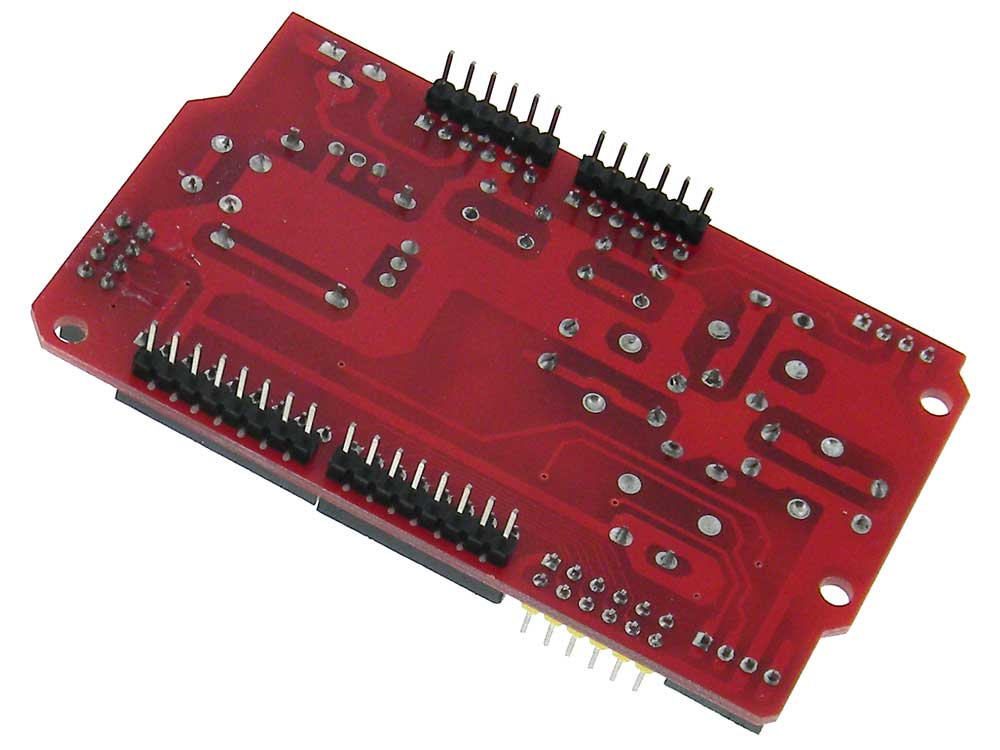

Joystick, Gamepad Shield for Arduino
Shield connects, 4 Large Pushbutton switches, 2 mini P/B switches, two 10K potentiometers connected to the handle lever for X-Y movement and when the handle is pressed in the centered position, a momentary switch “Z” is closed. The Potentiometers are wired as voltage dividers between Gnd. & Vcc. The lever is spring loaded to return to center position at rest. Also provides connections for a Nokia 5110 LCD graphic display, a nRF24L01 wireless module and a Bluetooth module (NONE included.)
L: 3-7/16" W: 2-1/8" H: 1-3/4" O.A. WT: .12

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)


 Product ReviewsClick here to review this item
Very responsive
The buttons and joystick on this unit are very responsive. Ended up using this to make a mini arcade cabinet controller, but the buttons are programmable so you can use them for whatever you want.
