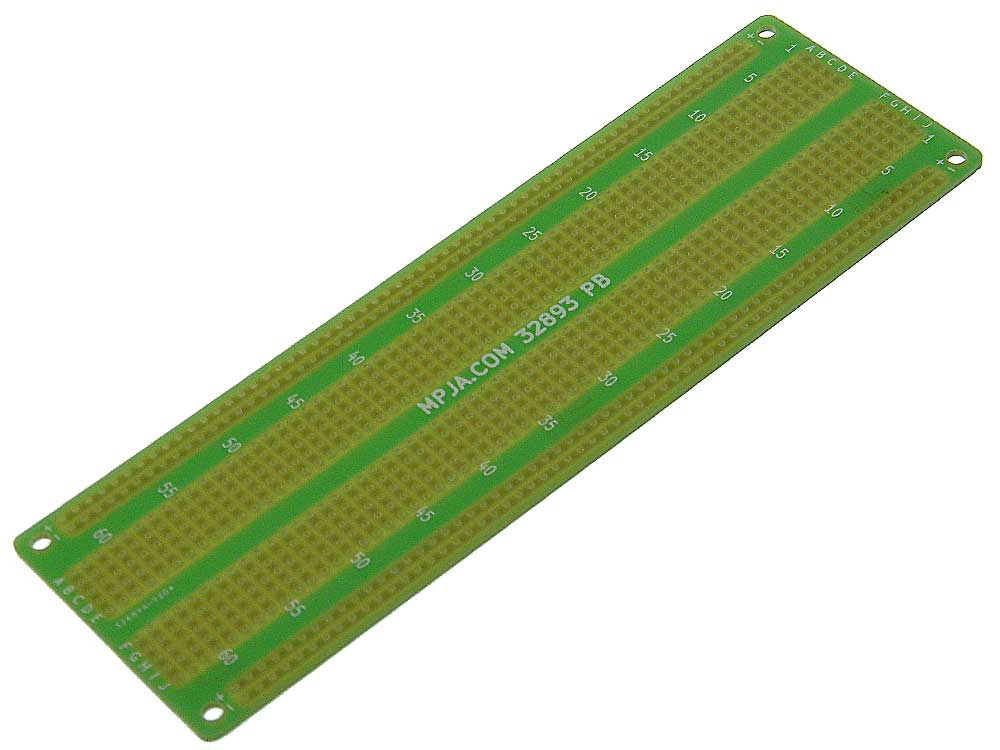

6-1/2" X 2-1/8" DIP IC Protoboard, Single Side FR-4

6-1/2

32893-large.jpg  32893-1.jpg  32893-2.jpg
Stock No: 32893 PB
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$4.95


Availibilty: In Stock   Units: 54
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
Single Sided
.062" FR-4 board

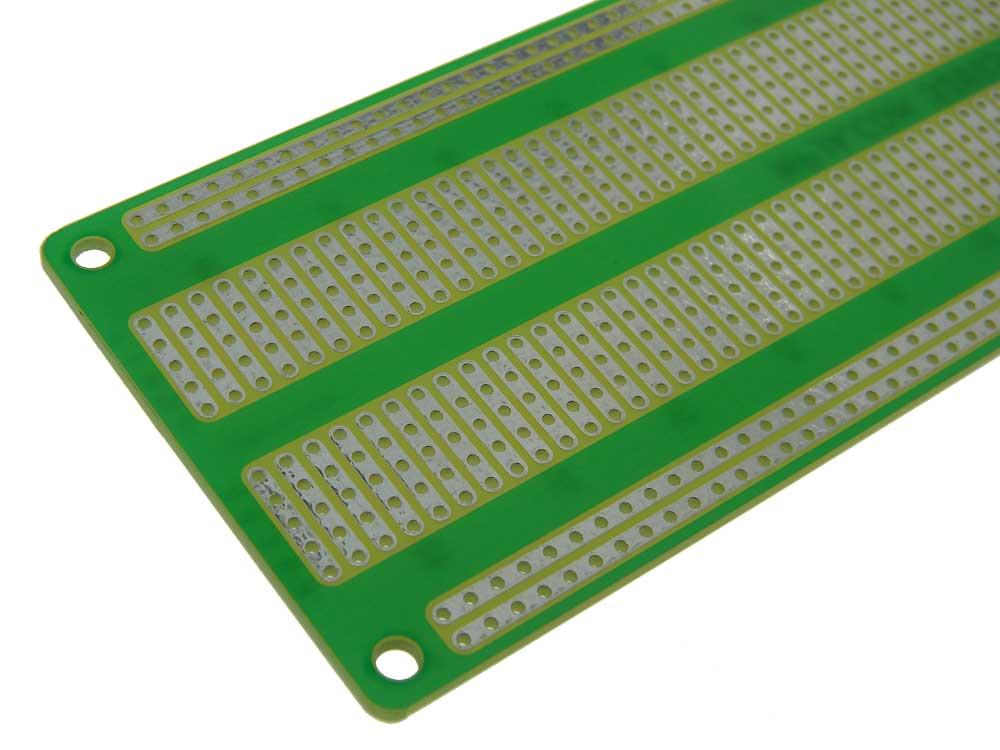

Plated copper pads

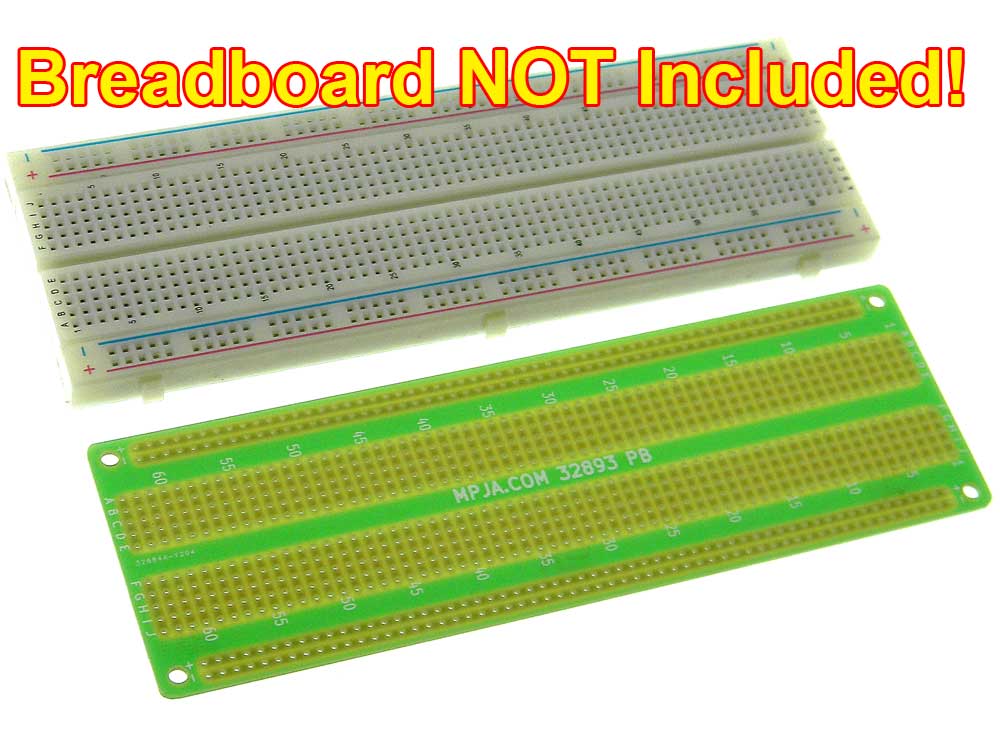

Based on the popular 830 point breadboard. Easily transfer your design to a permanent solder proto board. 2 power strips on the outside edges with 5 connected pads on each side of the 64 rows DIP (0.10") spaced holes
L: 6-1/2" (165mm) W: 2-1/8" (54mm) WT: .06

 Product ReviewsClick here to review this item
Easiest proto board Ive ever worked with.
What a great idea! Making this like a bread board means power busses on each side of the board. I was using an LED array on a bread board for a red light source when positioning photo resist boards in the exposure frame but it was bulky, heavy and had to be propped up. Not real easy to use. Got one of these boards and in about 20 minutes I had a 25 LED array that is light enough to be held above the frame with a set of Helping Hands. Cant beat it for simple designs. I plan on picking up several more next time I stop in the store because they are just to handy to be without.
- Gary, FL
