4 Channel I/R Obstacle Sensor Module for Arduino

4 Channel I/R Obstacle Sensor Module for Arduino

33025-large.jpg  360-3D.jpg
Stock No: 33025 MP

Be the first to review this item
$7.95


Availibilty: In Stock   Units: 26
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description

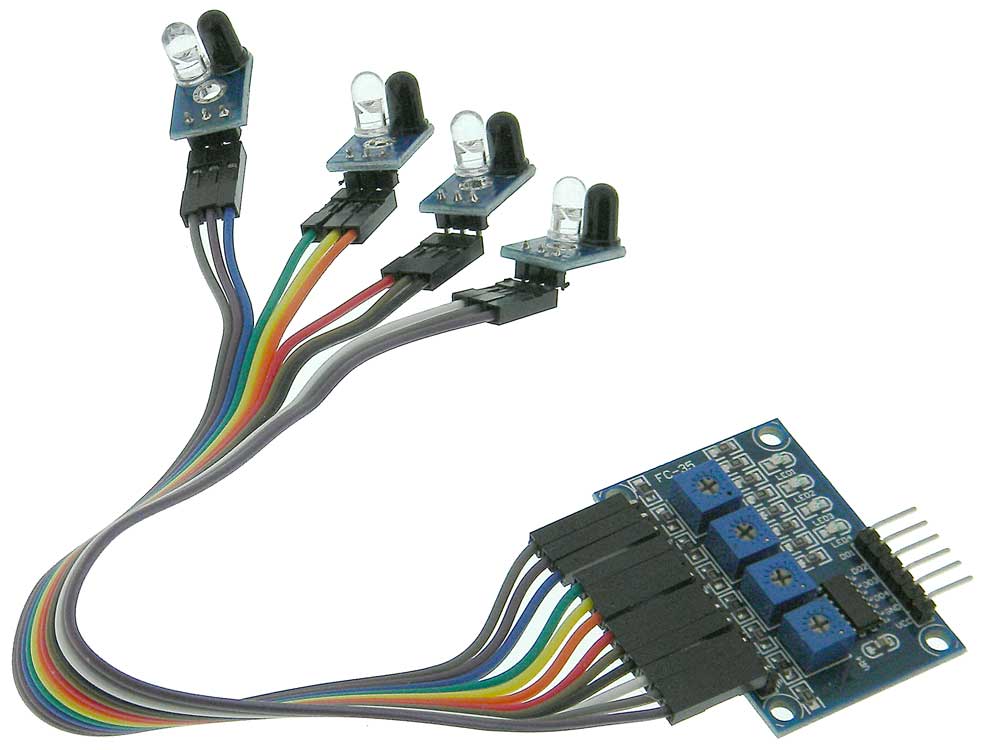

Quad Reflective Obstacle Sensor for Microcontrollers
Each of the 4 sensor boards has a I/R LED and a I/R detecting photo transistor. Sensor boards connect to the control board containing a LM339 voltage comparator IC and trigger level adjustment pots. The detection distance is a function of target reflectivity and shape. Each circuit has a LED indicator turns on when an object is detected (Output switches LOW). The outputs can be connected directly to microcontroller ports or add a driver transistors to the output, & it could switch a relay or other loads exceeding 20mA.
Power: 3.3V to 5V
Supply Current < 1mA (LEDs off)
LEDs: 4: 1 Red for each channel for Detection
Output: Digital , TTL Current sink 20mA, 10K Pull-up
Connections: .1in. Pitch Headers.
Includes: 4 Sensor Boards, 1Control Board, 7in. Jumpers
Control L: 2-3/4 W: 1-3/16 H: 3/8
Sensor L: 5/8 W: 7/16 H: 5/8
Total Ship WT: .06


View PDF Data Sheet
